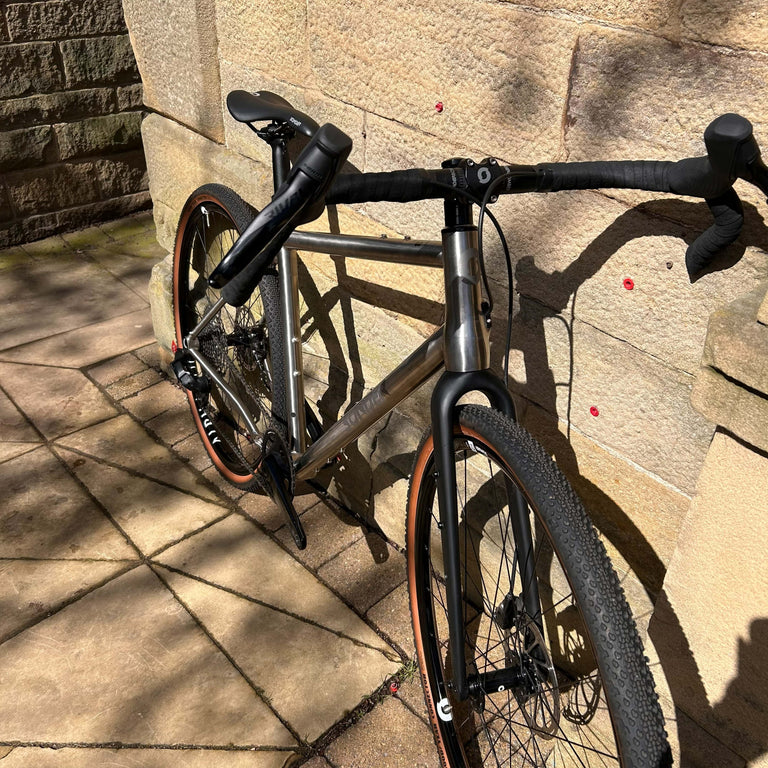

Camino Ti / Medium Award-winning titanium gravel bike
£2,649 £3,349
Details
Sharing the DNA of a cyclocross, gravel and adventure race bike, the geometry has been relaxed for for long day comfort, Camino is designed to get you out there exploring the world.
At a glance

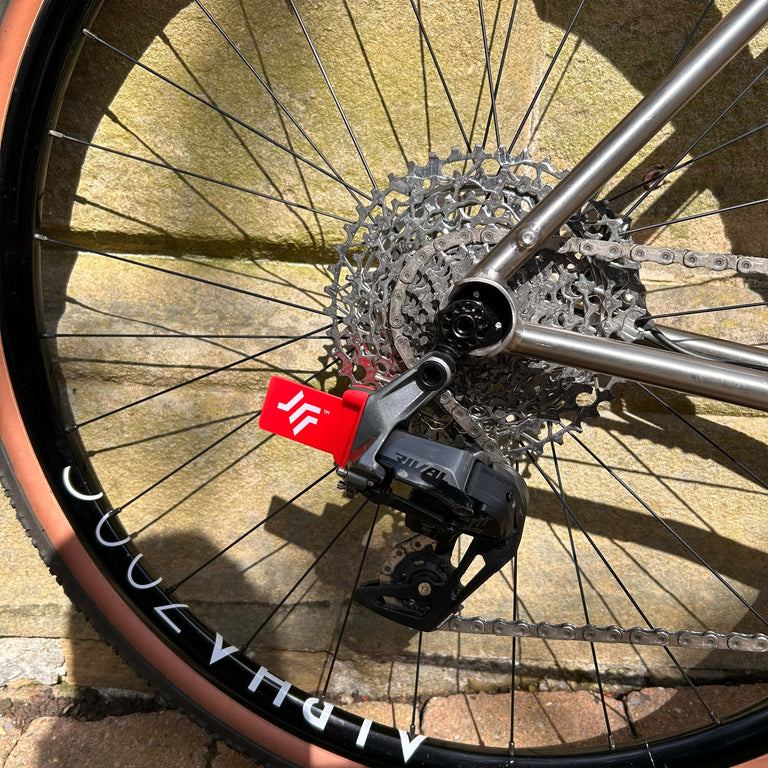

- SRAM® Rival AXS XPLR 13-speed groupset
- Camino Carbon fork
- Sonder Alpha 700c UK made wheelset
- Hand-welded titanium frame
We've developed the Camino to give you the perfect mix of speed and confidence. Light, zippy titanium with a slack head angle and longer wheelbase, Camino excels both loaded and unloaded, absorbing imperfections in surfaces you ride.

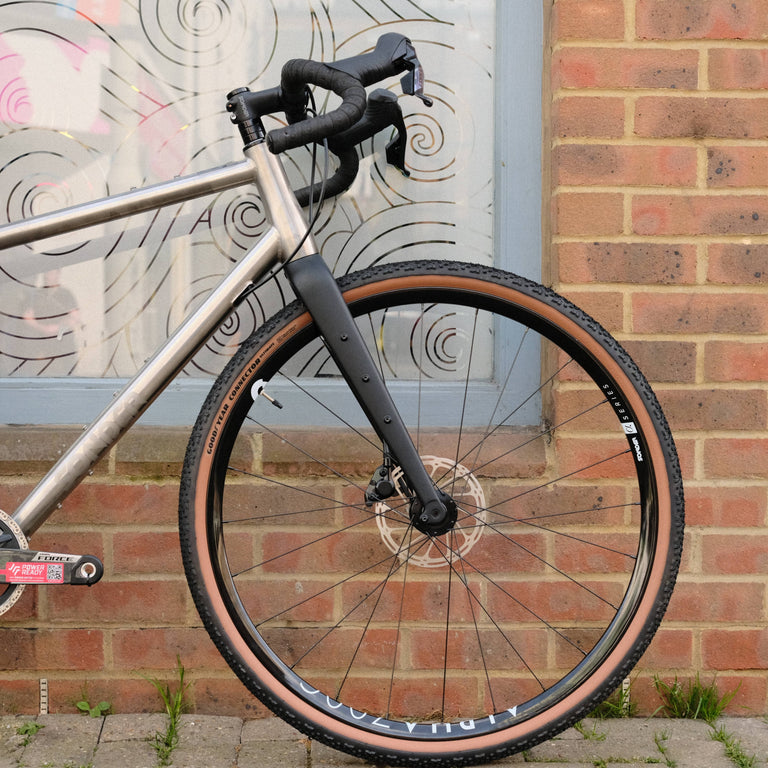

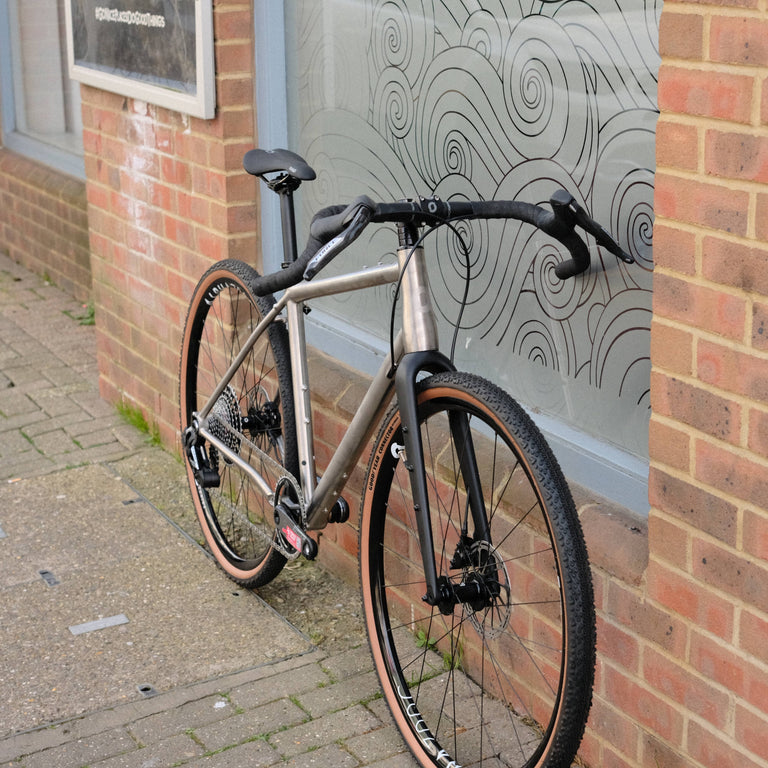

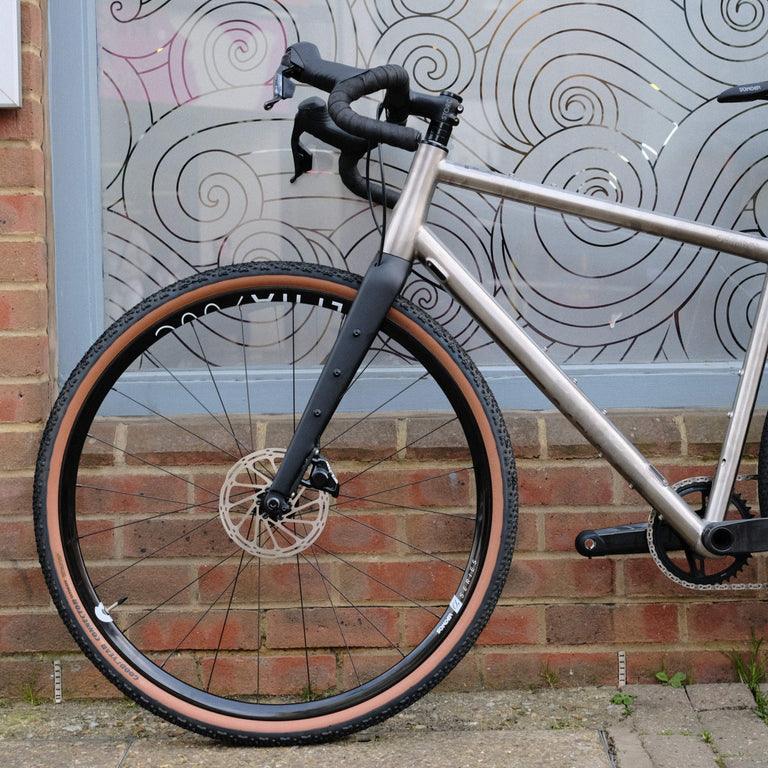

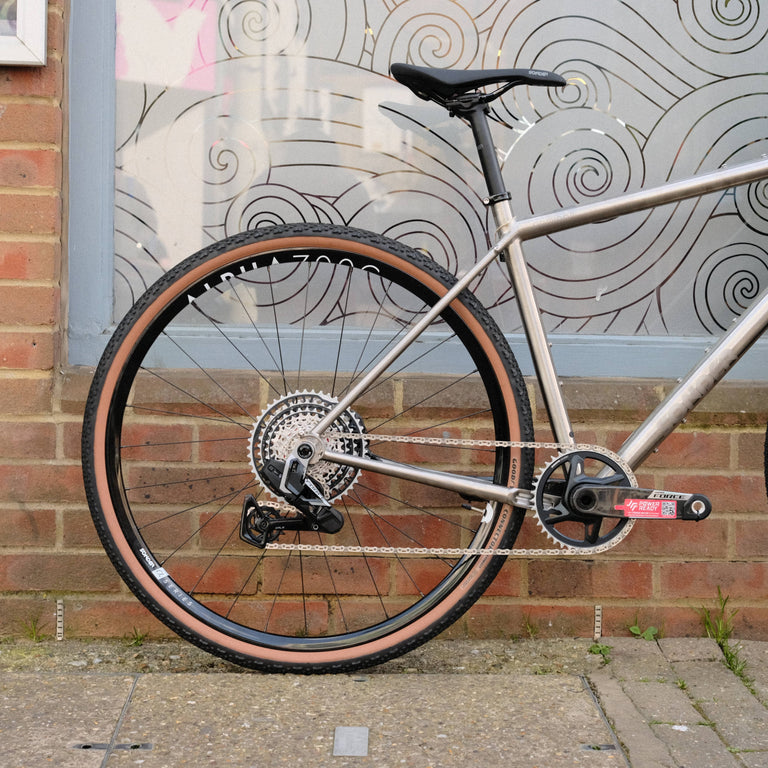

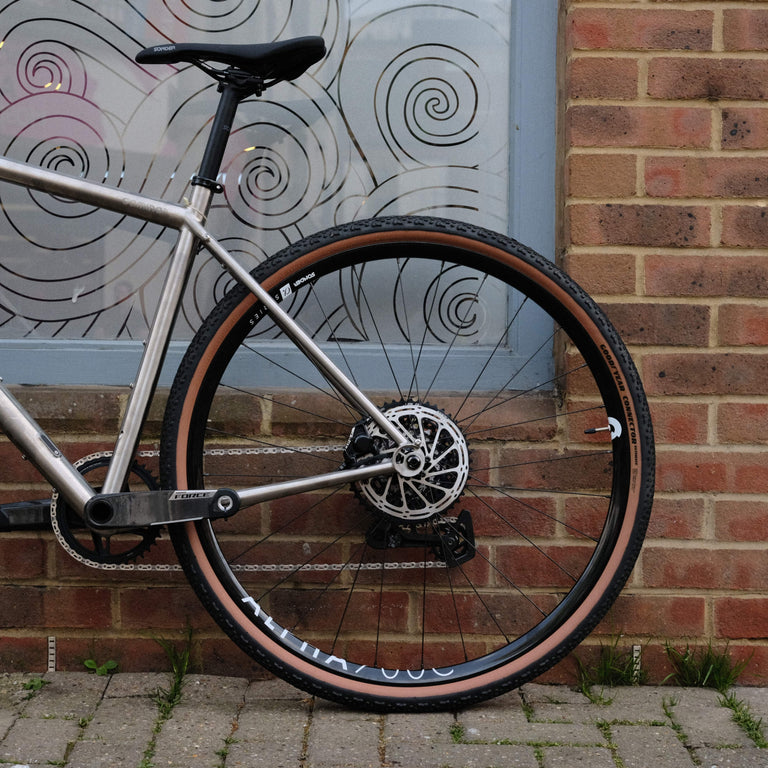

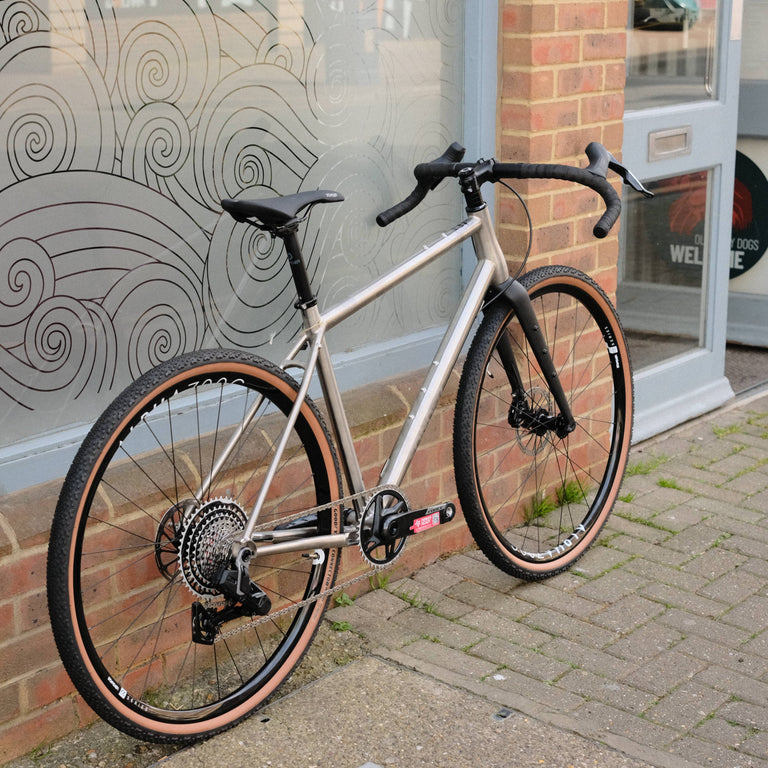

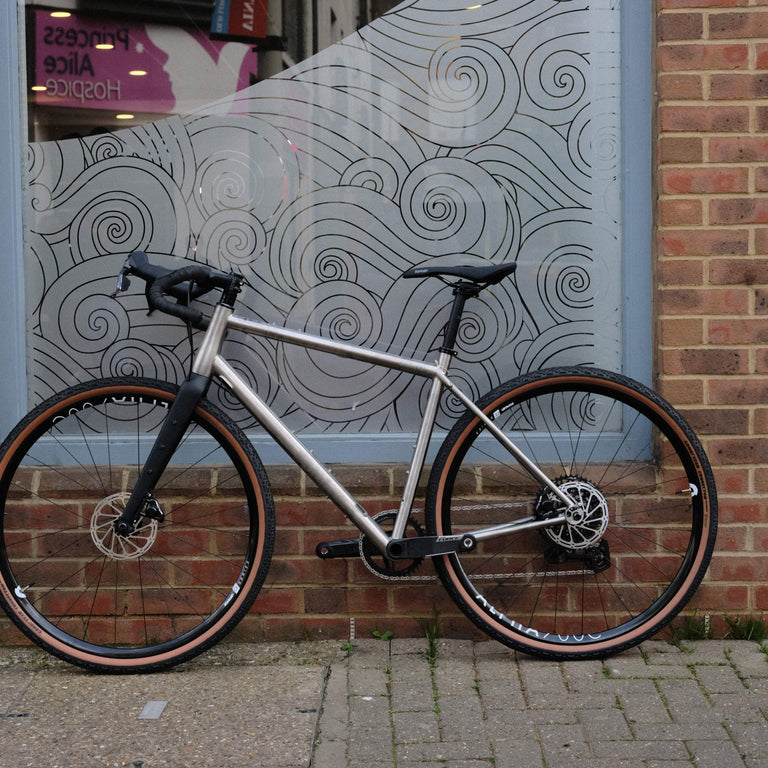

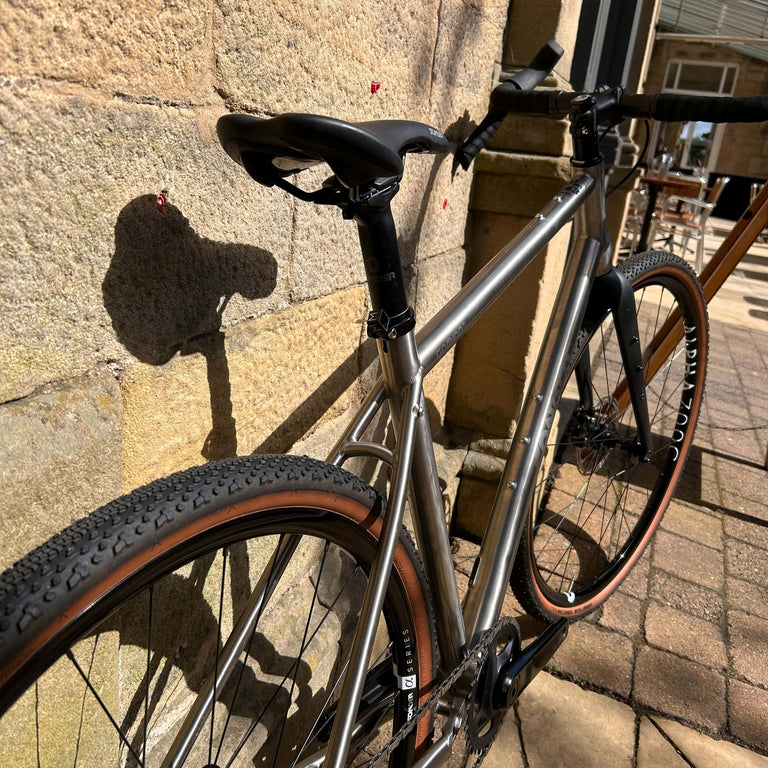

**Lead image represents the bike for sale, please see store pics for the actual bike.
*Demo bikes are not supplied with pedals.
Features
Gravel geometry
Tuned for long days with trail capabilty at its heart. The long wheelbase and 69° head angle make for a stable and confident ride, even over rough trails. Every size has been tuned for a 50-70mm stem so every rider gets direct and responsive steering.
Wide open tyre clearance
The Camino swallows huge tyres. Ride 700c x 50mm or 650b x 2.1” - that’s most mountain bike tyres covered.
Carbon monocoque fork
Lightweight, stiff and responsive. The Camino's full carbon fork gives direct steering and smooth braking. It's completely adventure ready with mudguard and rack mounts.
Full rack, guard and expedition mounts
Take anything anywhere. The Camino has mounts for everything you need - panniers, guards and extra mounts for adding cages to the forks. The downtube has triple cage mounts so you can set your bottle to be at a height for easy reach or lower to accommodate larger frame bags.
Internal Cable Routing
Clean lines and tidy cables thanks to fully guided internal routing. The Camino also has routing for a dropper seatpost.
Bottom bracket for the real world
A BSA threaded bottom bracket is super-durable and readily available, wherever you find yourself. So it’s not a pain in the bottom bracket!
Geometry and Sizing
Sizing
Generally we recommend: X-Small: Riders between 4ft 10in and 5ft 3in (147-160cm) Small: Riders between 5ft 2in and 5ft 7in (158-173cm) Medium: Riders between 5ft 6in and 5ft 10in (170-177cm) Large: Riders between 5ft 9in and 6ft 2in (175-187cm) X-Large: Riders 6ft 2in and over (187cm +)
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| ST - Seat tube | 430 | 460 | 490 | 520 | 550 |
| TT - Top tube | 521.8 | 536.4 | 562.1 | 592.4 | 625.3 |
| HT - Head tube | 130 | 150 | 170 | 190 | 205 |
| HA - Head angle | 69 | 69 | 69 | 69 | 69 |
| SA - Seat angle | 74.5 | 74.5 | 74 | 74 | 73 |
| CS - Chainstay | 434 | 434 | 434 | 434 | 434 |
| BB - BB drop | 73 | 73 | 73 | 73 | 73 |
| FO - Fork offset | 50 | 50 | 50 | 50 | 50 |
| WB - Wheelbase | 1034.1 | 1050.8 | 1073 | 1105.2 | 1131 |
| SO - Stand over | 695.4 | 765.9 | 773 | 812.4 | 815 |
| RE - Reach | 370 | 380 | 395 | 420 | 440 |
| SK - Stack | 545.2 | 563.9 | 582.6 | 601.2 | 615 |
Frame Spec
Lightweight, durable and strong aluminium gravel bike frame.
| Weight: S: 1.88 kg; M: 1.98 kg; L: 2.0 kg; XL: 2.05 kg; (Plus fork: 0.5kg) |
|---|
| 6061 Aluminium |
| One piece carbon monocoque fork (Cage mounts on carbon fork designed for 2kg maximum load) |
| Seatpost diameter: 27.2mm |
| Seat tube OD 31.8mm |
| Headset: IS42/28.6 | IS52/40 |
| Disk brake only |
| Mud guard and pannier rack mounts |
| 700 x 50mm or 650b x 2.2” tyre clearance |
| 12mm bolt through axles at both ends |
