    • Sale

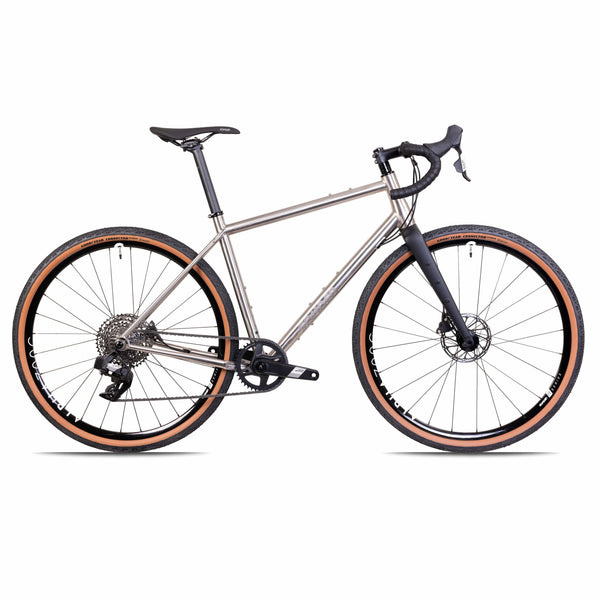

    Camino Ti Apex1 AXS XPLR

    Award-winning gravel bike

    £2,599 £2,899

    or from £112 /month

    1

    Select Options

    2

    Customize

    3

    Select Accessories

    Reset

    Off-road. On-road. Everything in between. The award-winning titanium Camino will take you there. With SRAM Apex AXS electric groupset and class-leading components.
    Buy Now. Be Riding in 5 days.

    1

    Select Options

    Edit

    • Size

      Frame Availability; Small & X-Large - In Stock Now. Medium & Large- 18/09/2023

    • Size:

    2

    Customize

    Edit

    Every Sonder bike is built to order so tell us exactly how you want it. Make any changes you want from the standard build and when you're done, just hit “Add to Bag” at the bottom of the page.

    Handlebar Tape

    Sonder Reels
    Sonder Reels Black

    +£0.00

    grepp ultimate grey - closed
    Grepp Handlebar Tape Ultimate Gray

    +£29.99 +£19.99

    grepp olivine - closed
    Grepp Handlebar Tape Olivine

    +£29.99 +£19.99

    Brooks Cambium Rubber Bar Tape [OEM]
    Brooks Cambium Rubber Bar Tape Black

    +£39.99 +£32.99

    Brooks Cambium Rubber Bar Tape [OEM]
    Brooks Cambium Rubber Bar Tape Natural

    +£39.99 +£32.99

    Brooks Cambium Rubber Bar Tape [OEM] / Orange
    Brooks Cambium Rubber Bar Tape / Orange

    +£39.99 +£32.99

    Handlebar

    sonder bomber flared drop bar handlebar
    Sonder Bomber 56cm

    +£0.00

    sonder bomber flared drop bar handlebar
    Sonder Bomber 56cm

    +£0.00

    Sonder Hurricane [OEM]
    Sonder Hurricane 400mm

    +£0.00

    Sonder Hurricane [OEM]
    Sonder Hurricane 420mm

    +£0.00

    Sonder Hurricane [OEM]
    Sonder Hurricane 440mm

    +£0.00

    Saddle

    Sonder Abode [OEM]
    Sonder Abode Black / 138

    +£0.00

    Sonder Zone [OEM]
    Sonder Zone 133 / Black

    +£34.99 +£29.99

    Sonder Zone [OEM]
    Sonder Zone 152 / Black

    +£34.99 +£29.99

    Sonder Kura [OEM]
    Sonder Kura

    +£47.99 +£34.99

    Brooks Cambium C17 Saddle [OEM] / All Weather / Black
    Brooks Cambium C17 Saddle / All Weather / Black

    +£114.99 +£94.99

    Brooks B17 Saddle
    Brooks B17 Saddle Standard / Black

    +£134.99 +£109.99

    Seatpost

    Sonder Seatpost [OEM] /
    Sonder Seatpost / 31.6mm / 400mm

    +£0.00

    Sonder Seatpost [OEM] /
    Sonder Seatpost / 31.6mm / 400mm

    +£0.00

    X-Fusion Manic Drop Seatpost and Lever
    X-Fusion Manic Drop Seatpost and Lever 31.6mm / 125mm

    +£119.99

    Sonder Ingot
    Sonder Ingot 31.6mm Inline

    +£179.99 +£124.99

    Sonder Ingot
    Sonder Ingot 31.6mm Layback

    +£179.99 +£124.99

    Sonder Ingot
    Sonder Ingot 27.2mm Layback

    +£149.99 +£124.99

    Cane Creek eeSilk [OEM]
    Cane Creek eeSilk 31.6mm / Alloy

    +£224.99 +£179.99

    Cane Creek eeSilk+ [OEM] / 31.6mm / Alloy
    Cane Creek eeSilk+ / 31.6mm / Alloy

    +£219.99 +£199.99

    Stem

    Sonder Storc [OEM]
    Sonder Storc 60mm

    +£0.00

    Sonder Storc [OEM]
    Sonder Storc 70mm

    +£0.00

    Sonder Storc [OEM]
    Sonder Storc 80mm

    +£0.00

    Cane Creek eeSilk Stem [OEM] / 80mm / Black
    Cane Creek eeSilk Stem / 80mm / Black Black

    +£199.99 +£149.99

    Sonder Stelo bike stem 60mm
    Sonder Stelo 60mm

    +£34.99 +£24.99

    Sonder Stelo bike stem 60mm
    Sonder Stelo 70mm

    +£34.99 +£24.99

    Sonder Stelo bike stem 80mm
    Sonder Stelo 80mm

    +£34.99 +£24.99

    Forks

    Carbon Gravel Fork / Matte Black
    Carbon Gravel Fork / Matte Black

    +£0.00

    Rockshox Rudy Ultimate XPLR / 700c / 45mm Offset / 30mm
    Rockshox Rudy Ultimate XPLR / 700c / 45mm Offset / 30mm

    +£399.99

    Tubes

    WTB [OEM] Inner Tube / 700 / 38-45
    WTB Inner Tube / 700 / 38-45 Black

    +£0.00

    Tubeless Tyre Upgrade and Setup
    Tubeless Tyre Upgrade and Setup

    +£44.99

    Wheels

    Sonder Alpha 700c [OEM] Wheelset / UK Build
    Sonder Alpha 700c Wheelset / UK Build HG

    +£0.00

    Sonder Alpha 650b [OEM] Wheelset / UK Build
    Sonder Alpha 650b Wheelset / UK Build HG

    +£0.00

    Sonder Alpha 700c Dynamo Wheelset
    Sonder Alpha 700c Dynamo Wheelset Shimano HG

    +£399.99 +£59.99

    Sonder Alpha 650b Dynamo Wheelset
    Sonder Alpha 650b Dynamo Wheelset Shimano HG

    +£399.99 +£59.99

    Drivechain

    XPLR Gears
    XPLR Gears

    +£0.00

    Mullet Gears
    Mullet Gears / X1

    +£124.99

    3

    Select Accessories

    Edit

    Bottle Cages

    No Bottle Cages
    No Bottle Cages (none)

    +£0.00

    Sonder Buzz Wire
    Sonder Buzz Wire Single

    +£5.49 +£4.99

    Sonder Buzz Wire
    Sonder Buzz Wire Pair

    +£10.99 +£8.99

    love mud side blade side loading bottle cage left
    Sonder Sideblade Black / Left Entry

    +£6.99 +£5.99

    love mud side blade side loading bottle cage left and right
    Sonder Sideblade Black / PAIR

    +£9.99 +£7.99

    love mud side blade side loading bottle cage right
    Sonder Sideblade Black / Right Entry

    +£6.99 +£5.99

    Ti Wire Bottle Cage
    Ti Wire Bottle Cage Single

    +£44.99 +£34.99

    Ti Wire Bottle Cage
    Ti Wire Bottle Cage Pair

    +£79.99 +£79.99

    Lights Accessories

    No Bike Light Accessories
    No Bike Light Accessories (none)

    +£0.00

    alpkit helmet mount bike light gps
    Helmet Mount Black

    +£7.99 +£4.99

    alpkit cockpit bike light gps mount
    Garmin Outfront Mount / Black

    +£24.99 +£15.99

    Mudguards

    No Mudguards
    No Mudguards (none)

    +£0.00

    sonder fender
    Sonder Fender Front MTB

    +£4.99 +£4.99

    SKS Commuter Mudguard Set
    SKS Commuter Mudguard Set 28 / 45mm / Black

    +£29.99 +£29.99

    SKS Bluemels Mudguard Set
    SKS Bluemels Mudguard Set 28 / 55mm / Black

    +£44.99 +£34.99

    SKS Bluemels Mudguard Set
    SKS Bluemels Mudguard Set 28 / 45mm / Black

    +£42.99 +£36.99

    Pannier

    No Pannier Rack
    No Pannier Rack (none)

    +£0.00

    Pedals

    No Pedals
    No Pedals (none)

    +£0.00

    Sonder Torque
    Sonder Torque Black

    +£39.99 +£29.99

    reko clipless bike pedal
    Sonder Reko

    +£59.99 +£50.99

    distortion flat mountain bike pedal
    Sonder Distortion

    +£54.99

    sonder slingshot clipless pedal
    Sonder Slingshot Black

    +£79.99 +£59.99

    sonder Jekyll clipless and flat hybrid pedal
    Sonder Jekyll Black

    +£79.99 +£59.99

    Initial Price

    Camino Ti Apex1 AXS XPLR / Select a frame...
    £2,599.00

    Extras

    £0.00

    Total Price

    £2,599.00
    or from £112 /month
    Buy Now. Be Riding in 5 days.

    Your ultimate explorer, just gained some new technology.

    SRAM Apex AXS is the latest leap forward. 12 speeds, exceptional ergonomics and intuitive wireless electronic shifting elevate your Camino adventure. The sheer simplicity of this wide-range 1x group lets you focus on why you took on that adventure.

    Sharing the DNA of a cyclocross, gravel and adventure race bike, the geometry has been relaxed for long day comfort. Camino is designed to get you out there exploring the world.

    At a glance

    • SRAM Apex eTap AXS XPLR groupset
    • Camino Carbon fork
    • Sonder Alpha 700c UK made wheelset
    • Hand-welded titanium frame

    We've developed the Camino to give you the perfect mix of speed and confidence. Light, zippy titanium frameset with a slack head angle and longer wheelbase, Camino excels both loaded and unloaded, absorbing imperfections in surfaces you ride.

    SRAM Apex AXS

    Apex has always stood for innovation, value and reliability, and SRAM Apex AXS is the latest leap forward and the sheer simplicity of this wide-range 1x group lets you focus on what’s around you.

    Smooth and powerful hydraulic braking mated to 12-speed wireless, intuitive shifting is an unbeatable combo at any level. An optimized hood shape fits all hand sizes for comfortable and controlled braking from the hoods and the drops. Shifting is as easy as ever: one paddle to go to an easier gear, and one to go harder. Nothing extra, nothing distracting.

    Features

    Gravel geometry

    Tuned for long days with trail capabilty at its heart. The long wheelbase and 69° head angle make for a stable and confident ride, even over rough trails. Every size has been tuned for a 50-70mm stem so every rider gets direct and responsive steering.

    Wide open tyre clearance

    The Camino swallows huge tyres. Ride 700c x 50mm or 650b x 2.1”.

    Carbon monocoque fork

    Lightweight, stiff and responsive. The Camino's full carbon fork gives direct steering and smooth braking. It's completely adventure ready with mudguard and rack mounts.

    Full rack, guard and expedition mounts

    Take anything anywhere. The Camino has mounts for everything you need - panniers, guards and extra mounts for adding cages to the forks. The downtube has triple cage mounts so you can set your bottle to be at a height for easy reach or lower to accommodate larger frame bags.

    Internal Cable Routing

    Revised internal cable routing with a removable port under the bottom bracket shell making cabling easy and dropping frame weight.

    T47 Bottom Bracket

    Stiff, secure and avoids that dreaded bottom bracket creak.

    Build Spec
    Frameset
    Frame:Camino Ti Frame V3
    Fork:Monocoque Carbon Gravel | Matte Black
    Headset:FSA Orbit C-40-ACB
    Groupset
    Shifters:SRAM Apex eTap AXS | 12-speed
    Brakes:SRAM Apex | hydraulic
    Rotors:SRAM Centerline | 160mm (front), 160mm (rear) | 6-bolt
    Rear derailleur:Sram Apex XPLR eTap AXS | 12-speed
    Chainset:SRAM Apex 1 Wide | 170mm | 38t
    Cassette:SRAM PG-1231 | 11-44t | 12-speed
    Chain:SRAM Apex Chain | 12-speed
    Bottom bracket:SRAM DUB / T47
    Wheelset
    Wheels:Sonder Alpha 700c UK Made
    Tyres:Goodyear Connector | 700c | 45 | TAN
    Tubes:WTB | 700c x 38-45mm
    Finishing kit
    Handlebars:Sonder Bomber | 56cm
    Stem:Sonder Storc
    Seatpost:Sonder Seatpost | 31.6mm
    Saddle:Sonder Abode
    Tape:Sonder Reels | Black
    Weight
    Frame:XS: TBC S: 1.85kg; M: 1.95kg; L: 2.0kg; XL: 2.05kg; (Plus fork: 0.5kg)
    Build:XS: TBC S: TBC M: TBC L: TBC XL: TBC
    Pedals not included with full builds
    Specifications are subject to change without notice
    Geometry and Sizing

    Sizing

    Generally we recommend:
    X-Small: Riders between 4ft 10in and 5ft 3in (147-160cm)
    Small: Riders between 5ft 2in and 5ft 7in (158-173cm)
    Medium: Riders between 5ft 6in and 5ft 10in (170-177cm)
    Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
    X-Large: Riders 6ft 2in and over (187cm +)

    You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

    Size X-Small Small Medium Large X-Large
    ST - Seat tube 430 460 490 520 550
    TT - Top tube 521.8 536.4 562.1 592.4 625.3
    HT - Head tube 130 150 170 190 205
    HA - Head angle 69 69 69 69 69
    SA - Seat angle 74.5 74.5 74.5 74.5 74.5
    CS - Chainstay 434 434 434 434 434
    BB - BB drop 73 73 73 73 73
    FO - Fork offset 50 50 50 50 50
    WB - Wheelbase 1034.1 1050.8 1073 1105.2 1131
    SO - Stand over 695.4 765.9 773 812.4 815
    RE - Reach 370 380 395 420 440
    SK - Stack 545.2 563.9 582.6 601.2 615
    Frame Spec

    Lightweight, durable and strong titanium frame.

    Weight: S: 1.92 kg; M: 2.0 kg; L: 2.05 kg; XL: 2.16 kg (Plus fork: 0.5kg)
    Aeronautical grade titanium
    One piece carbon monocoque fork (Cage mounts on carbon fork designed for 2kg maximum load)
    Seatpost diameter: 31.6mm
    Seat tube OD: 34.9mm
    Headset: IS42/28.6 | IS52/40
    Disc brake only
    Mud guard and pannier rack mounts
    700 x 50mm or 650b x 2.2” tyre clearance.
    12mm bolt through axles at both ends.
    Hub spacing: 100x12mm front, 142x12mm rear
