    Sonder Camino

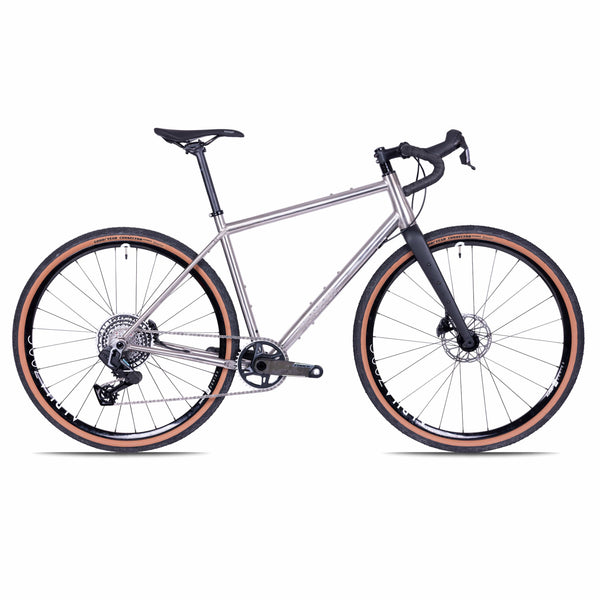

    Camino TI Force AXS XPLRAward-winning gravel bike

    £3,649 £3,749

    Award-winning Titanium Camino frame for off-road, on-road and everything in-between. Built with SRAM® Force eTap AXS wireless shifting and a gravel-optimised XPLR 13-speed drivetrain for all-road riding
    Built to Order. Be Riding 15 May.

    1

    Select Options

    • Size
      Please select an available Size

    • Size:

      • Customise and buy now. Deliveries from 15th July

    Need help choosing a bike or technical advice?

    • Open a Live Chat
    • Pop into a store 7 days a week
    • Call a Sonder Customer Hero on +44 (0)1773 417006 7 days a week
    • Email us at support@alpkit.com
    • Find out how much you can save on the cycle to work scheme visit cyclescheme.co.uk

    Sharing the DNA of a cyclocross, gravel and adventure race bike, the Camino is designed to get you out there exploring the world, with relaxed geometry for long day comfort.

    At a glance

    • SRAM Force AXS 13-speed groupset
    • Camino Carbon fork
    • Sonder Alpha 700c UK made wheelset
    • Hand-welded titanium frame

    We've developed the Camino to give you the perfect mix of speed and confidence. Light, zippy titanium with a slack head angle and longer wheelbase, Camino excels both loaded and unloaded, absorbing imperfections in surfaces you ride.

    SRAM® Force AXS XPLR

    Meet the drivetrain that matches your dedication to gravel. Force XPLR AXS seamlessly blends resilience and precision in a light and fast gravel-specific package. From simpler setup with a robust Full Mount derailleur to better braking with redesigned controls,
    this fully wireless 13-speed generation of Force works hard so you don’t have to.

    Groupset Features

    •    Effortless braking
    •    Full Mount Resilience
    •    Full Mount Precision
    •    Fully wireless
    •    Lighter than ever
    •    Bonus Buttons
    •    eTap shift logic

    Features

    Gravel geometry

    Tuned for long days with trail capabilty at its heart. The long wheelbase and 69° head angle make for a stable and confident ride, even over rough trails. Every size has been tuned for a 50-70mm stem so every rider gets direct and responsive steering.

    Wide open tyre clearance

    The Camino swallows huge tyres. Ride 700c x 50mm or 650b x 2.1”.

    Carbon monocoque fork

    Lightweight, stiff and responsive. The Camino's full carbon fork gives direct steering and smooth braking. It's completely adventure ready with mudguard and rack mounts.

    Full rack, guard and expedition mounts

    Take anything anywhere. The Camino has mounts for everything you need - panniers, guards and extra mounts for adding cages to the forks. The downtube has triple cage mounts so you can set your bottle to be at a height for easy reach or lower to accommodate larger frame bags.

    Internal Cable Routing

    Revised internal cable routing with a removable port under the bottom bracket shell making cabling easy and dropping frame weight.

    BSA Bottom Bracket

    Stiff, secure and avoids that dreaded bottom bracket creak.

    Build Spec
    Frameset
    Frame:Camino Ti Frame
    Fork:Monocoque Carbon Gravel | Matte Black
    Headset:FSA Orbit C-40-ACB
    Groupset
    Shifters:SRAM Force E1
    Brakes:SRAM Force E1 | Hydraulic
    Rotors:SRAM Centerline | 160mm (front), 160mm (rear) | 6-bolt
    Rear derailleur:SRAM Force AXS XPLR | 13-speed
    Chainset:SRAM Force XPLR | 1x | 13-speed
    Cassette:SRAM XG1371 | 10-46t | 13-speed
    Chain:SRAM Force | 13-speed
    Bottom bracket:SRAM DUB | BSA | 68mm
    Wheelset
    Wheels:Sonder Alpha I25 Gravel UK Made
    Tyres:Schwalbe G-One Performance TLE | 700-45 | Bronze
    Tubes:WTB | 700c x 38-45mm
    Finishing kit
    Handlebars:Sonder Bomber | 56cm
    Stem:Sonder Storc
    Seatpost:Sonder Seatpost | 27.2mm
    Saddle:Sonder Abode
    Tape:Sonder Reels | Black
    Weight
    Frame:XS: 1.75kg; S: 1.85kg; M: 1.95kg; L: 2kg; XL: 2.05kg; (Plus fork: 0.5kg)
    Build:XS: 9.6kg; S: 9.7kg; M: 9.8kg; L: 9.9kg; XL: 10kg;
    Pedals not included with full builds
    Specifications are subject to change without notice
    Geometry and Sizing

    Sizing

    You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

    SizeX-SmallSmallMediumLargeX-Large
    Rider height4ft 10in and 5ft 3in (147-160cm)5ft 2in and 5ft 7in (158-173cm)5ft 6in and 5ft 10in (170-177cm)5ft 9in and 6ft 2in (175-187cm)6ft 2in and over (187cm +)
    ST - Seat tube430460490520550
    TT - Top tube521.8536.4562.1592.4625.3
    HT - Head tube130150170190205
    HA - Head angle6969696969
    AC - Axle to Crown395395395395395
    SA - Seat angle74.574.5747473
    CS - Chainstay434434434434434
    BB - BB drop7373737373
    FO - Fork offset5050505050
    WB - Wheelbase1034.11050.810731105.21131
    SO - Stand over695.4765.9773812.4815
    RE - Reach370380395420440
    SK - Stack545.2563.9582.6601.2615
    Frame Spec

    Lightweight, durable and strong titanium frame.

    Weight: S: 1.92 kg; M: 2.0 kg; L: 2.05 kg; XL: 2.16 kg (Plus fork: 0.5kg)
    Aeronautical grade titanium
    One piece carbon monocoque fork (Cage mounts on carbon fork designed for 2kg maximum load)
    Seatpost diameter: 27.2mm
    Seat tube OD: 31.8mm
    Headset: IS42/28.6 | IS52/40
    Disc brake only
    Mud guard and pannier rack mounts
    700 x 50mm or 650b x 2.2” tyre clearance.
    12mm bolt through axles at both ends.
    Hub spacing: 100x12mm front, 142x12mm rear
