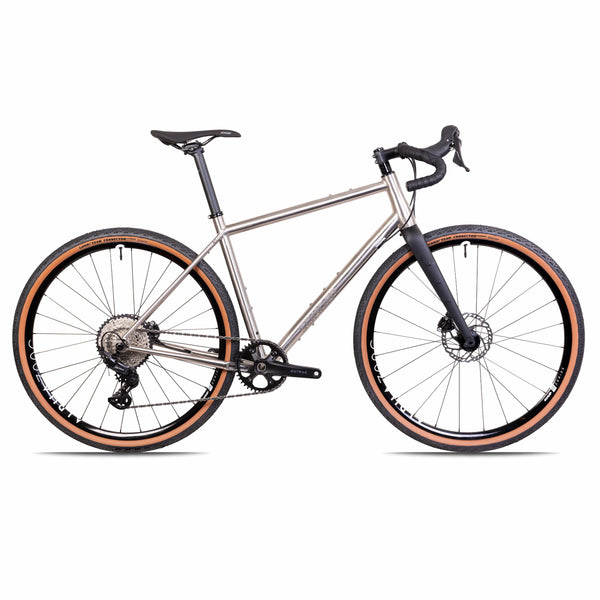

Sonder Camino Ti GRX1

Titanium drop bar gravel bike

£2,149.00

The precision of Shimano GRX1 maximises the speed and comfort of the titanium Camino

Read more

Read more

Please select your options

Sorry, this product isn't available at the moment.

Email When Available
Description

Sharing the DNA of a cyclocross, gravel and adventure race bike, the geometry has been relaxed for long day comfort, Camino is designed to get you out there exploring the world.

Whether meandering along the dusty trails of California or racing for the finish of Tuscany Trail, Camino gives you the exhilarating mix of speed and versatility. Light twangy titanium with slack head angle combined with the longer wheelbase, Camino excels both loaded and unloaded, absorbing every surface you ride.

Kudos
Singletrack review the Sonder Camino Al
With its flexible wheel size options and plenty of tyre clearance, there’s scope for building the Sonder Camino AL however you want it. However, as built, this Rival 1 option seems to me to be a great fit straight out the box. If you can’t fork out for this higher end build kit straight away, the ride quality is such that the frame makes a good candidate for later upgrades, and the handling is simply excellent. Unless your heart is set on steel, titanium, or carbon, I can’t think of a reason why you wouldn’t want this bike. I do want this bike, and I’m genuinely sorry to be sending it back.
Author: Amanda Wishart - Singletrack
Reviews
Geometry and Sizing

Sizing

Generally we recommend:
Small
Riders between 5ft 2in and 5ft 7in
Medium
Riders between 5ft 6in and 5ft 10in
Large
Riders between 5ft 9in and 6ft 2in
X-Large
Riders 6ft 2in and over
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
Size Small Medium Large X-Large
ST - Seat tube 460 490 520 550
TT - Top tube 530 556 576 604
HT - Head tube 140 160 180 200
HA - Head angle 71 71 71 71
SA - Seat angle 74.5 74 74 73
CS - Chainstay 435 435 435 435
BB - BB drop 73 73 73 73
FO - Fork offset 50 50 50 50
WB - Wheelbase 1020 1040 1062 1070
SO - Stand over 743 761 785 808
RE - Reach 370 385 400 410
SK - Stack 568 587 605 624
Build Spec
Build Camino Ti GRX1
Frameset
Frame: Sonder Camino Ti Frame [V2]
Fork: Sonder Camino Ti Fork [V2]
Headset: FSA Orbit C-40-ACB Headset / 7.8mm Spacer
Group Set
Left Brake: Shimano GRX [RX-600/RX400] Shifters / Hydraulic / Left / 1x / Flat
Right Brake: Shimano GRX [RX-600/RX400] Shifters / Hydraulic / Right / 11x / Flat
Calipers: Shimano GRX RX400 Flat-mount Calipers
Rotors: Shimano RT66 Rotor / 6 Bolt / 160mm
Rear Mech: Shimano GRX RX810 Rear Derailleur / 11 / Long
Chainset: Shimano GRX Crankset [RX600 HT] / 1x / 172.5mm / 40t
Bottom Bracket: Shimano RS500 Bottom Bracket
Chain: Shimano HG601 Chain / 11 / 118 Links
Cassette: Shimano GRX M7000 Cassette / 11 / 11-42
Finishing Kit
Stem: Love Mud Storc 31.8mm / 80mm
Seatpost: Love Mud Membar / 27.2mm / 400mm
Saddle: Sonder Abode / Black
Tape/Grips: Love Mud Reels / Black
Handlebar: Sonder Bomber
Wheelset
Wheels: FSA NS Gravel Wheelset / 700c / Shimano
Tyres: WTB Resolute / Light Fast Rolling / 700 / 42
Tubes: WTB Inner Tube / 700 / 28-38
Weight
Frame: S: 1.73 kg; M: 1.75 kg; L: 1.84 kg; XL: 1.92 kg
Fork 0.55 kg
Built: S: 9.93 kg; M: 10.05 kg; L: 10.1 kg; XL: 10.2 kg
Pedals not included with full builds
Frame Spec

Lightweight, durable and strong aluminium frame.

Weight: S: 1.73kg; M: 1.75kg; L: 1.84kg; XL: 1.92kg
Aeronautical grade titanium
One piece carbon monocoque fork
Seatpost diameter: 27.2mm
Seat tube OD 31.8 mm
Headset: IS42/28.6 | IS52/40
Disk brake only
Mud guard and pannier rack mounts 700 x 50mm or 650b x 2.1” tyre clearance 12mm bolt through axles at both ends
Features

Lightness and speed combined with comfort and stability

Wide, flat aeronautical grade titanium hand welded tubing and lightweight carbon fork for enhanced shock absorbency whilst maintaining the precision of rigid forks. Built for long days in the saddle.

Expedition geometry

Offering performance and comfort. Camino is fast and responsive with a lightweight titanium frame construction, carbon forks, long wheel base and an extended head tube. The geometry gives a more upright riding position and construction materials absorb negative vibrations to give all-day riding comfort that to ease back pain, neck pain and numbness in the fingers.

Superior stopping power

Seatstay mounted hydraulic disk brakes ensure that you will be able to stop when that elk appears out of nowhere.

Rear rack mounts

Mudguard and pannier rack compatible. Rear rack and guard mounts give you the option to load up your Camino with panniers. Carbon fork options available for front mounts.

Wheel compatibility

Clearance for tyres and wheels up to 650b x 48 mm or 700c x 45 mm
