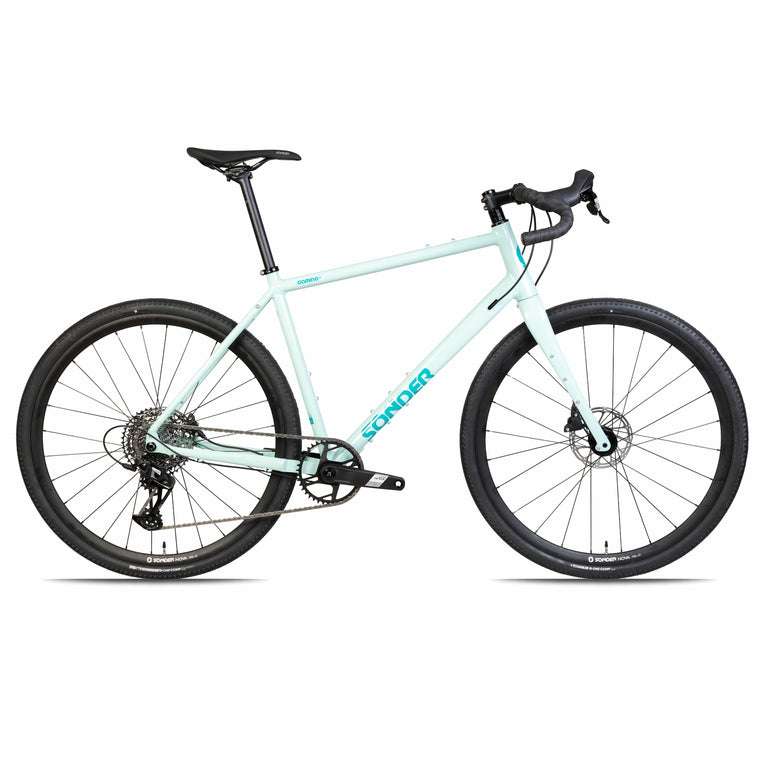

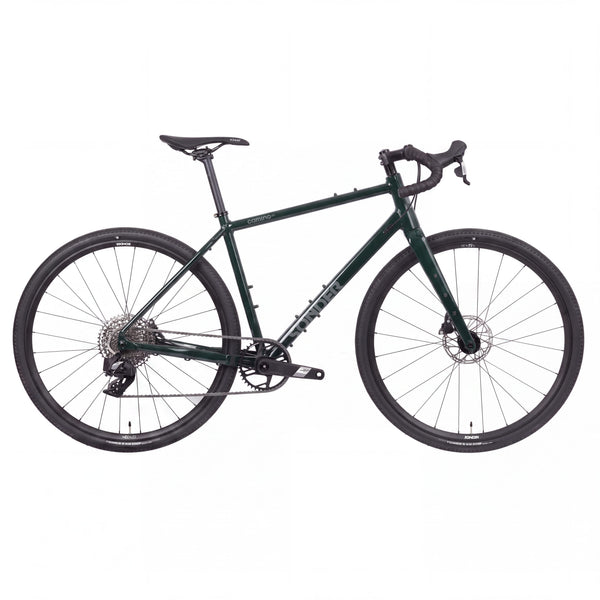

Camino Al Rival1 AXS XPLR

Photos for illustration purposes. Please check the bike spec for detailed component listings.

Camino Al Rival1 AXS XPLR

Award-winning gravel bike


Aluminium Camino frame and carbon blade fork for mixed terrain and multi-day expeditions. Built with SRAM® Rival eTap AXS wireless shifting and a gravel-optimised XPLR drivetrain for all-road riding

Read more

Read more

Sorry, this product isn't available at the moment.

Orderbook opens November 2022 for delivery in May 2023.


Camino Al is built for those moments when the road turns into trail and the bridleway drops off into single track. Spritely and comfortable on the tarmac with enough in reserve to explore off-road trails, it transforms your riding experience and turns dead ends into possibilities.

Capable, tough and quick aluminium adventure bike for exploring the world.

..Read more

At a glance

  • SRAM Rival eTap AXS 12-speed groupset
  • Camino Carbon fork
  • Sonder Alpha 700c wheelset
  • Hand-welded titanium frame

The Camino takes elements from cyclocross, gravel, and adventure race bikes. Its relaxed geometry is designed for long day comfort, with a longer wheelbase, slacker head angle and lengthened headtube for a more natural riding position.sition.

A low bottom bracket and short chainstays make it agile through the corners whilst the slackened head angle inspires confidence when descending. The aluminium frame is tough enough to take a knock or two, so you can lose yourself in the journey and push the technical envelope of your travel or even your commute.

Effortlessly adaptable, the Camino is as proficient on your local trail as it is on the open road, with tyre clearance up to 700c x 50mm or 650b x 2.1" for that added traction and comfort on bumpier terrain.

Responsive and exhilarating even when loaded up with luggage; rack, bottle cage and mudguard mounts give you the option to pack up and pedal off on a self-supported ride whenever the feeling takes you. Triple cage mount on the top of the downtube allows for 2 different mounting positions for the bottle cage for extra bag clearance or to fit a Lug-Kage.


Rival eTap AXS combines the lighter Rival 1 groupset with SRAM’s eTap wireless electronic shifting technology. Fully customisable via SRAM’s AXS smartphone app, it shifts instantly and precisely every time, completely eliminating cable stretch and housing wear, whilst leaving your bars nice and clean.

The Rival XPLR AXS gravel-specific groupset uses a 12-speed 10-44T cassette and derailleur, balancing the wide range of gearing you need for riding off-road with tight jumps for maintaining your rhythm on tarmac. Firm, powerful and well-modulated Rival hydraulic disc brakes are reliable across a wide range of riding terrains.

Read less

Gravel geometry

Tuned for long days with trail capabilty at its heart. The long wheelbase and 69° head angle make for a stable and confident ride, even over rough trails. Every size has been tuned for a 50-70mm stem so every rider gets direct and responsive steering.

Wide open tyre clearance

The Camino swallows huge tyres. Ride 700c x 50mm or 650b x 2.2” - that’s most mountain bike tyres covered.

Carbon monocoque fork

Lightweight, stiff and responsive. The Camino's full carbon fork gives direct steering and smooth braking. It's completely adventure ready with mudguard and rack mounts.

Full rack, guard and expedition mounts

Take anything anywhere. The Camino has mounts for everything you need - panniers, guards and extra mounts for adding cages to the forks. The downtube has triple cage mounts so you can set your bottle to be at a height for easy reach or lower to accommodate larger frame bags.

Internal Cable Routing

Clean lines and tidy cables thanks to fully guided internal routing. The Camino also has routing for a dropper seatpost.

Bottom bracket for the real world

A BSA threaded bottom bracket is super-durable and readily available, wherever you find yourself. So it’s not a pain in the bottom bracket!

Build Spec
Frame:Camino Al Frame | 6061 aluminium
Fork:Camino Carbon | Monocoque
Headset:FSA Orbit C-40-ACB
Shifters:SRAM Rival eTap AXS | 12-speed
Brakes:SRAM Rival eTap AXS | Hydraulic
Rotors:Avid Centreline | 160mm (front), 140mm (rear) | 6-bolt
Rear derailleur:SRAM Rival XPLR eTap AXS | Long cage | 12-speed
Chainset:SRAM Rival 1 Wide | 172.5mm | 40t
Cassette:SRAM XG1251 | 10-44t | 12-speed
Chain:Sram Rival | 12-speed
Bottom bracket:SRAM DUB | BSA | 68mm
Wheels:Sonder Nova 700c UK Made
Tyres:Vittoria Terreno Dry Tyre | 700c | 38c | Black
Tubes:WTB | 700c x 38-45mm
Finishing kit
Handlebars:Sonder Bomber | 56cm
Stem:Sonder Storc | 70mm
Seatpost:Sonder Seatpost | 31.6mm
Saddle:Sonder Abode | 158mm | Black
Tape:Velox | Black
Frame:S: 1.88 kg; M: 1.98 kg; L: 2.0 kg; XL: 2.05 kg (Plus fork: 0.5kg)
Build:S: 10.1kg; M: 10.18kg; L: 10.21kg; XL: 10.25kg
Pedals not included with full builds
Geometry and Sizing


Generally we recommend:
Small: Riders between 5ft 2in and 5ft 7in
Medium: Riders between 5ft 6in and 5ft 10in
Large: Riders between 5ft 9in and 6ft 2in
X-Large: Riders 6ft 2in and over

You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

Size Small Medium Large X-Large
ST - Seat tube 460 490 520 550
TT - Top tube 536 562 592 629
HT - Head tube 150 170 190 210
HA - Head angle 69 69 69 69
SA - Seat angle 74.5 74 74 73
CS - Chainstay 435 435 435 435
BB - BB drop 73 73 73 73
FO - Fork offset 50 50 50 50
WB - Wheelbase 1051 1073 1105 1132
SO - Stand over 752 773 795 815
RE - Reach 380 395 420 440
SK - Stack 563 582 600 619

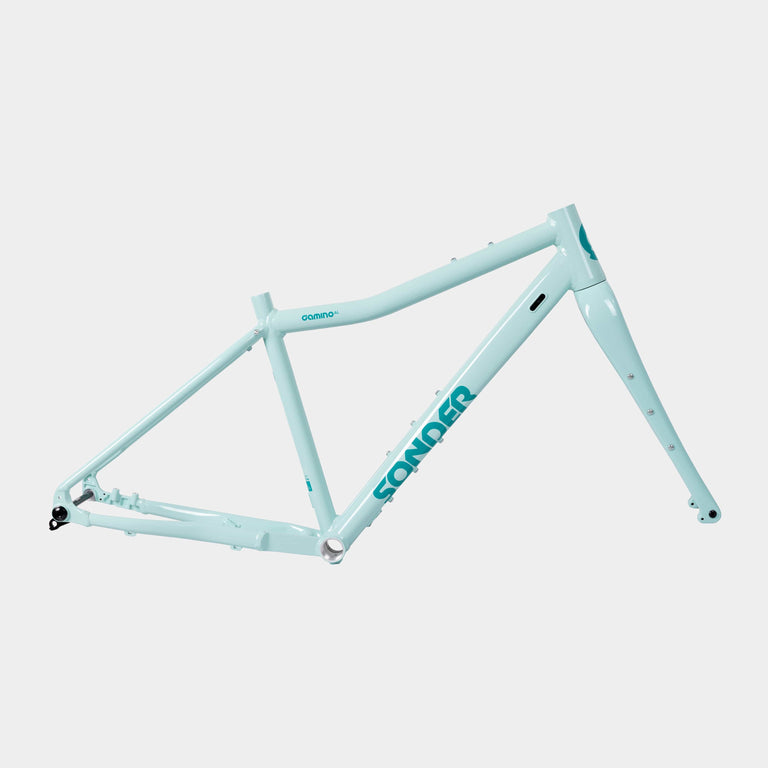

Frame Spec
"Lightweight, durable and strong aluminium frame.
Weight: S: 1.88 kg; M: 1.98 kg; L: 2.0 kg; XL: 2.05 kg; (Plus fork: 0.5kg)
6061 Aluminium
One piece carbon monocoque fork
Seatpost diameter: 31.6mm
Seat tube OD 34.9mm
Headset: IS42/28.6 | IS52/40
Disk brake only
Mud guard and pannier rack mounts 700 x 50mm or 650b x 2.2” tyre clearance 12mm bolt through axles at both ends
