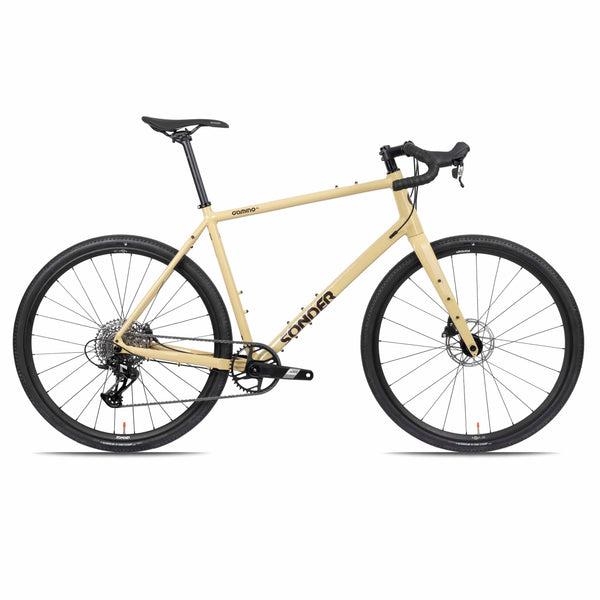

Capable, tough and quick aluminium adventure bike for exploring the world.
At a glance
- Capable, durable, and quick aluminium adventure gravel bike
- Frame: Sonder Camino Alloy Frame
- Fork: Sonder Camino Alloy Fork
- Drivetrain: Shimano GRX2 / 2 x 11 / 11-42
- Brakes: Shimano GRX2 hydraulic disc brakes
- Wheelset: Sonder Nova 700c / Shimano
- 12 mm front and rear bolt through axles
- Tyres: WTB Resolute / Comp / 700c / 42c
- 700 x 50mm or 650b x 2.1 tyre clearance
- Rack/guard mounts on the fork and rear.
Camino Al is built for those moments when the road turns into trail and the bridleway drops off into single track. Spritely and comfortable on the tarmac with enough in reserve to explore off-road trails, it transforms your riding experience and turns dead ends into possibilities.
Infused with DNA from cyclocross, gravel, and adventure race bikes, the Camino’s relaxed geometry was designed for long day comfort, with a longer wheelbase, slacker head angle and lengthened headtube for a more natural riding position.A low bottom bracket and short chainstays make it agile through the corners whilst the slackened head angle inspires confidence when descending.
The aluminium frame is tough enough to take a knock or two, so you can lose yourself in the journey and push the technical envelope of your travel or even your commute. Effortlessly adaptable, the Camino is as proficient on your local trail as it is on the open road, with tyre clearance up to 700c x 50mm or 650b x 2.1” for that added traction and comfort on bumpier terrain.
Responsive and exhilarating even when loaded up with luggage; rack, bottle cage and mud guard mounts give you the option to pack up and pedal off on a self-supported ride whenever the feeling takes you. Triple cage mount on the top of the downtube allows for 2 different mounting positions for the bottle cage for extra bag clearance or to fit a Lug-Kage.
The 2 x 11 gearing, with a whopping 11 – 42t cassette, offers a gear range that is wide enough to cope with any terrain, opening up the alpine passes to mere mortals with enough at the top end to cruise up on the flat. 2x builds give a wide gear range and keep the jumps between gears small.
Author: Stefan Abram - Cycling Weekly
"Available both in aluminium and titanium, there are options for those on a budget as well as those looking for a dream build. Regardless of the chosen material, both frames feature the same design elements that make this an incredibly practical bike.
The cables are external and fully housed, making them well-sealed from any grime degrading shifting quality. They are also a lot easier to work on should you be unfortunate enough to be subject to a mid-ride mechanical.
Downtube bottle bosses, mounting points on the carbon front fork, discrete mounts for mudguards and the ability to take a pannier rack make this bike capable for carrying large loads. Keeping the steering under control and inspiring confidence on technical descents are the slack head angle together with the long wheelbase".Read the full review here
SizingGenerally we recommend:
- Riders between 5ft 2in and 5ft 7in
- Riders between 5ft 6in and 5ft 10in
- Riders between 5ft 9in and 6ft 2in
- Riders 6ft 2in and over
|ST - Seat tube||460||490||520||550|
|TT - Top tube||530||556||576||604|
|HT - Head tube||140||160||180||200|
|HA - Head angle||71||71||71||71|
|SA - Seat angle||74.5||74||74||73|
|CS - Chainstay||435||435||435||435|
|BB - BB drop||73||73||73||73|
|FO - Fork offset||50||50||50||50|
|WB - Wheelbase||1020||1040||1062||1070|
|SO - Stand over||743||761||785||808|
|RE - Reach||370||385||400||410|
|SK - Stack||568||587||605||624|
|Build||Camino Al GRX2|

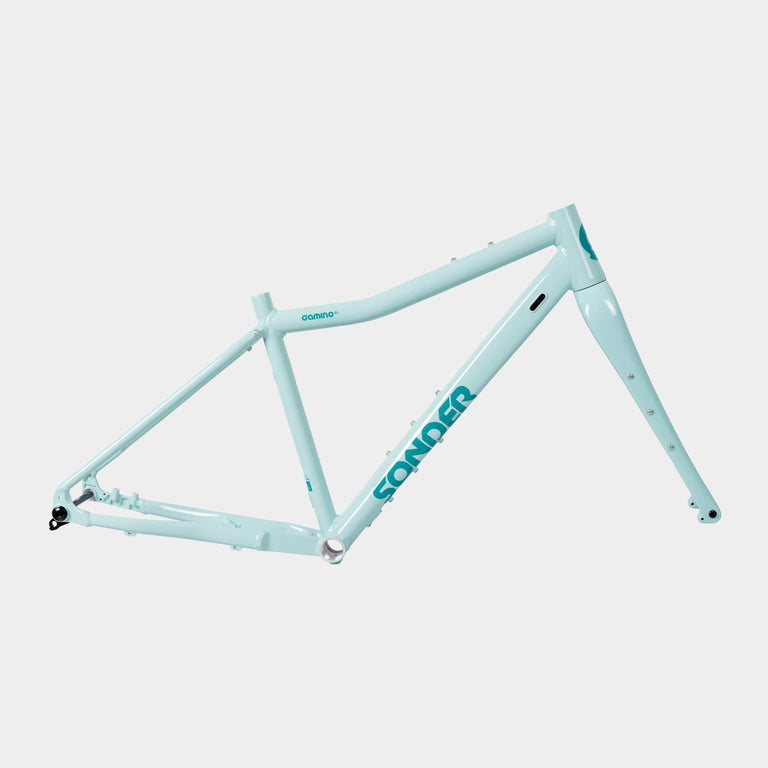

|Frame:||Camino Al Frame|
|Fork:||Camino Al Forks|
|Headset:||FSA Orbit C-40-ACB Headset / 7.8mm Spacer|
|Seat Clamp:||Love Mud Gromit / 31.8mm|
|Rotors:||Shimano RT66 Rotor / 6 Bolt / 160mm|
|Rear Mech:||Shimano GRX RX810 Rear Derailleur / 11 / Long|
|Rear Shifter:||Shimano GRX [RX-600/RX400] Shifters / Hydraulic / Right / 11x / Flat|
|Chainset:||Shimano GRX Crankset [RX600 HT] / 2x / 172.5mm / 46 30t|
|Bottom Bracket:||Shimano RS500 Bottom Bracket|
|Chain:||Shimano HG601 Chain / 11 / 118 Links|
|Cassette:||Shimano GRX M7000 Cassette / 11 / 11-42|
|Stem:||Love Mud Storc 31.8mm / 80mm|
|Seatpost:||Love Mud Membar / 27.2mm / 400mm|
|Saddle:||Sonder Abode / Black|
|Tape/Grips:||Love Mud Reels / Black|
|Handlebar:||Love Mud Bomber|
|Wheels:||Sonder Nova 700c Wheelset / Shimano|
|Front Tyre:||WTB Resolute / Comp / 700 / 42|
|Rear Tyre:||WTB Resolute / Comp / 700 / 42|
|Tubes:||WTB Inner Tube / 700 / 28-38|
|Frame:||S: 1.9 kg; M: 2.0 kg; L: 2.0 kg; XL: 2.1 kg|
|Fork (uncut):||0.84 kg|
|Pedals not included with full builds|
|Weight: S: 1.9kg; M: 2.0kg; L: 2.0kg; XL: 2.1kg|
|Carbon fork with alloy steerer|
|Seatpost diameter: 27.2mm|
|Seat tube OD 31.8 mm|
|Headset: IS42/28.6 | IS52/40|
|Disk brake only|
|Mud guard and pannier rack mounts 700 x 50mm or 650b x 2.1” tyre clearance 12mm bolt through axles at both ends|
Fast and responsive even when loaded up. With a lightweight aluminium frame, carbon forks, long wheel base and an extended head tube, the geometry promotes an upright riding position for all-day riding comfort.
External cable routing facilitates maintenance when you haven’t got access to a full workshop; cables are fully housed to keep your machinery running smoothly in all conditions.
Big tyre clearance for tackling mixed terrains: up to 650b x 2.1” or 700c x 50 mm
Powerful and firm braking
Well-modulated seatstay mounted hydraulic disk brakes will help to bring you to a halt and reduce the risk of wheel lock when that elk appears out of nowhere.
Lightweight, strong and responsive with an alloy steerer; kitted out with mudguard mounts which accommodate racks for lightweight loads
The triple cage bottle mount on top of the downtube allows for 2 different mounting positions. Opt for the modern ultra-light bikepacking luggage or load up with panniers on the rear rack mounts.
