Last chance to buy

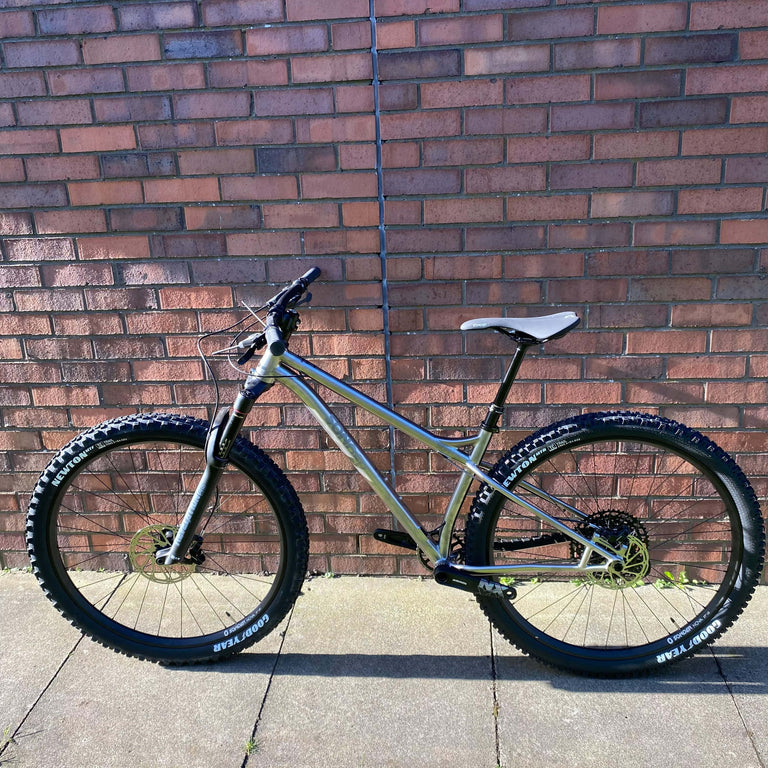

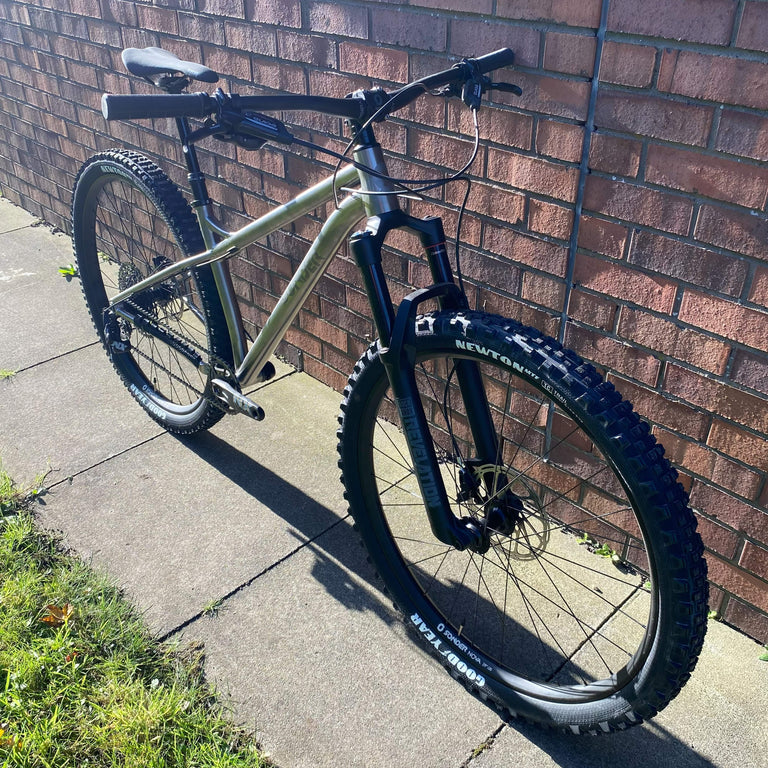

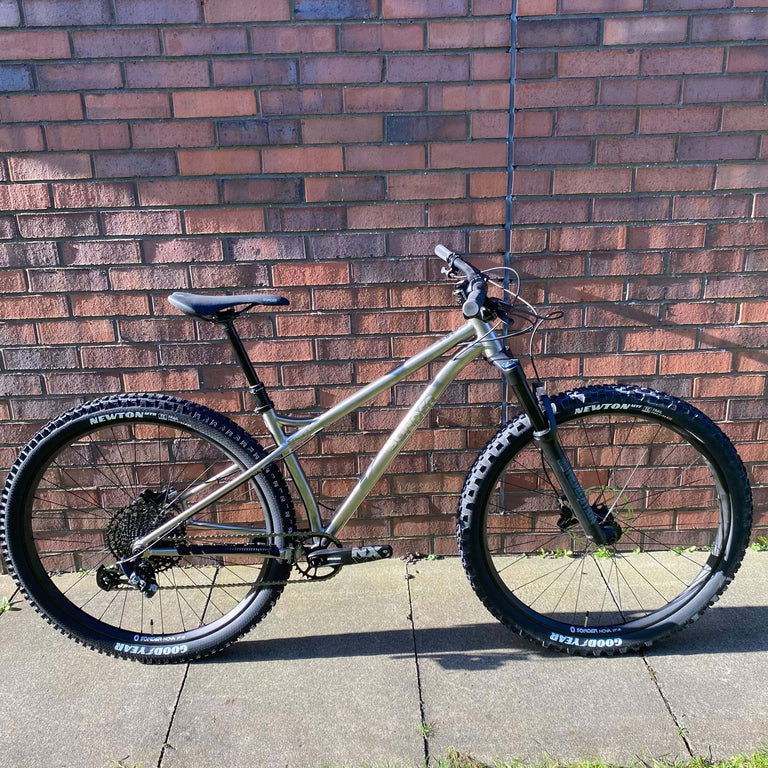

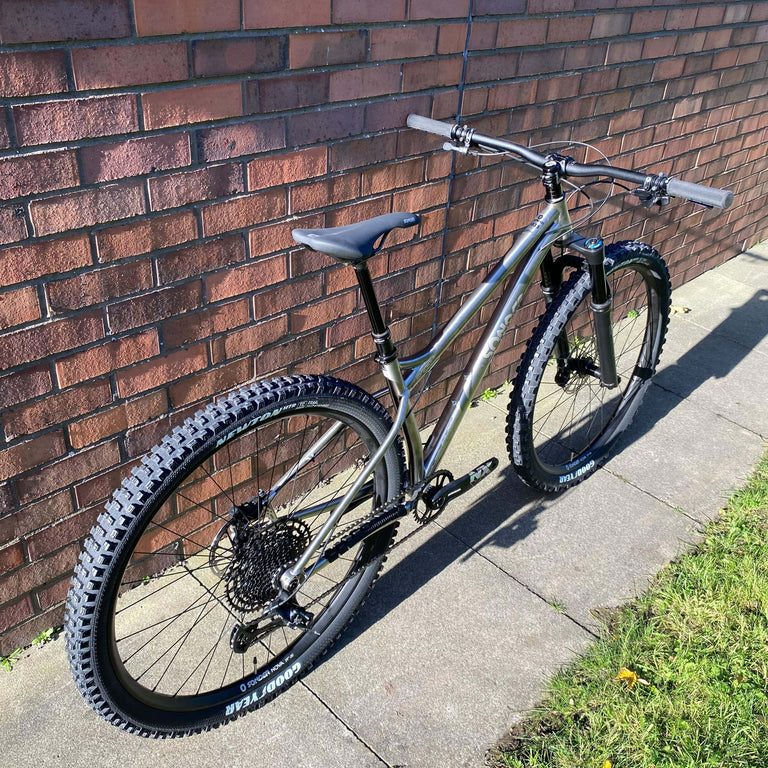

Signal Ti / Small
£1,599 £2,299
The Signal is fast, it’s for flat out speed.
It pedals like an XC bike, descends like an enduro bike, and captures the rawness of riding a hardtail on fast, flowy singletrack. Stand up, sprint, and ride it hard on groomed descents at Llandegla and Glentress or take it to the big mountains and get loose.
At a glance
- SRAM NX Eagle 12-speed groupset
- RockShox Revelation RC fork
- Sonder Nova 29" wheelset
- X-Fusion Manic dropper seatpost
That low BB and long wheelbase gives a planted and stable feel through the corners and on high speed descents, the low stack height leaves you with less of that ‘tall’ 29er feeling – you’ll feel like you’re in the bike, not on the bike.
Big wheels roll faster. The 29 in wheels can be paired with 2.2 to 2.6ins tyres with clearance for winter conditions.
The titanium Signal frame is stiff, light and durable. 3Al 2.5V Aeronautical grade titanium tubing softens trail buzz and provides the engaging and lively feel that only Titanium can.

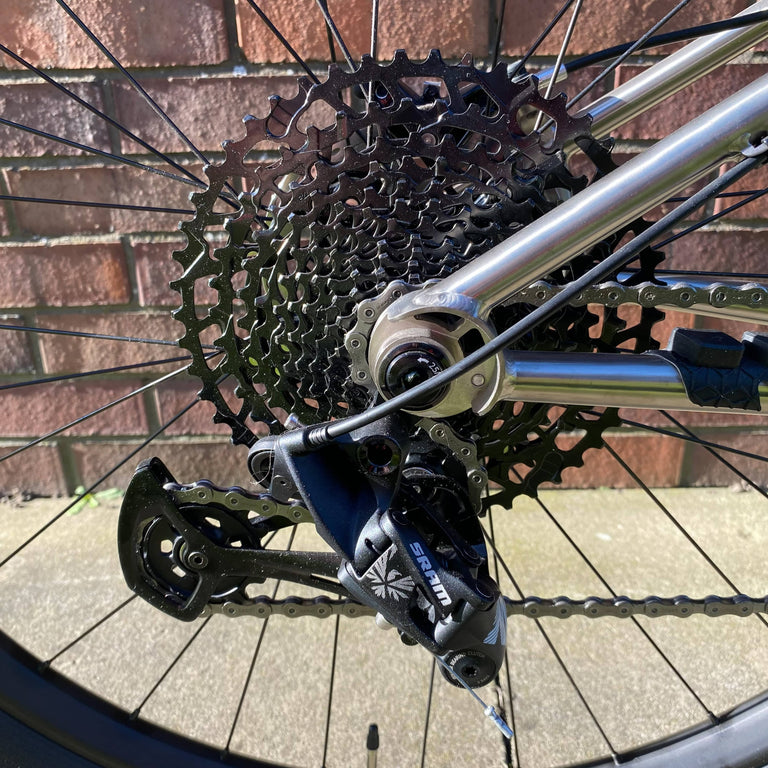

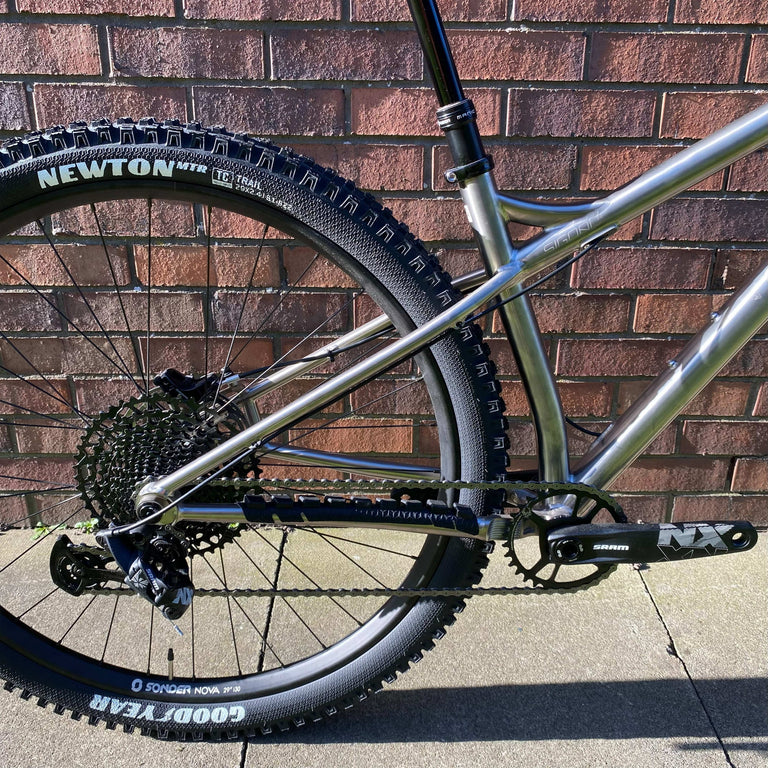

Why NX?
SRAM Eagle drivetrains are designed, engineered and manufactured to work as complete drivetrain systems. Its 1x drivetrain is a solution that is built to be lightweight, strong and intuitive, with the gear range to ride on any terrain.
NX Eagle provides the same Eagle performance benefits as the rest of the Eagle family. Slotting in just under the higher priced GX, the main differences are extra weight and the 11-50 range is not as wide as the 10-50 offered with GX, but functionally NX is 12-speed and fully compatible with SRAMs Eagle groupset.
**Lead image represents the bike for sale, please see store pics for the actual bike.
Features
2.6” tyre clearance
Bucketloads of clearance for 2.6” tyres gives you the benefits of higher volume tyres without getting clogged up in UK conditions.
Aggressive trail geometry
Neil has designed the Signal Ti to suit his aggressive riding style. A low bottom bracket makes it corner like its on rails, a spacious reach gives you room to move around on the bike, and the 66/74 head and seat angles give you the confidence to bomb the descents and while still being able to climb like a mountain goat.
Guided internal cable routing
Guided internally routed cables for a clean look and silent ride.
Titanium frame
Nothing looks quite so good as the famously resilient and durable titanium. Signal Ti’s aeronautical grade titanium tubing absorbs shock to soften the ride without any loss to feel or speed.
Custom available
We can customise any aspect of our Ti bikes. Come to us with what you want and Neil will make it happen.
Geometry and Sizing
Sizing
It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
Generally we recommend: Small: Riders between 5ft 2in and 5ft 7in (157 and 170)cm Medium: Riders between 5ft 6in and 5ft 10in (167 and 177cm) Large: Riders between 5ft 9in and 6ft 2in (175 and 187cm) X-Large: Riders of 6ft 2in + (187cm +)
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| ST - Seat tube | 400 | 425 | 465 | 485 |
| ETT - Effective Top Tube | 585 | 606 | 634.9 | 665 |
| HT - Head tube | 100 | 110 | 120 | 130 |
| HA - Head angle | 66 | 66 | 66 | 66 |
| SA - Seat tube angle | 74 | 74 | 74 | 74 |
| CS - Chainstay | 430 | 430 | 435 | 435 |
| BB - BB drop | 65 | 65 | 65 | 65 |
| FO - Fork offset | 42/51 | 42/51 | 42/51 | 42/51 |
| WB - Wheelbase | 1125 | 1147.1 | 1183 | 1214.4/td> |
| SO - Standover | 730 | 738 | 760 | 772 |
| RE - Reach | 419.8 | 437.8 | 464.4 | 492 |
| SK - Stack | 576 | 585.2 | 594.6 | 603.7 |
| Tyre |
Frame Spec
Titanium 29er hardtail mountain bike frame
| Weight: S: 1.9kg; M: 1.95kg; L: 2.0kg; XL: 2.06kg |
| 3Al/2.5V Aeronautical Grade Hand Welded Titanium Frame |
| 148mm boost thru axle standard |
| Clearance for 2.6” tyres |
| Headset: IS42/28.6 | IS52/40 |
| 73mm BB shell |
| Internal, fully guided cable routing |
| Stealth dropper routing |
| 31.6mm seatpost diameter, 34.9mm clamp |
| Optimised for 130mm travel suspension fork (42 or 51mm offset) |
