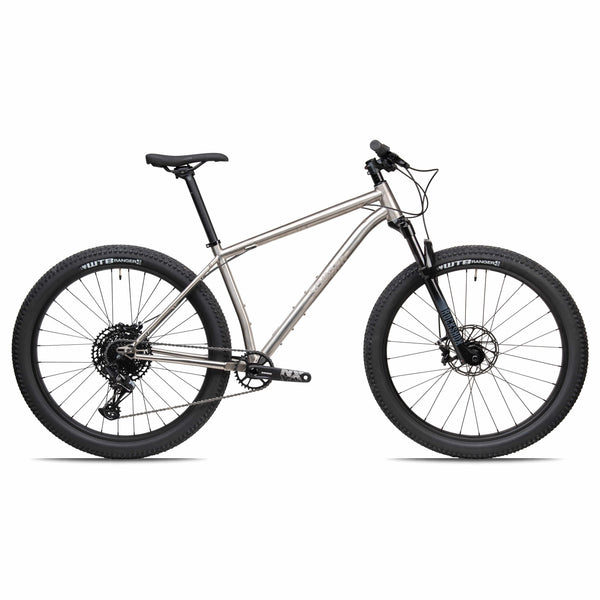

Multi-day titanium expedition hardtail designed for big mountain days and fully loaded adventures.
Plush 27.5+ tyres will rapidly steam roll over everything with a corner grip that will make a muddy WRT a breeze...Read more
The slackened angle gives the perfect balance of comfortable uphill grinding and exciting downhill whooping. Longer wheelbase wonderfully balances precision and handling.
Wide, ovalised top tube gives vertical compliance but lateral stiffness -this also makes it easier to keep your luggage in place when riding over rough ground.
Broken Road’s titanium frame is designed for optimum use with 27.5/27.5+ wheels but can be swapped out for 29ers to help you tackle any journey that you thrust upon it. The bigger, fatter wheels go over obstacles better, hold momentum and give enhanced control due to the angling.
SRAM Eagle drivetrains are designed, engineered and manufactured to work as complete drivetrain systems. Its 1x drivetrain is a solution that is built to be lightweight, strong and intuitive, with the gear range to ride on any terrain.
NX Eagle provides the same Eagle performance benefits as the rest of the Eagle family. Slotting in just under the higher priced GX, the main differences are extra weight and the 11-50 range is not as wide as the 10-50 offered with GX, but functionally NX is 12-speed and fully compatible with SRAMs Eagle groupset.Read less
Hop on and experience the famed resilience of titanium. No other material is as durable, lasts as long, or looks as good, and Broken Road’s aeronautical grade titanium tubing isolates the rider from shock, gives an efficient ride, and maximizes storage potential. Thanks to the low standover height and rider clearance, you won’t have to make any compromises when riding over rough terrain either.
Designed for optimum use with 27.5+ (semi-fat) wheels which help you to tackle any adventure. The plus-sized wheels cruise over obstacles, hold momentum, and give enhanced control thanks to a larger contact patch.
The long wheelbase combines precision and control, giving you the flexibility to adjust riding position easily. The frame is designed with a relaxed head angle, creating the perfect set up for eating up the miles over any surface, and striking the balance between comfortable uphill grinding and hair-raising downhill whooping.
Adjustable sliding dropouts let you lengthen your Broken Road for eating up the miles or shorten it for the technical, steep trails, and allow for either 27.5+ or 29” wheels, and either singlespeed, derailleur, or internal hub gears.
Rack mounts allow you to load up with panniers.
|Frame:||Broken Road Frame / titanium|
|Fork:||Rockshox Recon Silver RL / 100mm (travel)|
|Headset:||FSA Orbit C-40-ACB|
|Shifters:||SRAM NX Eagle trigger / 1x / 12-speed / hydraulic|
|Brakes:||SRAM Guide T / hydraulic / direct mount|
|Rotors:||Avid Centreline / 180mm (front); 160mm (rear) / 6-bolt|
|Rear derailleur:||SRAM NX Eagle / 12-speed / long cage|
|Chainset:||SRAM NX Eagle DUB / 170mm / 32t|
|Cassette:||SRAM PG1230 / 12-speed / 11-50t|
|Chain:||SRAM NX Eagle / 12-speed|
|Bottom bracket:||SRAM DUB / BSA-threaded / 73mm|
|Wheels:||Sonder Nova 27.5+|
|Tyres:||Goodyear Peak Tubeless / 27.5 x 2.25" / tan|
|Tubes:||WTB Inner Tube / 29 x 1.9-2.3"|
|Handlebars:||Sonder Aspect Riser|
|Seatpost:||Sonder Seatpost / 31.6mm|
|Frame:||S: 1.97kg; M: 2.0kg; L: 2.1kg; XL: 2.14kg|
|Build:||S: 12.4kg; M: 12.65kg; L: 13.8kg; XL: 13.9kg|
|Pedals not included with full builds|
|ST - Seat tube||395||445||470||508|
|ETT - Effective Top tube||592||616||644||668|
|TT - Top tube||600||615||628||646|
|HT - Head tube||120||135||145||160|
|HA - Head angle||68||68||68||68|
|SA - Seat angle||73||73||73||73|
|CS - Chainstay||440 - 460 (adjustable)||440 - 460 (adjustable)||440 - 460 (adjustable)||440 - 460 (adjustable)|
|BB - BB drop||58||58||58||58|
|FO - Fork offset||50||50||50||50|
|WB - Wheelbase||1142||1154||1168||1190|
|SO - Stand over||736||767||782||808|
|RE - Reach||410||430||455||475|
|SK - Stack||595||609||618||632|
|Weight: S: 1.96kg; M: 1.98kg; L: 2.0kg; XL: 2.2kg|
|3Al/ 2.5V Aeronautical Grade Hand Welded Titanium Frame|
|148 mm boost thru axle standard|
|Rear rack mount lugs|
|Seatpost: 31.6 mm|
|Seat tube OD: 34.9 mm|
|73 mm BB shell|
