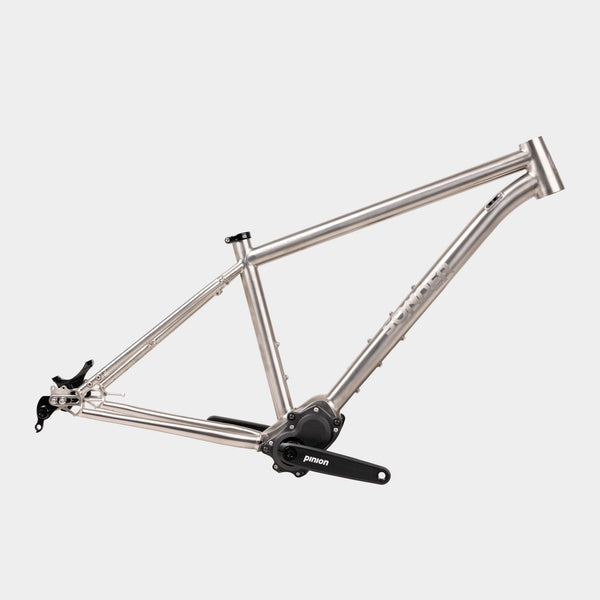

    Broken Road Ti Pinion Frameset

    Wilderness trail bike with Pinion gearbox

    £2,899 £3,399

    or from £50 /month V12 logo

    1

    Select Options

    2

    Customize

    3

    Select Accessories

    Reset

    Multi-day titanium expedition mountain bike frameset with Pinion gearbox. Designed for big mountain days and fully loaded adventures.
    Buy Now. Deliveries from 22 April.

    1

    Select Options

    Edit

    • Size

    Sizing

    It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the top tube to your crotch this will give you enough seat post adjustment to find your optimum saddle height.





    SizeSmallMediumLargeX-Large
    Rider height

    5ft 2in - 5ft 7in

    (158-173cm)

    5ft 6in - 5ft 10in

    (170-177cm)

    5ft 9in - 6ft 2in

    (175-187cm)

    6ft 2in +

    (187cm +)

    ST - Seat tube410440465495
    ETT - Effective top tube589613642672
    TT - Top tube556579608637
    HT - Head tube105120135150
    HA - Head angle67676767
    SA - Seat angle73737373
    CS - Chainstay440 - 460 (adjustable)440 - 460 (adjustable)440 - 460 (adjustable)440 - 460 (adjustable)
    BB - BB drop60606060
    FO - Fork offset44-5144-5144-5144-51
    WB - Wheelbase1117 (measured at 440mm)1142 (measured at 440mm)1173 (measured at 440mm)1204 (measured at 440mm)
    RE - Reach410430455480
    SK - Stack585599613626
    • Size:

    2

    Customize

    Edit

    Every Sonder bike is built to order so tell us exactly how you want it. Make any changes you want from the standard build and when you're done, just hit “Add to Bag” at the bottom of the page.

    Forks

    Sonder Pathfinder
    Sonder Pathfinder Black

    +£339.99 +£269.99

    Drivechain

    Pinion X1 Chain
    Pinion X1 Chain

    +£0.00

    Gates Carbondrive
    Gates Carbondrive

    +£299.99

      3

      Select Accessories

      Edit

      Headset

      No Headset
      No Headset

      +£0.00

      FSA Orbit C-40-ACB Headset
      FSA Orbit C-40-ACB Headset 7.8mm Spacer

      +£29.99

        Initial Price

        Broken Road Ti Pinion Frameset / Select a frame...
        £2,899.00

        Extras

        £0.00

        Total Price

        £2,899.00
        Buy Now. Deliveries from 22 April.

        The Pinion version of the Broken Road puts all the moving parts of the gear system out of harm’s way and gives an almost silent, well-balanced ride.

        It’s a low maintenance dream - you can cover 10,000km before you need to think about an oil change. The range of gears is just enormous (600%) and because of the way the gearbox works you can dump all of them in one go if you get caught out at the bottom of a brutal climb. It’s an amazing experience.

        All the weight of the gears are low and central with a pinion gearbox so handling of the Broken Road Pinion is beautifully balanced and assured.

        The slackened angle gives the perfect balance of comfortable uphill grinding and exciting downhill whooping. A longer wheelbase wonderfully balances precision and handling.

        The wide, ovalised top tube gives vertical compliance but lateral stiffness -this also makes it easier to keep your luggage in place when riding over rough ground.

        Broken Road’s titanium frame is designed for optimum use with 29" wheels but can be swapped out for 27.5 to help you tackle any journey that you thrust upon it. The bigger, fatter wheels go over obstacles better, hold momentum and give enhanced control due to the angling.

        Included:

        • Forged 6061 Crank arms 170mm
        • Rear Sprocket 30t
        • Sprocket gear (Chainring) 30t
        • DS2 Rotary Shifter
        • Universal hub spacer kit
        • Mounting bracket
        • X1 Chain as standard (Upgrade to belt drive)

        Gear Development

        With a 1:1 ratio, one rotation of the crank the chart shows the metres the bike travels forward.

        Geometry and Sizing

        Sizing

        It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the top tube to your crotch this will give you enough seat post adjustment to find your optimum saddle height.





        SizeSmallMediumLargeX-Large
        Rider height

        5ft 2in - 5ft 7in

        (158-173cm)

        5ft 6in - 5ft 10in

        (170-177cm)

        5ft 9in - 6ft 2in

        (175-187cm)

        6ft 2in +

        (187cm +)

        ST - Seat tube410440465495
        ETT - Effective top tube589613642672
        TT - Top tube556579608637
        HT - Head tube105120135150
        HA - Head angle67676767
        SA - Seat angle73737373
        CS - Chainstay440 - 460 (adjustable)440 - 460 (adjustable)440 - 460 (adjustable)440 - 460 (adjustable)
        BB - BB drop60606060
        FO - Fork offset44-5144-5144-5144-51
        WB - Wheelbase1117 (measured at 440mm)1142 (measured at 440mm)1173 (measured at 440mm)1204 (measured at 440mm)
        RE - Reach410430455480
        SK - Stack585599613626
        Frame Spec

        Titanium is lightweight, strong and durable make it an ideal construction material for bike frames. No other material is as durable, lasts as long, or looks as good. Our frames are handmade and come with a 10 year frame warranty

        Weight: S: 2.05kg; M: 2.16kg; L: 2.23kg; XL: 2.3kg
        3Al/ 2.5V Aeronautical Grade Hand Welded Titanium Frame
        148 mm boost thru axle standard
        Post mount brake on chainstay, 160mm rotor as standard
        Triple bottle cage mounts on top and bottom of downtube
        Pannier rack mounts
        Internal cable routing for rear brake, rear mech and dropper seatpost.
        Not compatible with a front mech
        Headset: IS42/28.6 | IS52/40
        Seatpost: 31.6 mm
        Seat tube OD: 34.9 mm
        73 mm BSA BB standard
        Max tyre width on 29": 2.6"
        Max tyre width on 27.5": 3"
        Chainline: 52mm
        Max chainring size: 36 tooth
