Evol / X-Large
£1,799
Ex-demo
At a glance

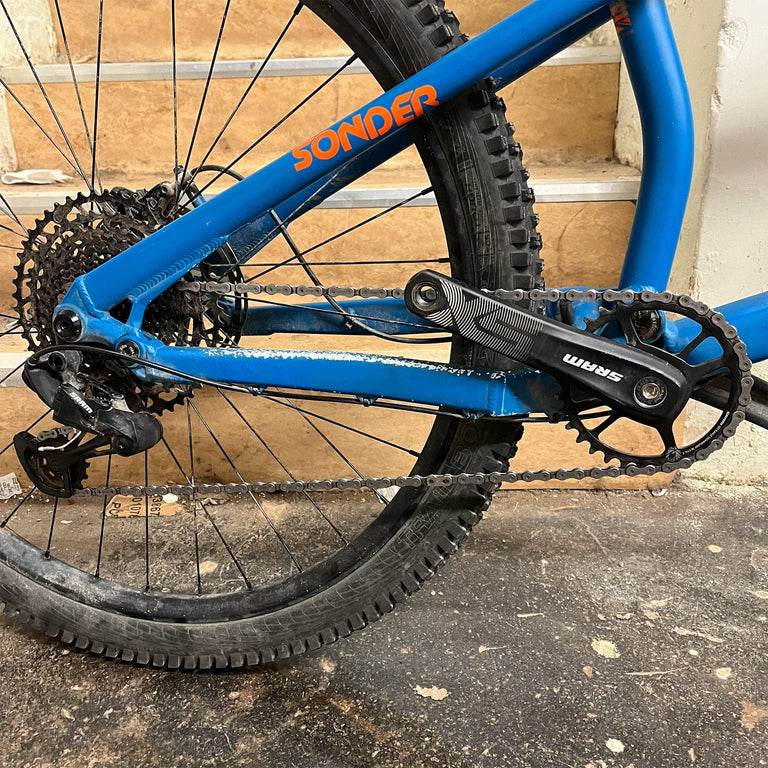

- SRAM SX Eagle 12-speed groupset
- WTB ST 29" wheelset

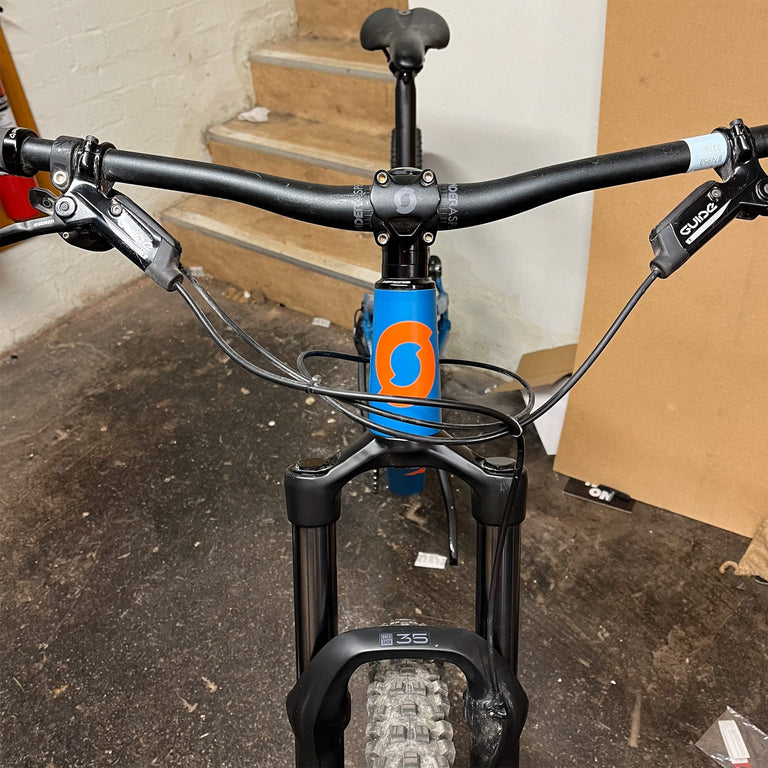

- RockShox 35R fork
- 6061 aluminium frame
Super fast, super stiff, and all-day pedalable. For local trails, trail-centres, hike-a-bike and enduro duty. Evol keeps coming back for more.
The Evol was designed and tested in the UK – in every season. We’ve chosen custom butted 6061 aluminium tubing for a perfect mix of weight, stiffness and durability.
With long (but not ultra-long), low and slack geometry, Evol inspires confidence when descending at high speeds while the low bottom bracket means you can throw it hard into every corner. It pedals well too as the geometry gives a comfortable neutral riding position, keeping your weight central so you won’t waste energy on the uphill slogs (save it for the descent!).

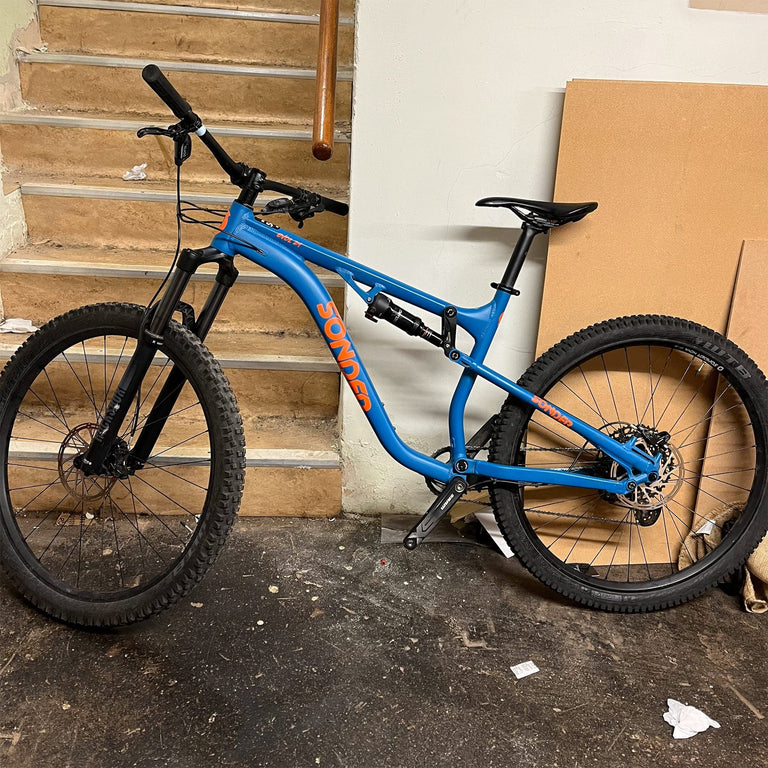

**Lead image represents the bike for sale, please see store pics for the actual bike.
Features
Goldilocks Geometry
Long, slack and low geometry for a confidence inspiring and forgiving ride. Pedals well too, with more neutral geometry keeping your weight central on the climbs.
Metric Shock Standard
Designed around metric shock sizing standard, with lengthened shocks and shorter strokes that increase bushing overlap for more smooth, supple, sensitive and reactive suspension action.
Horst link suspension design
The tried and tested Horst link suspension design allows the suspension to stay active when braking.
Tyre Clearance
Clearance for up to 29 x 2.6in tyres.
Internal Cable Routing
Internal routing in the front triangle for clean lines; threaded bottom bracket shell.
Geometry and Sizing
Sizing
| Size | Small | Medium | Large | X-Large |
| Rider Height | 5ft 2in - 5ft 7in (158-173cm) | 5ft 6in - 5ft 10in (170-177cm) | 5ft 9in - 6ft 2in (175-187cm) | 6ft 2in + (187cm +) |
| ST - Seat tube | 400 | 410 | 440 | 460 |
| ETT - Estimated top tube | 594.3 | 616.6 | 645.3 | 672.4 |
| HT - Head tube | 100 | 110 | 125 | 135 |
| HA - Head angle | 64.5 | 64.5 | 64.5 | 64.5 |
| AC - Axle to crown | 570 | 570 | 570 | 570 |
| SA - Seat angle | 76.3 | 76.3 | 76.3 | 76.3 |
| CS - Chainstay | 435 | 435 | 435 | 435 |
| BB - BB drop* | 13 | 13 | 13 | 13 |
| FO - Fork offset | 45 | 45 | 45 | 45 |
| WB - Wheelbase | 1119 | 1223.6 | 1257.8 | 1294 |
| SO - Stand over | 735 | 767 | 782 | 808 |
| RE - Reach | 435 | 455 | 480 | 505 |
| SK - Stack | 616.8 | 624.8 | 638.6 | 647.4 |
| BB* - Relative to rear axle centre | ||||
Frame Spec
| Weight: S: TBCkg; M: TBCkg; L: TBCkg; XL: TBCkg (plus shock 0.4kg) |
|---|
| Hydroformed and custom butted alloy frame tubing |
| Internal cable routing |
| Rear Shock: Rockshox Deluxe Select+ RT, 230x60mm |
| Horst link suspension layout |
| 160mm rear travel; 160mm fork travel |
| Clearance for up to 29 x 2.6" wide tyres front / 27.5 x 2.6 rear |
| 73mm BSA threaded bracket shell |
| UDH Boost 148 x 12mm rear thru-axle |
| 31.6mm seat tube, 34.9mm clamp |
| Headset: ZS44/28.6 top, ZS56/40 bottom |
| Seatpost insertion mm: S: 200 | M: 210 | L: 240 | XL: 260 |
