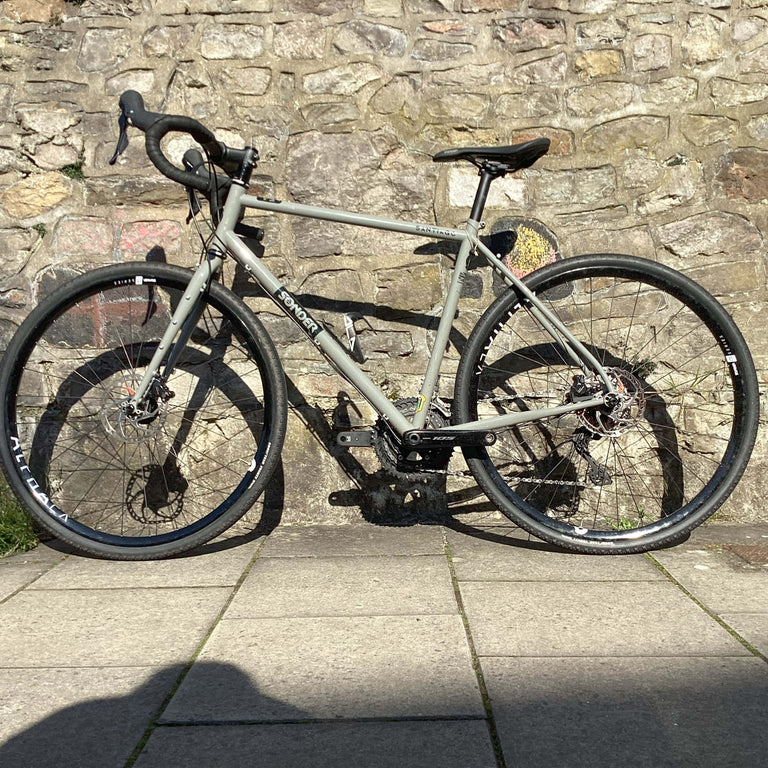

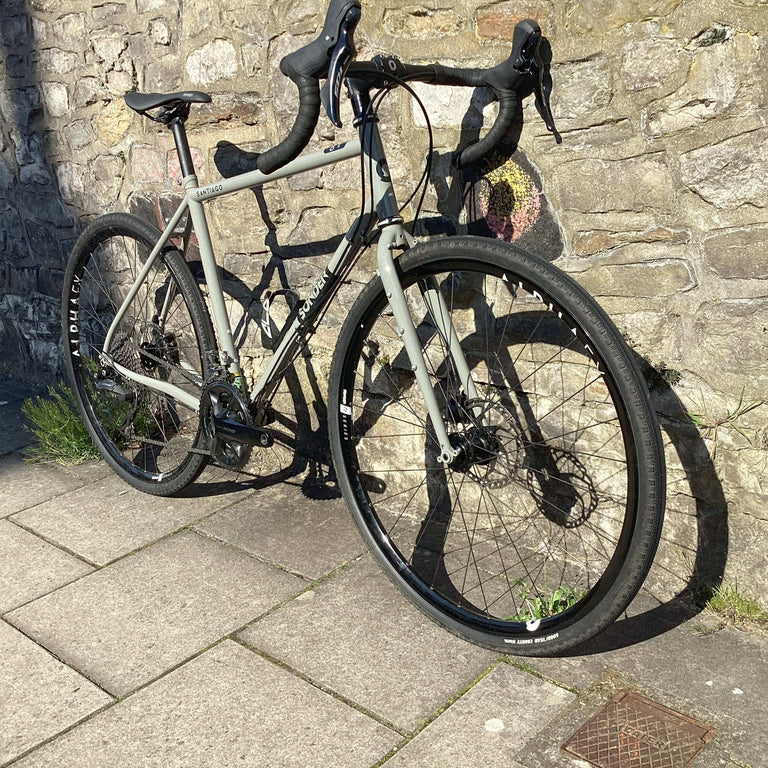

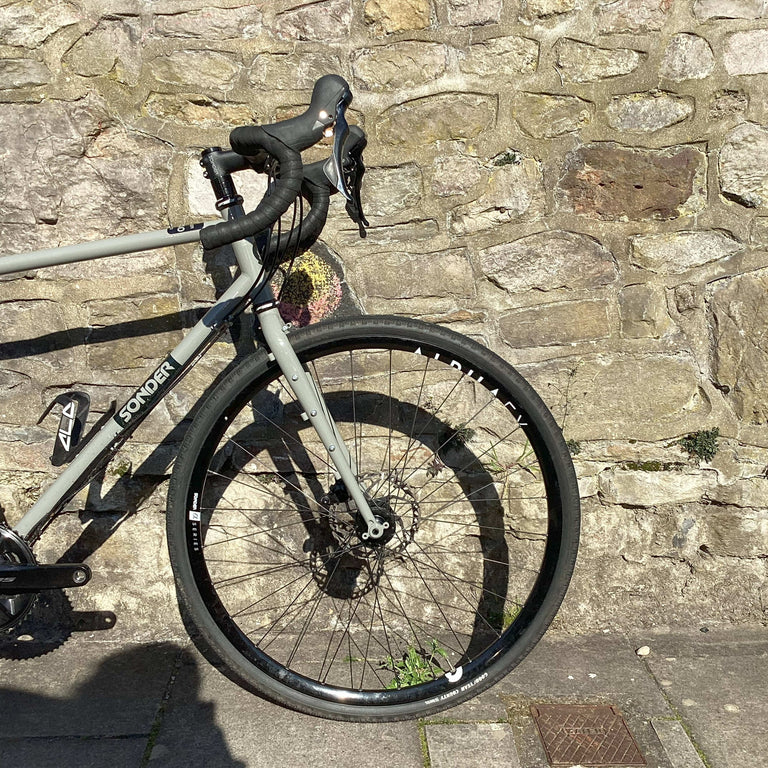

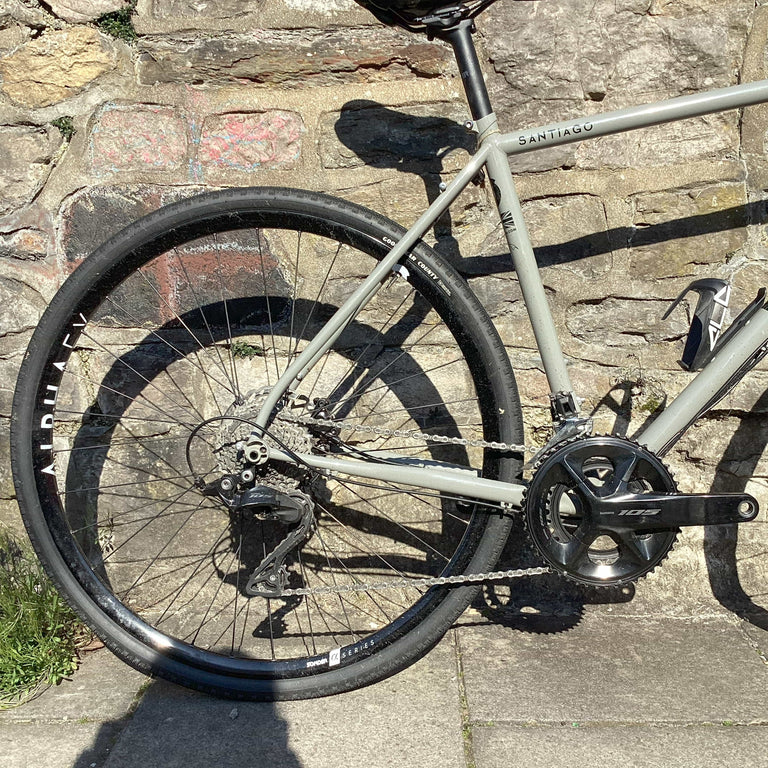

Santiago / Large Reynolds steel touring bike
£1,249 £1,849
Santiago knows its heritage; cold-worked, air hardened steel is steeped in the history of long distance riding. But with bang up-to-date geometry, Santiago has a refreshing feel that you know will be good for years to come: 450 mm chainstays, 1.1 m wheelbase, 71 degree head angle, a fork rake of 55 and generous tyre clearance. This makes for a truly comfortable, fast, assured bike, both in its own right (audax slaying, winter riding) or when racked up for multi-month adventures.
At a glance
- Shimano 105 12-speed groupset
- Santiago Steel fork
- Sonder Alpha 700c wheelset
- Reynolds 631 steel frame
**Lead image represents the bike for sale, please see store pics for the actual bike.
Details
Santiago knows its heritage; cold-worked, air hardened steel is steeped in the history of long distance riding. But with bang up-to-date geometry, Santiago has a refreshing feel that you know will be good for years to come: 450 mm chainstays, 1.1 m wheelbase, 71 degree head angle, a fork rake of 55 and generous tyre clearance. This makes for a truly comfortable, fast, assured bike, both in its own right (audax slaying, winter riding) or when racked up for multi-month adventures.
At a glance
- Shimano 105 12-speed groupset
- Santiago Steel fork
- Sonder Alpha 700c wheelset
- Reynolds 631 steel frame
**Lead image represents the bike for sale, please see store pics for the actual bike.
Features
Reynolds 631 steel tubing
Durable, smooth and assured on those multi-month trips Reynolds 631 steel is an excellent material for round-the-world touring where you’re completely dependent on your bike. We’d be surprised if you needed to get your frame repaired, but it’s comforting to know that finding a steel welder in the middle of nowhere is far easier than getting your alloy frame repaired.
Traditional bike, contemporary geometry
Santiago’s takes classic road bike geometry as a starting point, with a longer wheelbase and higher stack height for a more comfortable riding position and assured ride, whether you’re travelling light or fully loaded up.
Generous tyre clearance
Clearance for up to 650b x 47 mm or 700c x 38 mm tyres that make your ride more comfortable and give better grip on the bitumen as you corner.
New UDH DROPOUTmounts
With full rack and guard mountains, 4 sets of bottle cage bosses and extra cage mounts on the fork, Santiago can handle being fully loaded up.
Geometry and Sizing
Sizing
Generally we recommend:
Small: Riders between 5ft 2in and 5ft 7in (157-170cm)
Medium: Riders between 5ft 6in and 5ft 10in (167-177cm)
Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
X-Large: Riders 6ft 2in and over (187cm)
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Stem Length | 80mm | 90mm | 100mm | 110mm |
| Bar Width | 400mm | 420mm | 440mm | 460mm |
| ST-Seattube | 470 | 500 | 530 | 570 |
| ETT-Toptube | 550 | 568 | 589 | 610 |
| HT-Headtube | 125 | 135 | 155 | 175 |
| HA-Headangle | 71 | 71 | 71 | 71 |
| SA-Seatangle | 73 | 73 | 73 | 73 |
| CS-Chainstay | 450 | 450 | 450 | 450 |
| BB-BBdrop | 73 | 73 | 73 | 73 |
| FO-Forkoffset | 50 | 50 | 50 | 50 |
| WB-Wheelbase | 1050 | 1068 | 1089 | 1106 |
| RE-Reach | 375 | 390 | 400 | 420 |
| SK-Stack | 574 | 583 | 602 | 621 |
| AC-Fork* | 415 | 415 | 415 | 415 |
*415mm plus 12mm allowance for lower headset cup
Frame Spec
Durable, comfortable, Reynolds steel frame
| Weight: S: 2.34kg; M: 2.4kg; L: 2.5kg; XL: 2.59kg (plus fork 1.35kg) |
| Reynolds 631 steel, cold worked, air hardened seat tube, top tube and down tube |
| Chromoly fork and read frame |
| 68 mm BSA threaded BB |
| Straight headtube (EC34) to fit 1 1/8” fork |
| 100 mm front, 142 mm rear bolt-through dropouts |
| Flat mount disc brake compatible (160mm front, 140mm rear) |
| Full rack/guard mounts |
| Tyre clearance for 700 x 37 mm, 650b x 47 mm tyres |
