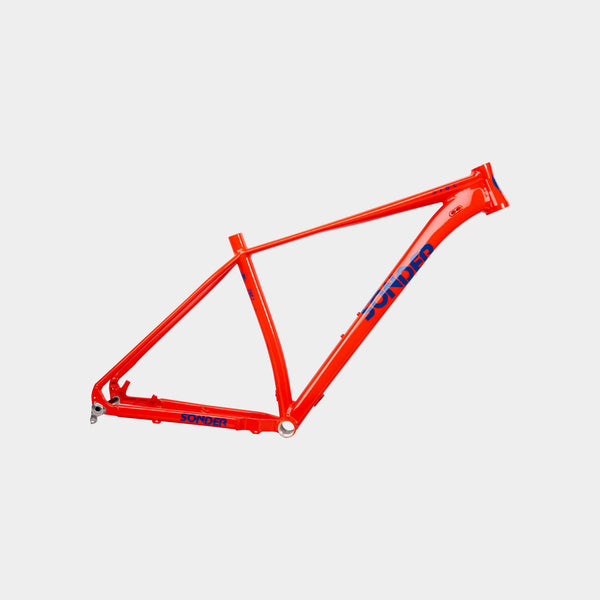

Dial Frame

Capable, efficient aggro-gravel bike

£499.00

Capable, efficient, built for speed and efficiency. Beat your best time, cover big mi...

Dial Frame

Dial Frame
Dial Frame
Dial Frame
Dial Frame
Dial Frame
Dial Frame
Dial Frame
Photos for illustration purposes. Please check the bike spec for detailed component listings.
sonder dial xc mountain bike frame in
sonder dial xc mountain bike frame in grey
dial frame
dial wheel
sonder dial
dial
dial

Dial Frame

Capable, efficient aggro-gravel bike

£499

6066 aluminium aggro-gravel bike frame with an XC racing-inspired geometry. Strong and lightweight with a flattened top tube for lateral stiffness and vertical compliance

Read more

Read more

Need help choosing a bike or technical advice?


  • Open a Live Chat
  • Pop into a store 7 days a week
  • Call a Sonder Customer Hero on 01773 417006
  • Email us at support@alpkit.com


Buy Now. Deliveries from 4 May.

Dial Frame

Capable, efficient aggro-gravel bike

£499

6066 aluminium aggro-gravel bike frame with an XC racing-inspired geometry. Strong and lightweight with a flattened top tube for lateral stiffness and vertical compliance

Buy Now. Deliveries from 4 May.

  • Please select

    • Customise

    Every Sonder bike is built to order so tell us exactly how you want it. Make any changes you want from the standard build and when you’re done, just hit “Add to bag” at the bottom of the page.

    Accessories

  • Headset

    • No Headset

      • No Headset

    • FSA Orbit C-40-ACB Headset / 7.8mm Spacer

      +£29.99

      • FSA Orbit C-40-ACB Headset / 7.8mm Spacer
Initial Price
£499
Frame
Dial Frame
Size
Colour
Extras
£0
Total Price
£499

Buy Now. Deliveries from 4 May.

Description

Capable, efficient, built for speed and efficiency. Beat your best time, cover big miles on a long day out, race to the podium. With its lightweight aluminium tubeset and 100mm travel up front, the Dial gives maximum pedalling efficiency whether you're riding 200kms at Dirty Reiver or racing flat out. If Aggro-gravel is a thing, then this is it...

The Dial is designed for riding cross-country trails without compromise. It gives more confidence than a gravel bike and a more direct feel than a trail bike. The Dial's geometry is race-tuned and the 69 degree head angle, steep seat-tube and low stack height all work together to optimise climbing performance and direct, fast steering.

..Read more

We’ve used lightweight 6066 aluminium to build the Dial into a truly lightweight bike without compromising on strength or performance. A flattened top tube provides lateral stiffness for maximum pedalling efficiency and cornering precision, whilst providing a degree of vertical compliance for a more forgiving ride over distance.

Quick out the blocks with its low frame weight, lightweight XC-specific wheelset and fast tyres, the Dial provides instant acceleration and with 100mm of travel up front, carries its speed well over rough terrain. The 430mm chainstays are compact for agile cornering, without being so short that you lose power on the climbs. It's a ride that makes is perfect for long days out where you want more comfort and control than a gravel bike or to die flat out on your local leg-tester.

Read less
Features

Tuned for efficiency

Steep head angle and seat-tube optimise climbing performance and pedalling efficiency.

Light and clean

High quality 6066 aluminium alloy reduces weight without compromising frame strength. With clean lines thanks to internal down tube cable routing.

Made for stronger wheels

Designed around Boost 148 rear spacing with a 12mm bolt-through axle.

Built in compliance

The Dial's low profile top tube gives lateral stiffness for improved power transfer and vertical compliance for comfort over long distance.

Build Spec
Geometry and Sizing

Sizing

It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

Generally we recommend:
Small: Riders between 5ft 2in and 5ft 7in (157-170cm)
Medium: Riders between 5ft 6in and 5ft 10in (167-177cm)
Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
X-Large: Riders of 6ft 2in + (187cm)

Dial

Size Small Medium Large X-Large
ST - Seat tube 395 440 470 520
TT - Top tube 579.4 599.4 622 652
HT - Head tube 100 100 110 125
HA - Head angle 69 69 69 69
SA - Seat angle 74.5 74.5 74.5 74.5
CS - Chainstay 430 430 430 430
BB - BB drop 60 60 60 60
FO - Fork offset 51 51 51 51
WB - Wheelbase 1093.5 1113.5 1137.1 1167.5
SO - Stand over TBC TBC TBC TBC
RE - Reach 415 435 455 475
SK - Stack 592.8 592.8 602.1 616.1
Frame Spec

Sonder Dial

Weight: S: 1.78kg; M: 1.88kg; L: 1.98kg; XL: 2.08kg
Alloy XC trail frame with integrated tapered headset for a clean, low front end
Hand welded 6066 frameset
High-quality extended welds
Optimised for 100 mm (506 mm axle to crown) suspension forks
Internally routed cables
Boost 148 rear spacing
Threaded 73 mm BSA BB shell for no-creak assembly
Chainstay mounted disc brake for clean lines and damage protection
Reverb Stealth port
EN 14766 compliant
Headset: IS42/28.6 | IS52/40 (not included)
The Dial frame will accept tyres up to 2.4" in width
