    Santiago Frame And Fork

    Reynolds steel touring bike

    £849 £999

    or from £15 /month V12 logo

    1

    Select Options

    2

    Customize

    3

    Select Accessories

    Reset

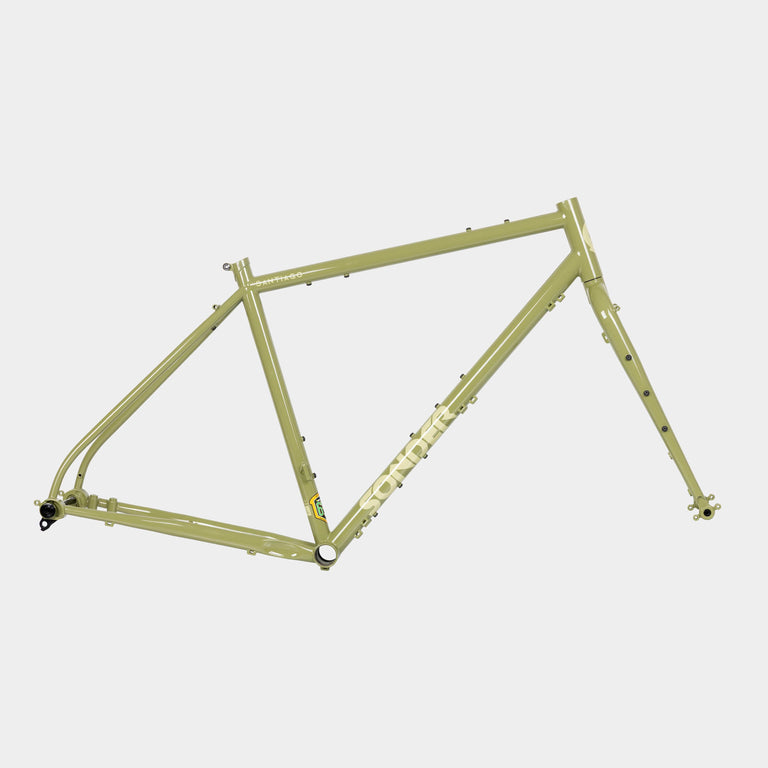

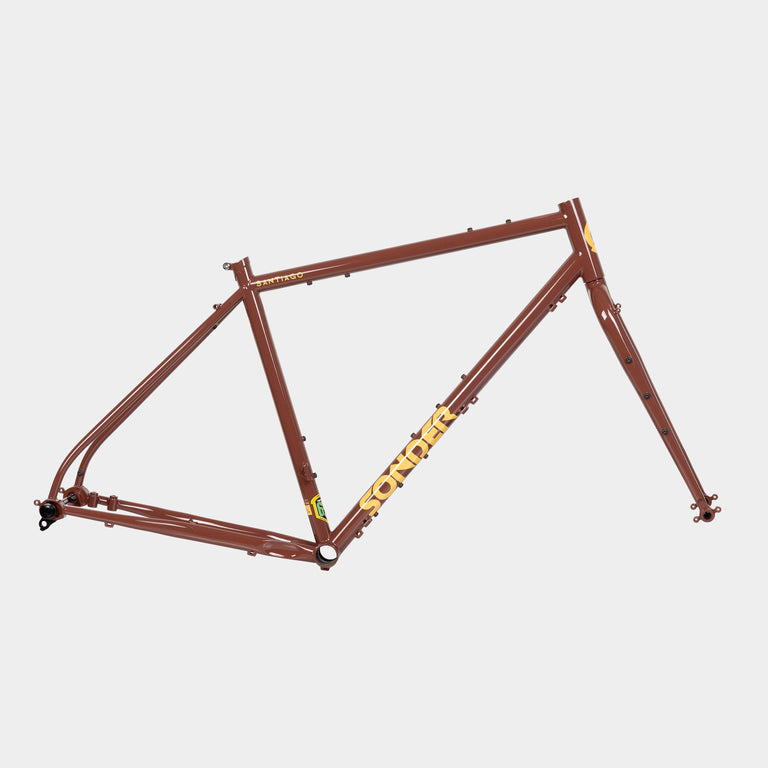

    Reynolds 631 steel touring bike frame and fork to build up your own adventure steed
    Buy Now. In stock for same day despatch.

    Need help choosing a bike or technical advice?

    • Open a Live Chat
    • Pop into a store 7 days a week
    • Call a Sonder Customer Hero on 01773 417006
    • Email us at support@alpkit.com
    • Find out how much you can save on the cycle to work scheme visit cyclescheme.co.uk

    1

    Select Options

    Edit

    • Size
    • Colour
    • Size:

    • Colour:

    2

    Customize

    Edit

    Every Sonder bike is built to order so tell us exactly how you want it. Make any changes you want from the standard build and when you're done, just hit “Add to Bag” at the bottom of the page.

      3

      Select Accessories

      Edit

      Headset

      No Headset
      No Headset

      +£0.00

      FSA [OEM] Orbit MX Headset
      FSA Orbit MX Headset 1-1/8

      +£24.99

      Fork

      Santiago Fork [Clearance]
      Santiago Fork [Clearance] Green

      +£0.00

      Santiago Fork [Clearance]
      Santiago Fork [Clearance] Grey

      +£0.00

        Initial Price

        Santiago Frame And Fork / Select a frame...
        £849.00

        Extras

        £0.00

        Total Price

        £849.00
        Buy Now. In stock for same day despatch.

        Santiago knows its heritage; cold-worked, air hardened steel (100% recycled) is steeped in the history of long distance riding. But with bang up-to-date geometry, Santiago has a refreshing feel that you know will be good for years to come: 450 mm chainstays, 1.1 m wheelbase, 71 degree head angle, a fork rake of 55 and generous tyre clearance. This makes for a truly comfortable, fast, assured bike, both in its own right (audax slaying, winter riding) or when racked up for multi-month adventures.

        At a Glance

        Reynolds 631 steel touring frame for loading up and riding around the world.

        • Frame: Sonder Santiago frame, Reynolds 631 steel
        • Fork: Sonder Santiago, Cromoly steel
        • Tyre clearance: up to 650b x 47 mm or 700c x 37 mm
        • Bolt-through axles with 12 x 100mm up front and 12 x 142mm at the rear
        • Full rack and guard mounts, 3 sets of bottle cage bosses
        Features

        Reynolds 631 steel tubing

        Durable, smooth and assured on those multi-month trips Reynolds 631 steel is an excellent material for round-the-world touring where you’re completely dependent on your bike. We’d be surprised if you needed to get your frame repaired, but it’s comforting to know that finding a steel welder in the middle of nowhere is far easier than getting your alloy frame repaired.​

        Traditional bike, contemporary geometry

        Santiago’s takes classic road bike geometry as a starting point, with a longer wheelbase and higher stack height for a more comfortable riding position and assured ride, whether you’re travelling light or fully loaded up.

        Generous tyre clearance

        Clearance for up to 650b x 47 mm or 700c x 37 mm tyres that make your ride more comfortable and give better grip on the bitumen as you corner.

        Full traditional mounts

        With full rack and guard mountains, 3 sets of bottle cage bosses and extra cage mounts on the fork, Santiago can handle being fully loaded up.

        Geometry and Sizing

        Sizing

        Generally we recommend:
        Small: Riders between 5ft 2in and 5ft 7in (157-170cm)
        Medium: Riders between 5ft 6in and 5ft 10in (167-177cm)
        Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
        X-Large: Riders 6ft 2in and over (187cm)

        You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

        Size Small Medium Large X-Large
        Stem Length 80mm 90mm 100mm 110mm
        Bar Width 400mm 420mm 440mm 460mm
        ST-Seattube 460 500 540 580
        TT-Toptube 532 554.1 571.7 582.3
        HT-Headtube 120 145 170 190
        HA-Headangle 72 72 72 72
        SA-Seatangle 73.5 73.5 73.5 73.5
        CS-Chainstay 420 420 420 420
        BB-BBdrop 70 70 70 70
        FO-Forkoffset 50 50 50 50
        WB-Wheelbase 991.2 1018.9 1027.2 1038.2
        SO-Standover 749.1 779.2 812.2 842.5
        RE-Reach 375 390 400 405
        SK-Stack 528 553.9 579.5 598.6
        Frame Spec

        Durable, comfortable, Reynolds steel frame

        Weight: S: 2.34kg; M: 2.4kg; L: 2.5kg; XL: 2.59kg (plus fork 1.35kg)
        Reynolds 631 steel, cold worked, air hardened seat tube, top tube and down tube
        Chromoly fork and read frame
        68 mm BSA threaded BB
        Straight headtube (EC34) to fit 1 1/8” fork
        100 mm front, 142 mm rear bolt-through dropouts
        Flat mount disc brake compatible (160mm front, 140mm rear)
        Full rack/guard mounts
        Tyre clearance for 700 x 37 mm, 650b x 47 mm tyres

        Your actual build date will depend on additional components you specify and from receipt of full payment. For any queries contact our Sonder team on 01773 417006.
