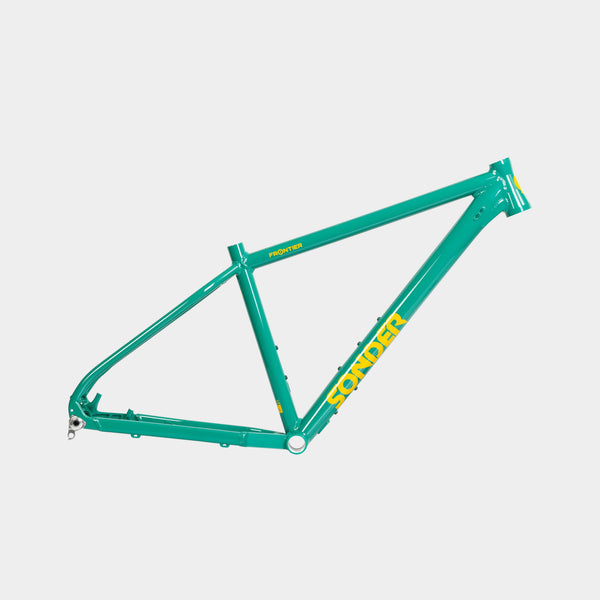

Frontier is our multi-activity hardtail mountain bike. Ride hard at the trail centre, load it up for a midweek bikepacking trip, pocket your passport and continue around the world. Frontier is an adaptable off-road explorer.
The geometry is for long day comfort but it’s no slouch.
..Read moreAt a glance
- 6061 aluminium frame
- 148mm Boost bolt through rear axle
- Rear mudguard and pannier rack mounts
- 650b+ and 29" wheel size compatible frame
The 6061 aluminium frame provides a durable and stiff chassis giving a responsive kick as you demand power when the slope steepens or enjoy feedback and precision through the corners.
Available as a fully rigid or with 100mm suspension fork. Set it up for XC race speed or for all day big mile comfort.
Tyre clearance gives you the choice of 27.5+ or 29in wheelsets. Bolt through 148mm boost rear spacing provides the benefit of stronger, stiffer and more efficient wheels.
Read lessTuned for all-round capability
Built for a balance of cross country efficiency and trail centre capability. A favourite with bikepackers looking for all-day comfort and performance.
Light and clean
Clean lines thanks to internal cable routing. Frontier also incorporates routing for a dropper seat post. The 6061 aluminium tubing is durable, light, low maintenance and stiff.
Wider tyres. More grip.
Extra width between the chainstays gives you the choice of running 27.5+ tyres up to 3 inches or 29 inch tyres up to 2.5 inches.
Made for stronger wheels
Designed around bolt through Boost 148mm rear spacing providing the benefit of stronger, stiffer and more efficient wheels.
Wilderness trail features
Chainstay mounted disc brakes. And triple bottle mounts.
Sizing
It is important to get the right size bike, if the bike fits you well it will be faster, more comfortable and easier to handle.
Generally we recommend: Small: Riders between 5ft 2in and 5ft 7in (157-170cm) Medium: Riders between 5ft 6in and 5ft 10in (167-177cm) Large: Riders between 5ft 9in and 6ft 2in (175-187cm) X-Large: Riders of 6ft 2in + (187cm)
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| ST - Seat tube | 380 | 430 | 480 | 520 |
| TT - Top tube | 563.1 | 597.3 | 621.6 | 647.3 |
| HT - Head tube | 110 | 115 | 130 | 150 |
| HA - Head angle | 68 | 68 | 68 | 68 |
| SA - Seat angle | 73 | 73 | 73 | 73 |
| CS - Chainstay | 445 | 445 | 445 | 445 |
| BB - BB drop | 50 | 50 | 50 | 50 |
| FO - Fork offset | 51 | 51 | 51 | 51 |
| WB - Wheelbase | 1095.7 | 1131.3 | 1157 | 1184.5 |
| SO - Stand over | 764 | 793.9 | 824.6 | 852.6 |
| RE - Reach | 390 | 420 | 440 | 460 |
| SK - Stack | 566.1 | 580.1 | 594 | 612.5 |
| Weight: S: 1.84kg; M: 1.88kg; L: 1.94kg; XL: 2.08kg |
| 6061 Aluminium frame |
| Optimised for rigid or 100mm suspension forks |
| Internal cable routing through downtube |
| Bolt Through Boost 148mm rear spacing for wheel strength and optimal chainline |
| Fork built around Bolt Through Boost 110mm spacing |
| Threaded 73mm BSA BB shell for no-creak assembly |
| Chainstay mounted disc brake for clean lines and damage protection |
| Triple bottle cage mount on downtube |
| Use a seat clamp with integrated mounts for pannier rack compatibility |
| Clearance for 3 inch 27.5+ or 2.5 inch 29er tyres |
| Reverb Stealth port |
| Headset: IS42/28.6 | IS52/40 (not included) |
| EN 14766 compliant |
