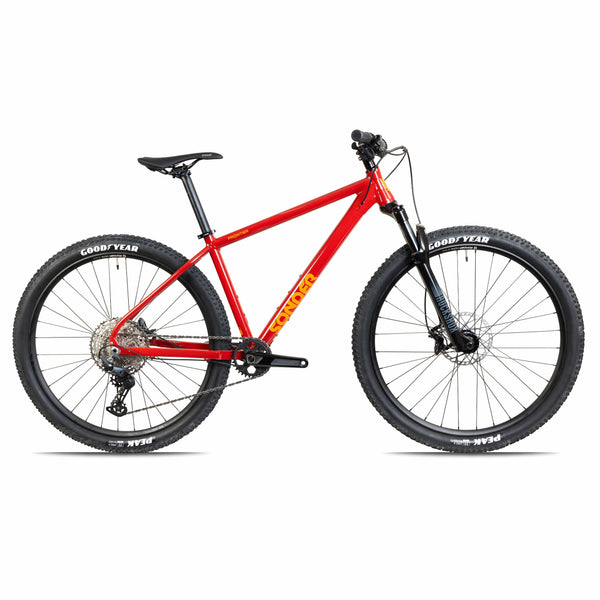

Frontier is our multi-activity hardtail mountain bike. Ride hard at the trail centre, load it up for a midweek bikepacking trip, pocket your passport and continue around the world. With full rack mounts at the back, Frontier is an adaptable off-road explorer.
The geometry is for long day comfort but it’s no slouch...Read more
The 6061 aluminium frame provides a durable and stiff chassis giving a responsive kick as you demand power when the slope steepens or enjoy feedback and precision through the corners.
Available as a fully rigid or with 100mm suspension fork. Set it up for XC race speed or for all day big mile comfort.
Tyre clearance gives you the choice of 27.5+ or 29in wheelsets. Bolt through 148mm boost rear spacing provides the benefit of stronger, stiffer and more efficient wheels.
Shimano drivetrains are designed, engineered and manufactured to work as complete drivetrain systems. Shimano's new microspline hub means that you can run a 10 tooth cassette for a huge gear range. The new EV shifters and brakes provide loads of adjustment to get the perfect position as well as a rock-solid feel on the bars.Read less
The 6061 aluminium tubing is durable, light, low maintenance and stiff.
Clean lines and tidy cables thanks to internal downtube routing. Frontier also incorporates routing for a dropper seat post.
Extra width between the chainstays gives you the choice of running 27.5+ tyres up to 3 inches or 29 inch tyres up to 2.5 inches.
The Frontier frame is designed around bolt through Boost 148mm rear spacing providing the benefit of stronger, stiffer and more efficient wheels. Seatstay mounted disc brake for clean lines and damage protection.
Fit 2 bottles in their standard location or run your downtube bottle cage a little lower to clear a bikepacking frame bag. Plus there’s an extra bottle cage mount under the downtube.
|Stem:||Sonder Piskie / 31.8mm / 55mm|
|Fork:||Rockshox Recon RL Silver / 100mm / 29|
|Headset:||FSA Orbit C-40-ACB Headset / 7.8mm Spacer|
|Brake Front:||Shimano Deore M6100 Brake / Right / 1000mm|
|Brake Rear:||Shimano Deore M6100 Brake / Left / 2000mm|
|Rotor Front:||Shimano RT66 Rotor / 6 Bolt / 180mm|
|Rotor Rear:||Shimano RT66 Rotor / 6 Bolt / 160mm|
|Rear Mech:||Shimano Deore M6100 Shifter / 12 / Direct|
|Rear Shifter:||Shimano Deore M6100 Cassette / 12 / 10-51t|
|Chainset:||Shimano Deore M6100 Rear Derailleur / 1 / 12|
|Bottom Bracket:||Shimano Deore M6100 Crankset / 170mm / 32t|
|Chain:||Shimano BB52 Bottom Bracket|
|Seatpost:||Sonder Seatpost / 31.6mm / 400mm|
|Saddle:||Sonder Zone / 152 / Black|
|Tape/Grips:||Sonder Clutch / Black|
|Handlebar:||Sonder Aspect Riser|
|Wheels:||Sonder Nova 27.5+ Wheelset / Shimano|
|Front Tyre:||Goodyear Peak Tubeless / 27.5 X 2.25 / TAN|
|Rear Tyre:||Goodyear Peak Tubeless / 27.5 X 2.25 / TAN|
|Tubes:||WTB Inner Tube / 27.5 / 2.5|
|Frame:||S: 1.97 kg; M: 2.0 kg; L: 2.1 kg; XL: 2.14 kg|
|Built:||S: 12.4 kg; M: 12.65 kg; L: 13.8 kg; XL: 13.9 kg|
|Pedals not included with full builds|
|ST - Seat tube||380||430||480||520|
|TT - Top tube||566||602||622||647|
|HT - Head tube||110||130||130||150|
|HA - Head angle||68||68||68||68|
|SA - Seat angle||73||73||73||73|
|CS - Chainstay||445||445||445||445|
|BB - BB drop||50||50||50||50|
|FO - Fork offset||51||51||51||51|
|WB - Wheelbase||1089||1127||1147||1174.5|
|SO - Stand over||764||793||825||853|
|RE - Reach||390||420||440||460|
|SK - Stack||566||580||594||613|
|Frame Weight: S: 1.84kg; M: 1.9kg; L: 1.98kg; XL: 2.03kg|
|Rigid Fork Weight - uncut: 1kg|
|6061 Aluminium frame|
|Optimised for rigid or 100mm suspension forks|
|Internal cable routing through downtube|
|Bolt Through Boost 148mm rear spacing for wheel strength and optimal chainline|
|Fork built around Bolt Through Boost 110mm spacing|
|Threaded 73mm BSA BB shell for no-creak assembly|
|Chainstay mounted disc brake for clean lines and damage protection|
|Triple bottle cage mount on downtube|
|Use a seat clamp with integrated mounts for pannier rack compatibility|
|Clearance for 3 inch 27.5+ or 2.5 inch 29er tyres|
|Reverb Stealth port|
|EN 14766 compliant|
