Evol / Medium 160/160mm mullet trail bike
£2,149 £3,149
Details
Super fast, super stiff, and all-day pedalable. For local trails, trail-centres, hike-a-bike and enduro duty. Evol keeps coming back for more.
The Evol was designed and tested in the UK – in every season. We’ve chosen custom butted 6061 aluminium tubing for a perfect mix of weight, stiffness and durability. With long (but not ultra-long), low and slack geometry, Evol inspires confidence when descending at high speeds while the low bottom bracket means you can throw it hard into every corner. It pedals well too as the geometry gives a comfortable neutral riding position, keeping your weight central so you won’t waste energy on the uphill slogs (save it for the descent!).
At a glance
- SRAM GX Eagle AXS 12-speed groupset
- Rockshox Lyrik Ultimate RC2 fork
- Rockshox Deluxe Select+ RT shock
- Superstar 29" wheelset
We’ve been obsessive when it comes to the little details that matter too. There’s internal cable and stealth dropper routing, clearance for 29 x 2.6 tyres and proper space for a bottle.
Simply put, the Evol is our dream built into a custom-butted alloy reality. An enthusiastic and capable Enduro-lite trail bike designed for enhanced fun-factor as you’re ragging it round the trail. You could take the Evol to an Enduro race, but it’s equally at home on a long day at the local trails.

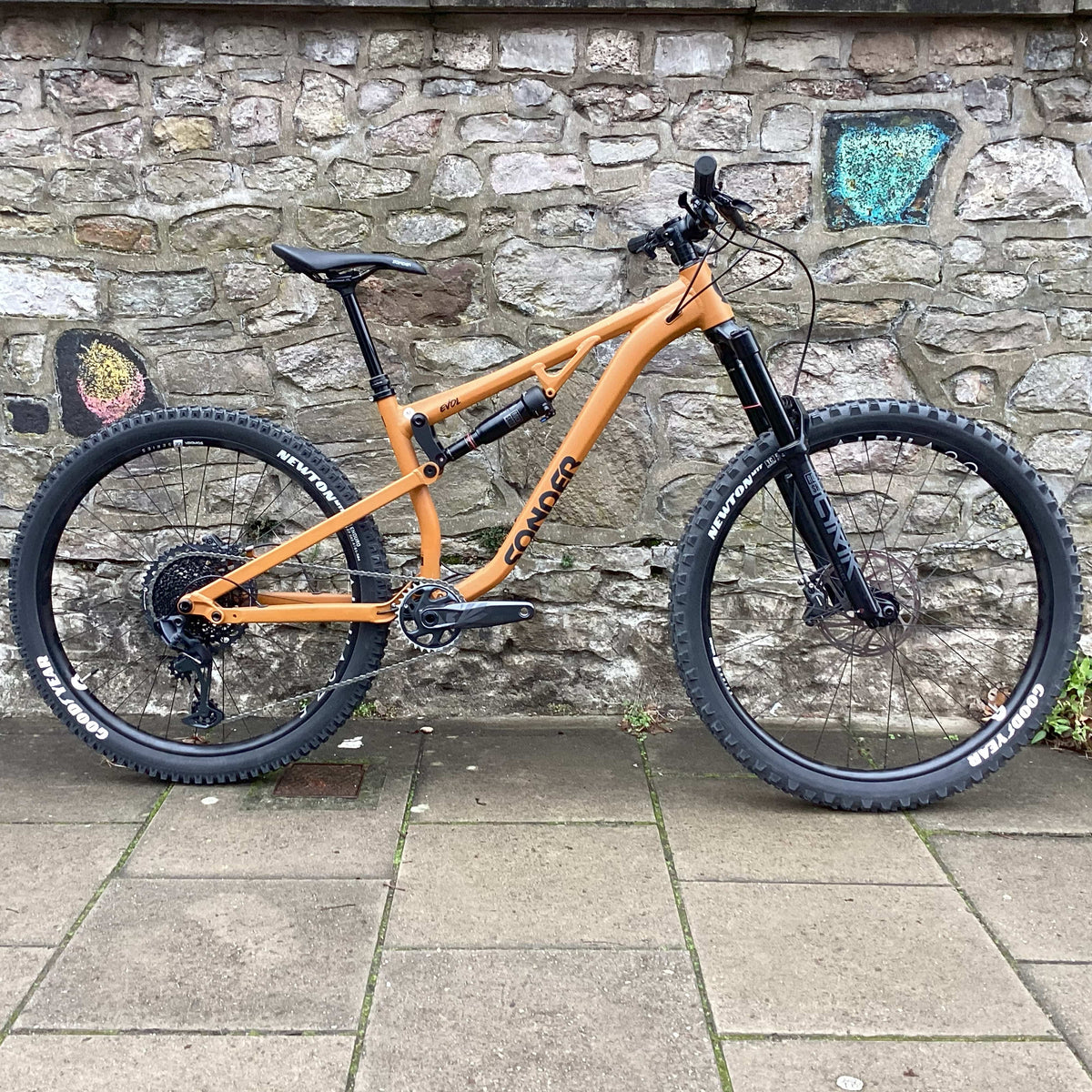

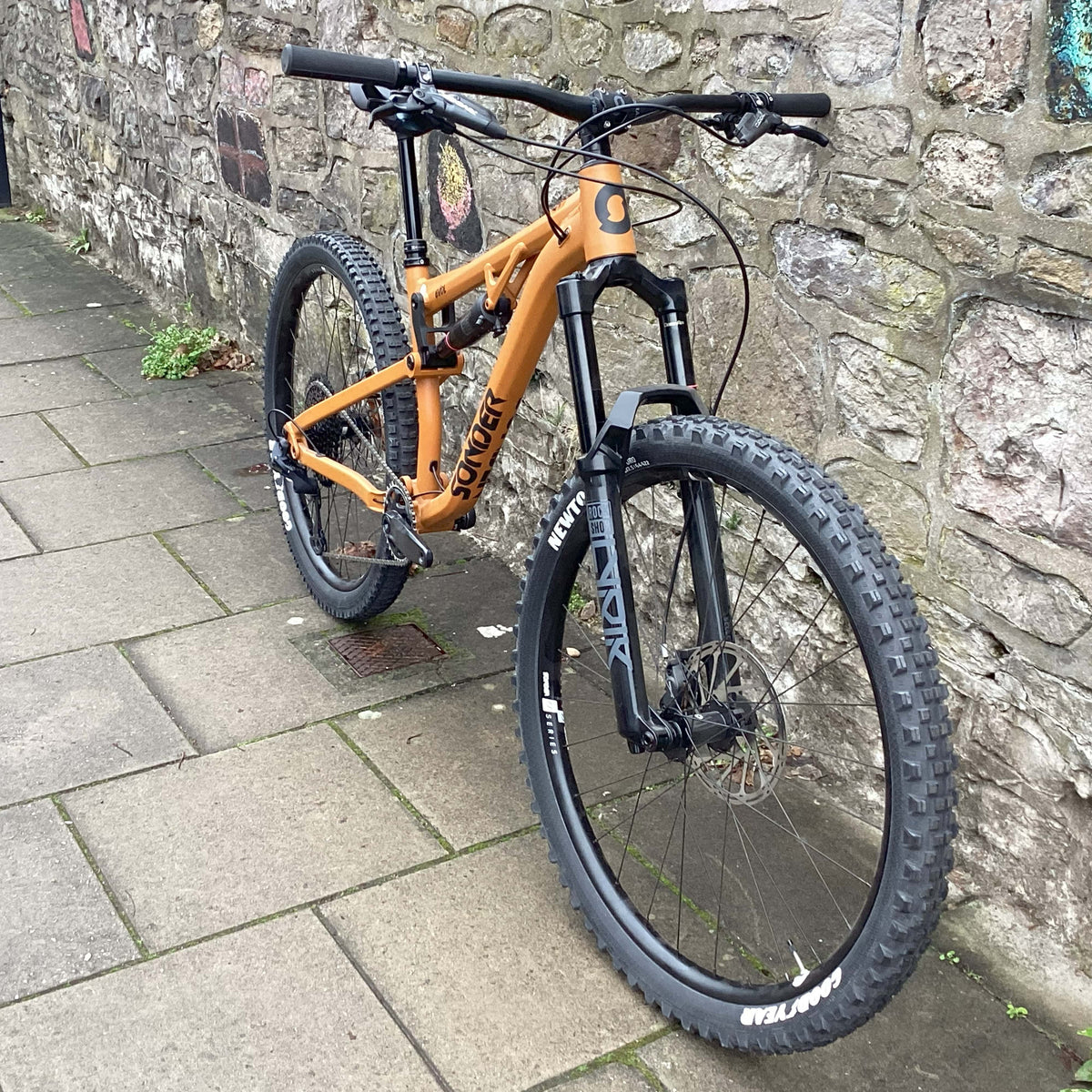

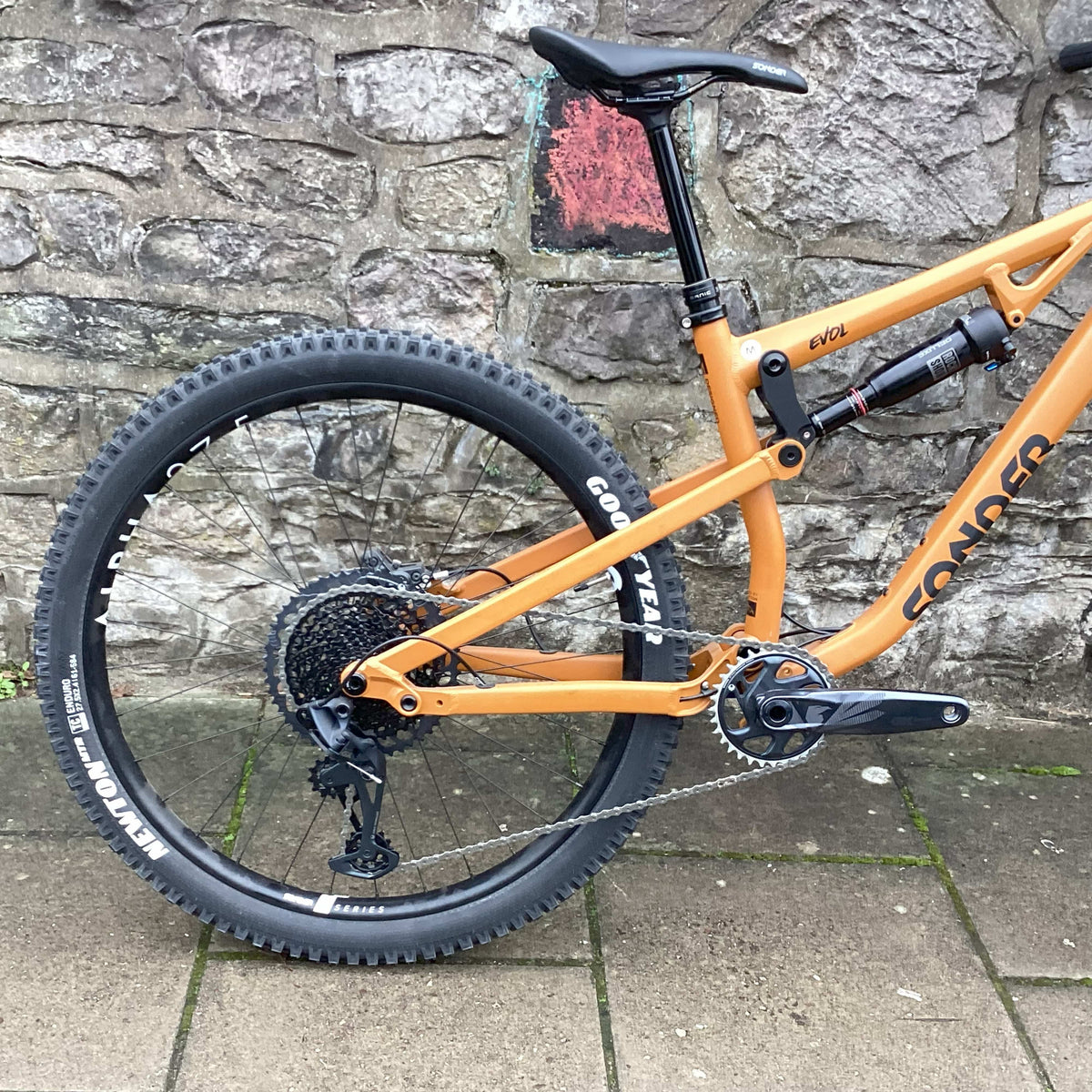

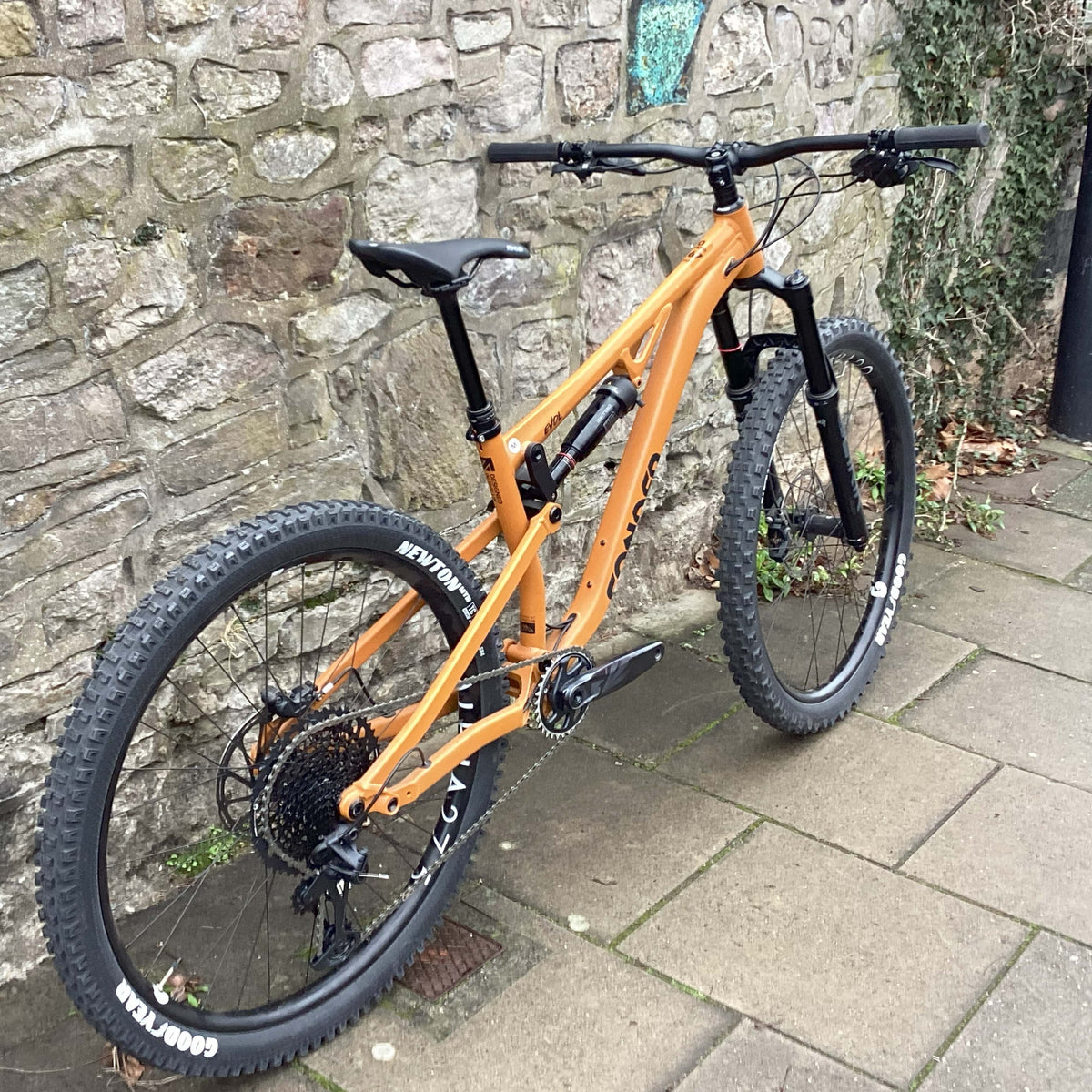

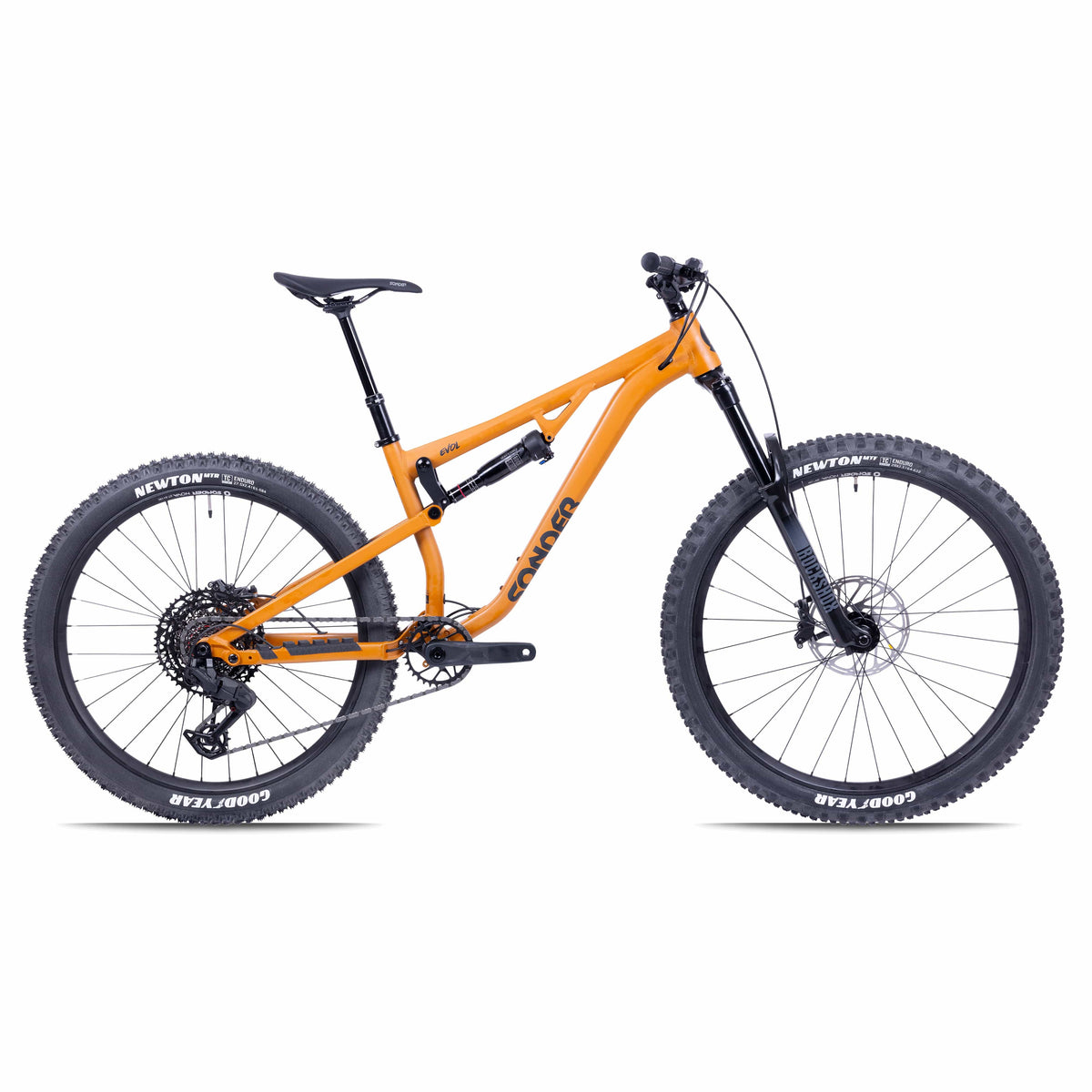

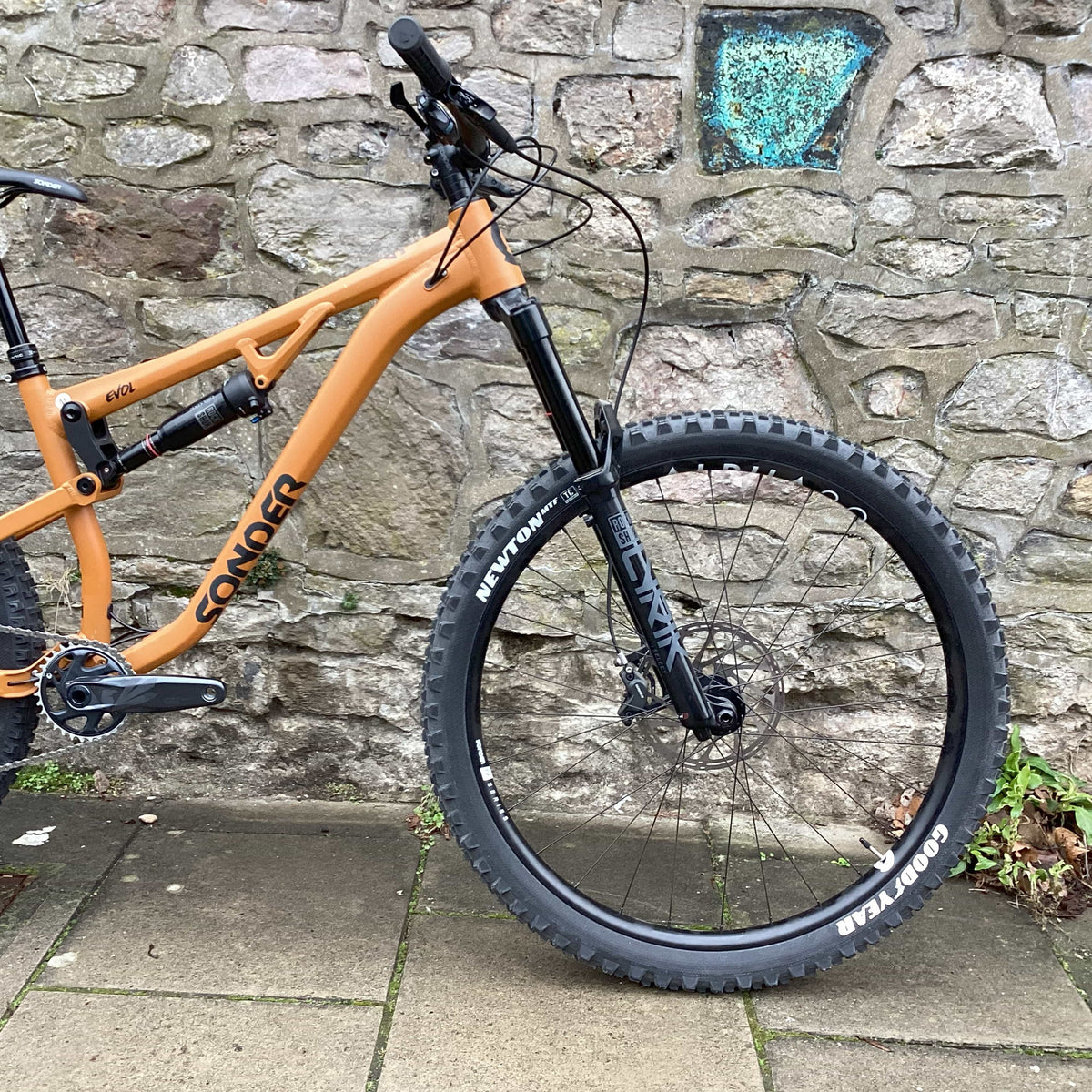

**Lead image represents the bike for sale, please see store pics for the actual bike.
Features
Goldilocks Geometry
Long, slack and low geometry gives a confidence inspiring and forgiving ride downhill.
Chainstay length progresses through the size range to maintain consistent weight distribution for riders of all heights.
Metric Shock Standard
Designed around metric shock sizing standard, with lengthened shocks and shorter strokes that increase bushing overlap for more smooth, supple, sensitive and reactive suspension action. We've worked with SRAM to produce a rear shock that's specifically tuned for the Evol - and made sure those benefits are felt across a wider range of rider size and weight.
160mm travel at the front and rear lets you carry higher speeds over rough ground and choose gnarlier lines on steeper downhill sections.
Horst link suspension design
The tried and tested Horst Link suspension design allows the suspension to stay active when braking. We've fine-tuned the suspension leverage curve to maximise performance on the downhill while maintaining efficient uphill pedalling - so no need for climb switches.
Business in the front
Evol has been designed from the ground up as a true mullet build. All the control and speed benefits of a 29er over rough ground, with improved handling, weight saving and tighter cornering thanks to the 27.5" rear wheel.
Clearance for up to 29 x 2.6" tyres up front and 27 x 2.6" at the back.
Universal Derailleur Hanger UDH
Keeping up with industry standards, Evol uses a UDH hanger. They're widely available so you can get rolling again sooner after any mid-ride mishaps!
The UDH also makes Evol compatible with the latest SRAM Transmission groupsets.
Internal Cable Routing
Internal routing in the front triangle makes for clean lines and tidy cables, with dampened foam liners for a quiet ride.
Geometry and Sizing
Sizing
| Size | Small | Medium | Large | X-Large |
| Rider Height | 5ft 2in - 5ft 7in (158-173cm) | 5ft 6in - 5ft 10in (170-177cm) | 5ft 9in - 6ft 2in (175-187cm) | 6ft 2in + (187cm +) |
| ST - Seat tube | 400 | 410 | 440 | 460 |
| ETT - Estimated top tube | 594.3 | 616.6 | 645.3 | 672.4 |
| HT - Head tube | 100 | 110 | 125 | 135 |
| HA - Head angle | 64.5 | 64.5 | 64.5 | 64.5 |
| AC - Axle to crown | 570 | 570 | 570 | 570 |
| SA - Seat angle | 76.3 | 76.3 | 76.3 | 76.3 |
| CS - Chainstay | 435 | 435 | 445 | 445 |
| BB - BB drop* | 13 | 13 | 13 | 13 |
| FO - Fork offset | 45 | 45 | 45 | 45 |
| WB - Wheelbase | 1119 | 1223.6 | 1257.8 | 1294 |
| SO - Stand over | 735 | 767 | 782 | 808 |
| RE - Reach | 435 | 455 | 480 | 505 |
| SK - Stack | 616.8 | 624.8 | 638.6 | 647.4 |
| BB* - Relative to rear axle centre | ||||
Frame Spec
| Weight: S: TBCkg; M: TBCkg; L: TBCkg; XL: TBCkg (plus shock 0.4kg) |
|---|
| Hydroformed and custom butted alloy frame tubing |
| Internal cable routing |
| Rear Shock: Rockshox Deluxe Select+ RT, 230x60mm |
| Horst link suspension layout |
| 160mm rear travel; 160mm fork travel |
| Clearance for up to 29 x 2.6" wide tyres front / 27.5 x 2.6 rear |
| 73mm BSA threaded bracket shell |
| UDH Boost 148 x 12mm rear thru-axle |
| 31.6mm seat tube, 34.9mm clamp |
| Headset: ZS44/28.6 top, ZS56/40 bottom |
| Seatpost insertion mm: S: 200 | M: 210 | L: 240 | XL: 260 |
