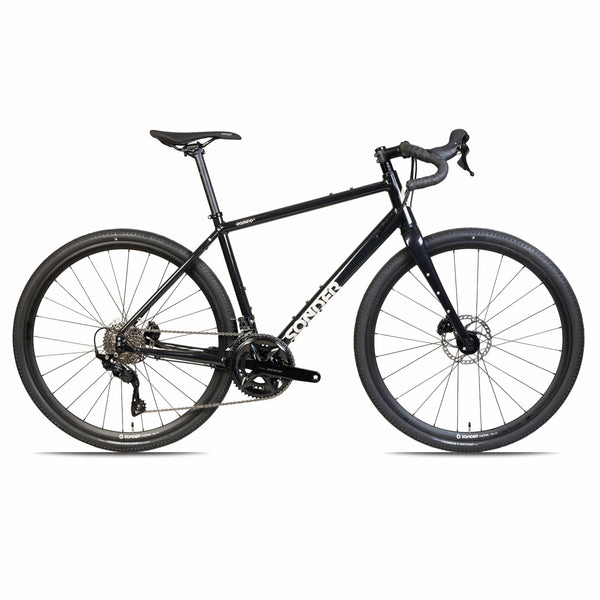

Camino Al 105

Photos for illustration purposes. Please check the bike spec for detailed component listings.

Camino Al 105

Award-winning gravel bike

£1,349

Aluminium Camino frame and carbon blade fork for multi-day expeditions, built with Shimano 105 groupset and class-leading components for round-the-world travel.

Read more

Read more

Sorry, this product isn't available at the moment.

Orderbook opens August 2022 for delivery in February 2023.

Description

Capable, tough and quick aluminium adventure bike for exploring the world.

At a glance

  • Shimano 105 R7000 11-speed groupset
  • Camino Carbon fork
  • Sonder Nova 700c wheelset
  • 6061 aluminium frame

Camino Al is built for those moments when the road turns into trail and the bridleway drops off into single track. Spritely and comfortable on the tarmac with enough in reserve to explore off-road trails, it transforms your riding experience and turns dead ends into possibilities.

..Read more

Infused with DNA from cyclocross, gravel, and adventure race bikes, the Camino’s relaxed geometry was designed for long day comfort, with a longer wheelbase, slacker head angle and lengthened headtube for a more natural riding position.A low bottom bracket and short chainstays make it agile through the corners whilst the slackened head angle inspires confidence when descending.

The aluminium frame is tough enough to take a knock or two, so you can lose yourself in the journey and push the technical envelope of your travel or even your commute. Effortlessly adaptable, the Camino is as proficient on your local trail as it is on the open road, with tyre clearance up to 700c x 50mm or 650b x 2.1" for that added traction and comfort on bumpier terrain.

Responsive and exhilarating even when loaded up with luggage; rack, bottle cage and mud guard mounts give you the option to pack up and pedal off on a self-supported ride whenever the feeling takes you. Triple cage mount on the top of the downtube allows for 2 different mounting positions for the bottle cage for extra bag clearance or to fit a Lug-Kage.

The 2 x 11 gearing offers a gear range that is wide enough to cope with any terrain, opening up the alpine passes to mere mortals with enough at the top end to cruise up on the flat. 2x builds give a wide gear range and keep the jumps between gears small.

Read less
Features

Gravel geometry

Tuned for long days with trail capabilty at its heart. The long wheelbase and 69° head angle make for a stable and confident ride, even over rough trails. Every size has been tuned for a 50-70mm stem so every rider gets direct and responsive steering.

Wide open tyre clearance

The Camino swallows huge tyres. Ride 700c x 50mm or 650b x 2.2” - that’s most mountain bike tyres covered.

Carbon monocoque fork

Lightweight, stiff and responsive. The Camino's full carbon fork gives direct steering and smooth braking. It's completely adventure ready with mudguard and rack mounts.

Full rack, guard and expedition mounts

Take anything anywhere. The Camino has mounts for everything you need - panniers, guards and extra mounts for adding cages to the forks. The downtube has triple cage mounts so you can set your bottle to be at a height for easy reach or lower to accommodate larger frame bags.

Internal Cable Routing

Clean lines and tidy cables thanks to fully guided internal routing. The Camino also has routing for a dropper seatpost.

Bottom bracket for the real world

A BSA threaded bottom bracket is super-durable and readily available, wherever you find yourself. So it’s not a pain in the bottom bracket!

Build Spec
Frameset
Frame:Camino Al Frame / 6061 aluminium
Fork:Camino Carbon / monocoque
Headset:FSA Orbit C-40-ACB
Groupset
Shifters:Shimano 105 R7020 / 2x / 11-speed / hydraulic
Brakes:Shimano 105 R7070 / hydraulic / flat mount
Rotors:Shimano RT66 / 160mm / 6-bolt
Front derailleur:Shimano 105 R7000 / braze-on
Rear derailleur:Shimano 105 R7000 / 11-speed / long cage
Chainset:Shimano 105 R7000 / 2x / 172.5mm / 50-34t
Cassette:Shimano 105 R7000 / 11-speed / 11-32t
Chain:Shimano HG601 / 11-speed
Bottom bracket:Shimano RS500 / BSA-threaded / 68mm
Wheelset
Wheels:Sonder Nova 700c
Tyres:Donnelly X'Plor MSO TL / 700c x 40mm / black
Tubes:WTB Inner Tube / 700c x 38-45mm
Finishing kit
Handlebars:Sonder Bomber
Stem:Sonder Storc
Seatpost:Sonder Seatpost / 31.6mm
Saddle:Sonder Abode
Bar tape:Sonder Reels / black
Weight
Frame:S: 1.9kg; M: 2.0kg; L: 2.0kg; XL: 2.1kg
Build:S: TBC; M: TBC; L: TBC; XL: TBC
Pedals not included with full builds
Geometry and Sizing

Sizing

Generally we recommend:
Small: Riders between 5ft 2in and 5ft 7in
Medium: Riders between 5ft 6in and 5ft 10in
Large: Riders between 5ft 9in and 6ft 2in
X-Large: Riders 6ft 2in and over

You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

Size Small Medium Large X-Large
ST - Seat tube 460 490 520 550
TT - Top tube 536 562 592 629
HT - Head tube 150 170 190 210
HA - Head angle 69 69 69 69
SA - Seat angle 74.5 74 74 73
CS - Chainstay 435 435 435 435
BB - BB drop 73 73 73 73
FO - Fork offset 50 50 50 50
WB - Wheelbase 1051 1073 1105 1132
SO - Stand over 752 773 795 815
RE - Reach 380 395 420 440
SK - Stack 563 582 600 619

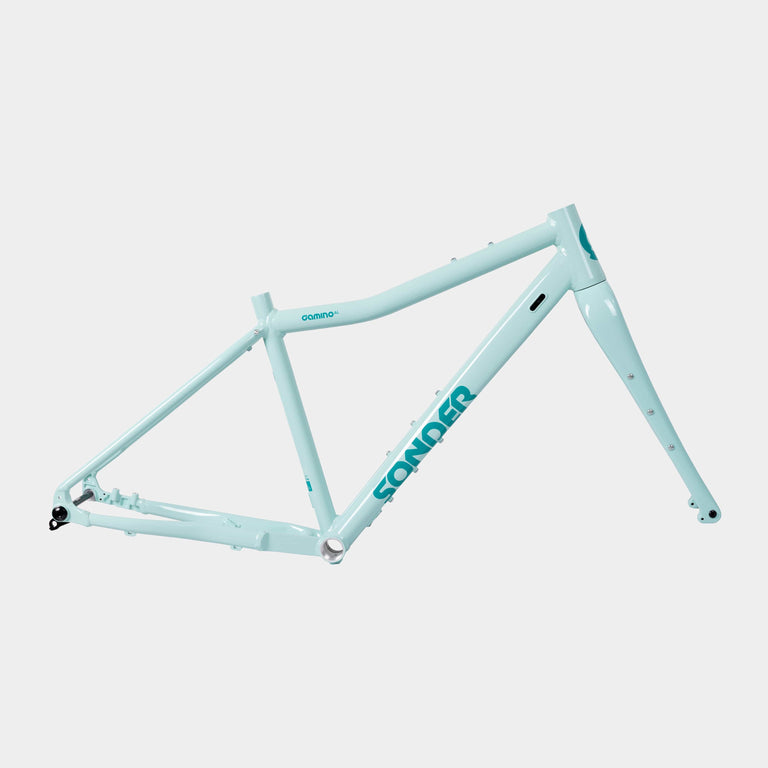

Frame Spec
Lightweight, durable and strong aluminium frame.
Weight: S: 1.9kg; M: 2.0kg; L: 2.0kg; XL: 2.1kg
6061 Aluminium
One piece carbon monocoque fork
Seatpost diameter: 31.6mm
Seat tube OD 34.9mm
Headset: IS42/28.6 | IS52/40
Disk brake only
Mud guard and pannier rack mounts 700 x 50mm or 650b x 2.2” tyre clearance 12mm bolt through axles at both ends
Reviews
Kudos
Cycling Weekly review Camino Al

If you’ve made it this far, it’s clear that I’ve very much enjoyed my time on the Camino AL. So much so, that I’m seriously considering adding one to my stable, that's how good this bike is.

Read the full review here

Author: Will Thompson
Singletrack review the Sonder Camino Al
With its flexible wheel size options and plenty of tyre clearance, there’s scope for building the Sonder Camino AL however you want it. However, as built, this Rival 1 option seems to me to be a great fit straight out the box. If you can’t fork out for this higher end build kit straight away, the ride quality is such that the frame makes a good candidate for later upgrades, and the handling is simply excellent. Unless your heart is set on steel, titanium, or carbon, I can’t think of a reason why you wouldn’t want this bike. I do want this bike, and I’m genuinely sorry to be sending it back.
Author: Amanda Wishart - Singletrack
