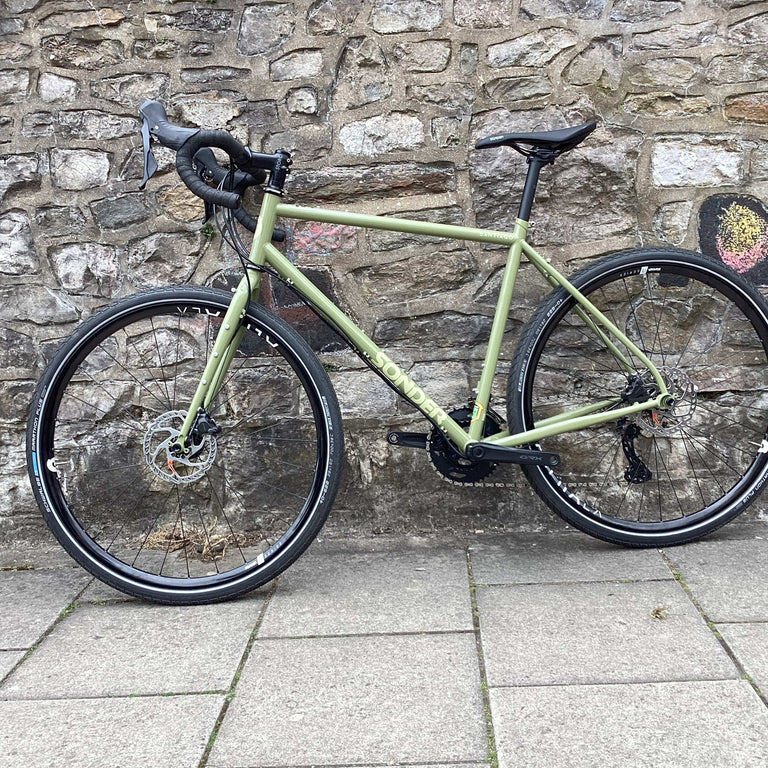

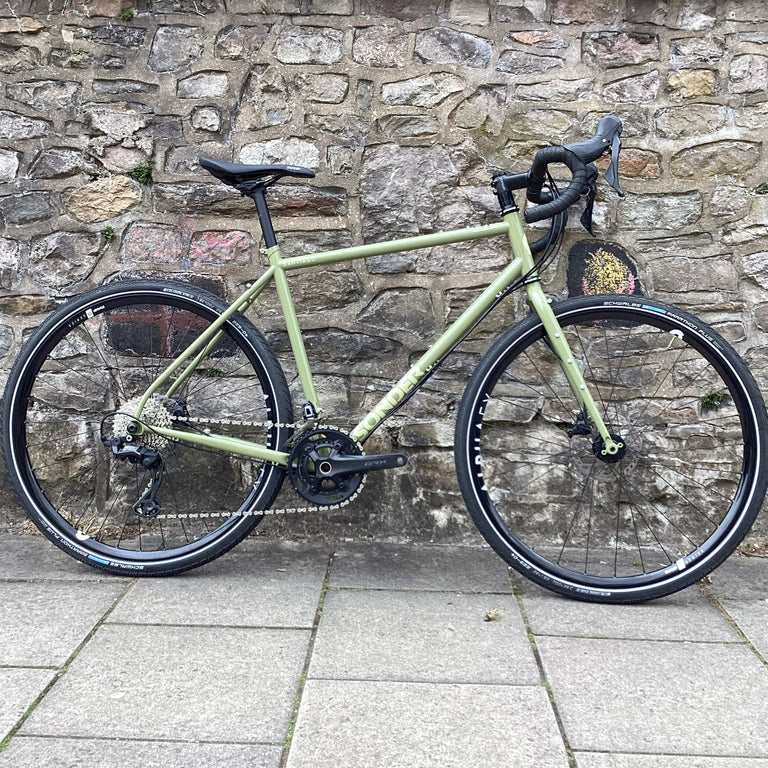

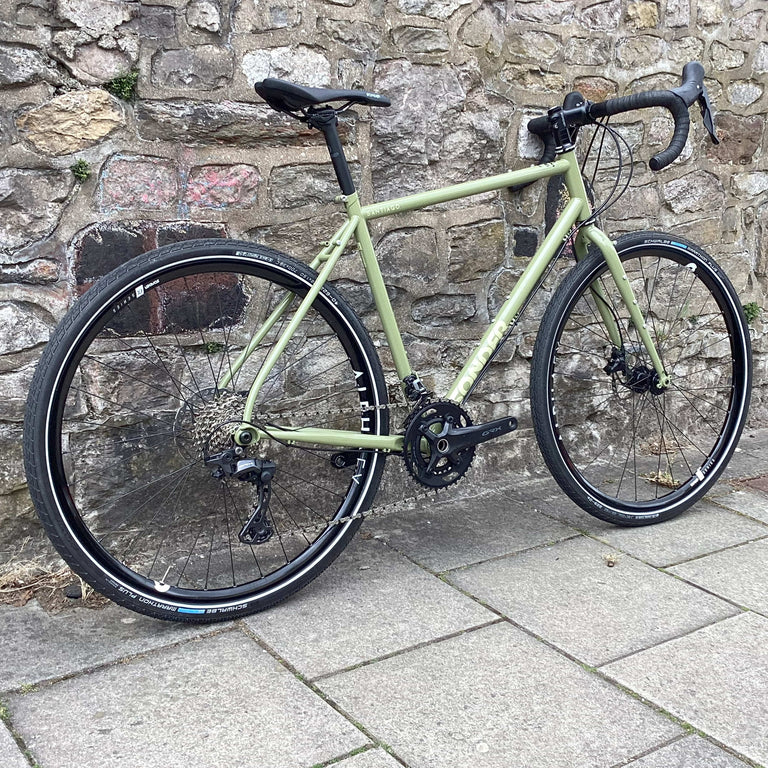

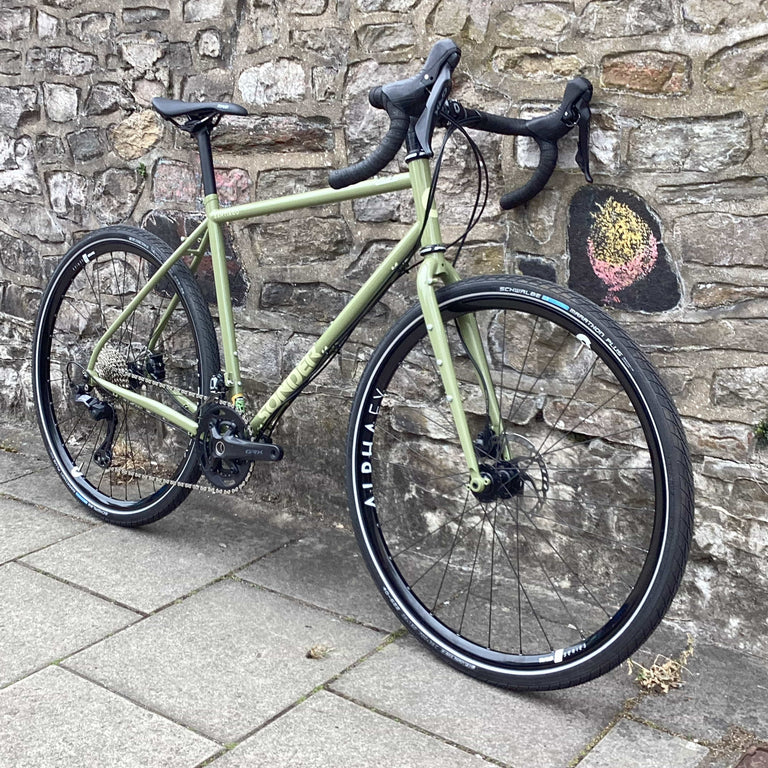

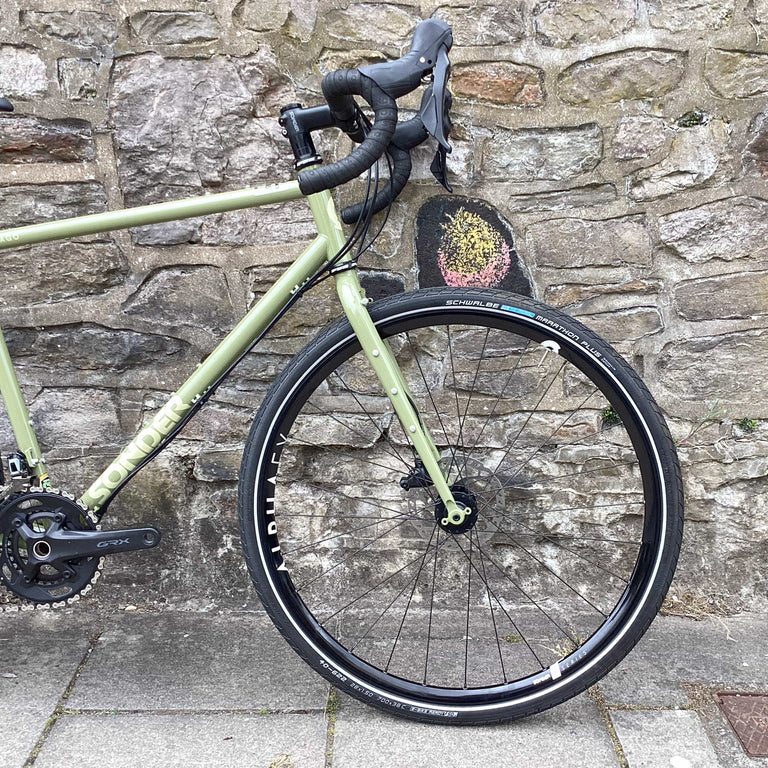

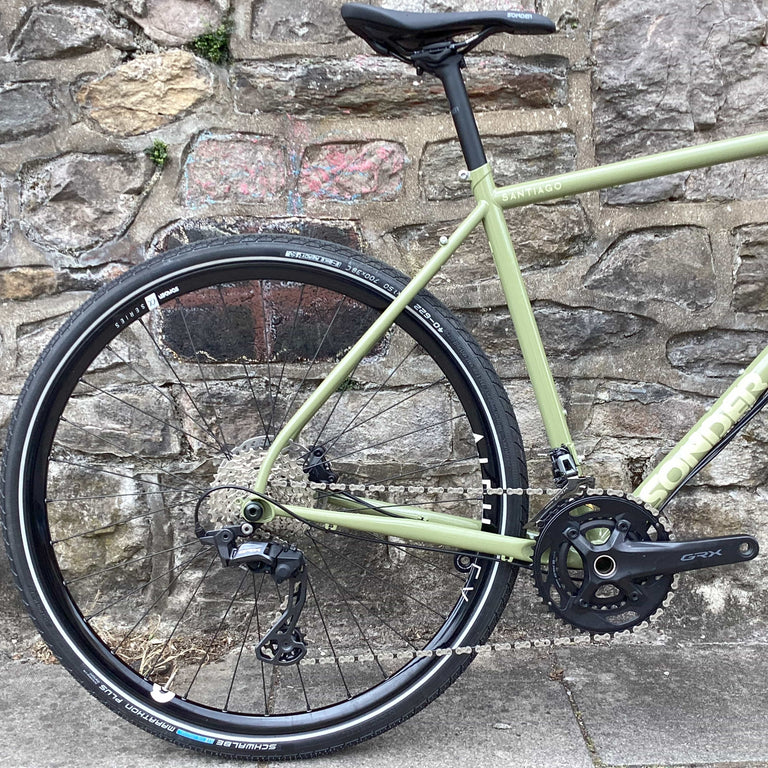

Santiago / Large Reynolds steel touring bike
£1,299 £1,799
Details
Santiago knows its heritage; cold-worked, air hardened steel is steeped in the history of long distance riding. But with bang up-to-date geometry, Santiago has a refreshing feel that you know will be good for years to come: 450 mm chainstays, 1.1 m wheelbase, 71 degree head angle, a fork rake of 55 and generous tyre clearance. This makes for a truly comfortable, fast, assured bike, both in its own right (audax slaying, winter riding) or when racked up for multi-month adventures.
At a Glance
- Shimano GRX RX610 12-speed groupset
- Santiago Steel fork
- Sonder Nova 700c wheelset
- Reynolds 631 steel frame
**Lead image represents the bike for sale, please see store pics for the actual bike.
*Demo bikes are not supplied with pedals.
Features
Reynolds 631 steel tubing
Durable, smooth and assured on those multi-month trips Reynolds 631 steel is an excellent material for round-the-world touring where you’re completely dependent on your bike. We’d be surprised if you needed to get your frame repaired, but it’s comforting to know that finding a steel welder in the middle of nowhere is far easier than getting your alloy frame repaired.
Traditional bike, contemporary geometry
Santiago’s takes classic road bike geometry as a starting point, with a longer wheelbase and higher stack height for a more comfortable riding position and assured ride, whether you’re travelling light or fully loaded up.
Generous tyre clearance
Clearance for up to 650b x 47 mm or 700c x 37 mm tyres that make your ride more comfortable and give better grip on the bitumen as you corner.
Full traditional mounts
With full rack and guard mountains, 3 sets of bottle cage bosses and extra cage mounts on the fork, Santiago can handle being fully loaded up.
Geometry and Sizing
Sizing
Generally we recommend: Small: Riders between 5ft 2in and 5ft 7in (157-170cm) Medium: Riders between 5ft 6in and 5ft 10in (167-177cm) Large: Riders between 5ft 9in and 6ft 2in (175-187cm) X-Large: Riders 6ft 2in and over (187cm)
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Stem Length | 80mm | 90mm | 100mm | 110mm |
| Bar Width | 400mm | 420mm | 440mm | 460mm |
| ST-Seattube | 460 | 500 | 540 | 580 |
| TT-Toptube | 532 | 554.1 | 571.7 | 582.3 |
| HT-Headtube | 120 | 145 | 170 | 190 |
| HA-Headangle | 72 | 72 | 72 | 72 |
| SA-Seatangle | 73.5 | 73.5 | 73.5 | 73.5 |
| CS-Chainstay | 420 | 420 | 420 | 420 |
| BB-BBdrop | 70 | 70 | 70 | 70 |
| FO-Forkoffset | 50 | 50 | 50 | 50 |
| WB-Wheelbase | 991.2 | 1018.9 | 1027.2 | 1038.2 |
| SO-Standover | 749.1 | 779.2 | 812.2 | 842.5 |
| RE-Reach | 375 | 390 | 400 | 405 |
| SK-Stack | 528 | 553.9 | 579.5 | 598.6 |
Frame Spec
Durable, comfortable, Reynolds steel frame
| Weight (Frame and Fork): S: 3.3kg; M: 3.5kg; L: 3.7kg; XL: 3.9kg |
| Reynolds 631 steel, cold worked, air hardened seat tube, top tube and down tube |
| Chromoly fork and read frame |
| 68 mm BSA threaded BB |
| Straight headtube (EC34) to fit 1 1/8” fork (headset not included) |
| 100 mm front, 142 mm rear bolt-through dropouts |
| Flat mount disc brake compatible (160mm front, 140mm rear) |
| Full rack/guard mounts |
| Tyre clearance for 700 x 37 mm, 650b x 47 mm tyres |
