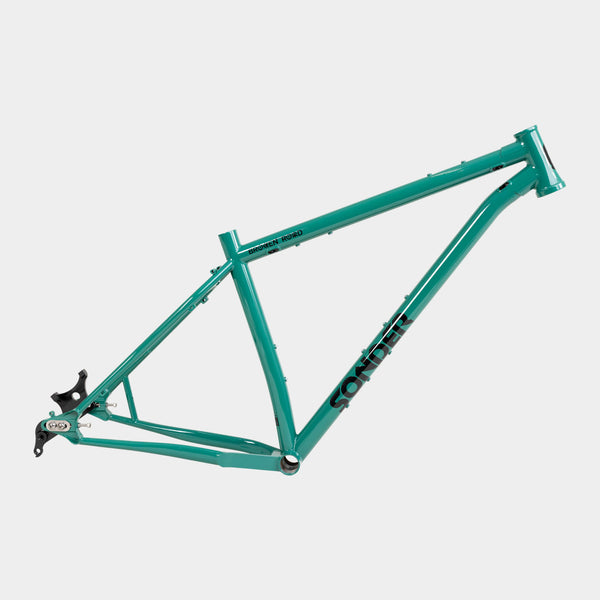

    Broken Road ST Frame

    Wilderness trail bike frame

    £699

    or from £12 /month V12 logo

    1

    Select Options

    2

    Customize

    3

    Select Accessories

    Reset

    Buy Now. Deliveries from 31 March.

    1

    Select Options

    Edit

    • Size
    • Colour

    Sizing

    It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

    SizeSmallMediumLargeX-Large
    Rider Height

    5ft 2in - 5ft 7in

    (158-173cm)

    5ft 6in - 5ft 10in

    (170-177cm)

    5ft 9in - 6ft 2in

    (175-187cm)

    6ft 2in +

    (187cm +)

    ST - Seat tube410440465495
    ETT - Estimated top tube588.9613.1642.4671.5
    HT - Head tube105120135150
    HA - Head angle67676767
    AC - Axle to crown*485485485485
    SA - Seat angle73737373
    CS - Chainstay440-460440-460440-460440-460
    BB - BB drop60606060
    FO - Fork offset44/5144/5144/5144/51
    WB - Wheelbase1116.61142.21173.21204
    SO - Stand over735767782808
    RE - Reach410430455480
    SK - Stack585598.8612.6626.4
    AC* - 100mm fork sagged 20%
    • Size:

    • Colour:

    2

    Customize

    Edit

    Every Sonder bike is built to order so tell us exactly how you want it. Make any changes you want from the standard build and when you're done, just hit “Add to Bag” at the bottom of the page.

    Forks

    No Fork
    No Fork .

    +£0.00

    Sonder Pathfinder
    Sonder Pathfinder Black

    +£339.99 +£269.99

      3

      Select Accessories

      Edit

      Headset

      No Headset
      No Headset

      +£0.00

      FSA Orbit C-40-ACB Headset / 7.8mm Spacer
      FSA Orbit C-40-ACB Headset / 7.8mm Spacer

      +£29.99

        Initial Price

        Broken Road ST Frame / Select a frame...
        £699.00

        Extras

        £0.00

        Total Price

        £699.00
        Buy Now. Deliveries from 31 March.

        Steel wilderness hardtail for big mountain days and fully loaded adventures off the beaten track. It's the perfect choice to tackle long distance point-to-points like the Tour Divide or the Atlas Mountain Race, eating up off-road miles day after day.

        High-quality 4130 chromoly steel tubing gives that coveted steel ride feel; lively and vibration-absorbing with all the capability of modern trail geometry. Optimised strengthening gussets at the headtube and bottom bracket add stiffness where its needed without adding excess weight - this helps maintain handling when carrying heavier frame bags or panniers.

        Optimised for use with 29" tyres; soak up uneven ground and enjoy a confidence-inspiring, stable ride at higher speeds. A long wheelbase and relaxed head angle strike the perfect balance between comfortable uphill grinding and hair-raising downhill whooping and make for efficient all-day riding over rough terrain.

        Build your dream rig with a full set of expedition rack mounts, we've designed the Broken Road to be loaded up with kit and pointed towards remote places. Highly durable and ultimately repairable; steel frames can take heaps of abuse even when you're carrying everything but the kitchen sink - offering peace of mind on multi-day trips and more technical trails.

        AT A GLANCE

        4130 Chromoly frame
        Optimised for 29 and 27.5" wheels
        Full set of rack and cage mounts
        Routing for dropper post

        Features

        Trail bike geometry

        The long wheelbase combines precision and control, giving you the flexibility to adjust riding position easily. A relaxed head angle lets you cover rough ground efficiently, and strikes the perfect balance between comfortable uphill grinding and hair-raising downhill whooping.

        Traditional material. Modern Design

        High-quality 4130 chromoly steel gives you that coveted steel ride feel with all the benefits of modern trail geometry. Balance strength and stiffness with the lively, vibration absorbing nature of steel for comfortable all-day riding over rough terrain. Highly durable and ultimately repairable; steel frames can take heaps of abuse even when fully loaded with bags and kit, ideal for off-the-beaten-track adventures.

        Huge tyres. Endless grip

        Designed for optimum use with 29" wheels with clearance for 2.6" tyres. Soak up uneven ground and enjoy a confidence-inspiring, stable ride at higher speeds. Ideal for longer mile-munching day rides and multi-day off-road adventures. Broken Road can also take 27.5+ wheels with clearance for up to 3" inch tyres.

        Build your dream rig

        Triple mounts on the top and bottom of your downtube let you position your bottles high for easy reach, low to fit larger half-frame bags, or under the down tube to accommodate a custom Stingray full-frame bag. There's also a bottle mount on the seat tube and two sets of accessory mounts on the top tube, plus rear pannier mounts for those longer expeditions.

        Adjustable sliding dropouts

        Adjustable sliding dropouts give you the freedom to choose between single speed or derailleur setups. They'll also help you fine tune your setup to match your chosen wheel size and ride style.

        Internally routed cables

        Hidden cables keep the lines clean, and maintenance easy thanks to fully guided routing. Broken Road also has routing for a dropper seatpost.

        Geometry and Sizing

        Sizing

        It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

        SizeSmallMediumLargeX-Large
        Rider Height

        5ft 2in - 5ft 7in

        (158-173cm)

        5ft 6in - 5ft 10in

        (170-177cm)

        5ft 9in - 6ft 2in

        (175-187cm)

        6ft 2in +

        (187cm +)

        ST - Seat tube410440465495
        ETT - Estimated top tube588.9613.1642.4671.5
        HT - Head tube105120135150
        HA - Head angle67676767
        AC - Axle to crown*485485485485
        SA - Seat angle73737373
        CS - Chainstay440-460440-460440-460440-460
        BB - BB drop60606060
        FO - Fork offset44/5144/5144/5144/51
        WB - Wheelbase1116.61142.21173.21204
        SO - Stand over735767782808
        RE - Reach410430455480
        SK - Stack585598.8612.6626.4
        AC* - 100mm fork sagged 20%
        Frame Spec
        Weight: S: TBC kg; M: TBC kg; L: TBC kg; XL: TBC kg
        4130 chromoly steel frame
        148 mm boost thru axle standard
        Post mount brake on chainstay, 160mm rotor as standard
        Triple bottle cage mounts on top and bottom of downtube
        Pannier rack mounts
        Internal cable routing for rear brake, rear mech and dropper seatpost.
        Not compatible with a front mech
        Headset: IS42/28.6 Top, IS52/40 Bottom
        Seatpost: 31.6 mm
        Seat tube OD: 34.9 mm
        73 mm BSA BB standard
        Max tyre width on 29": 2.6"
        Max tyre width on 27.5": 3"
        Chainline: 52mm
        Max chainring size: 36 tooth
