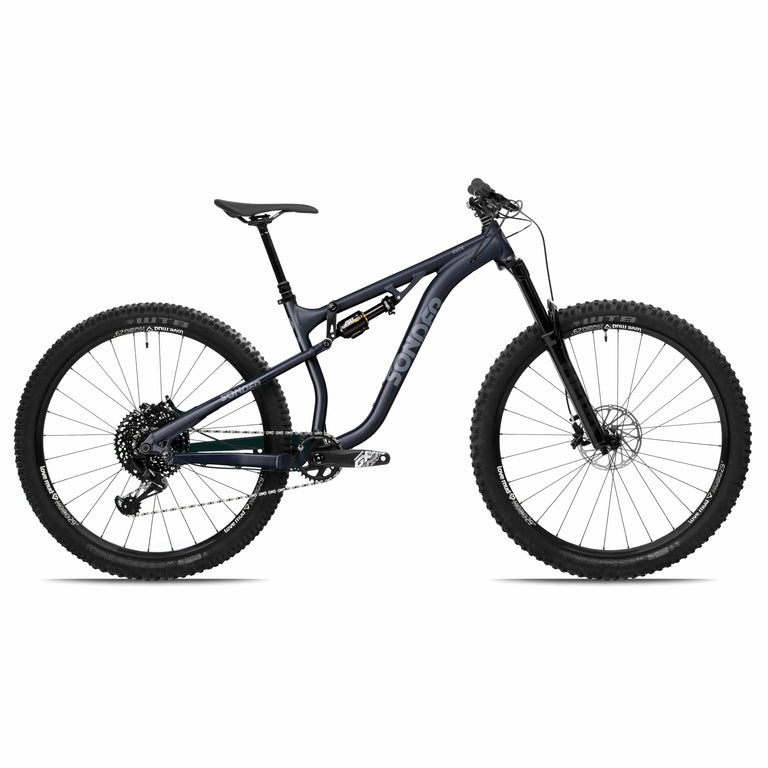

Super fast, super stiff, and all-day pedalable. For local trails, trail-centres, hike-a-bike and enduro duty. Evol keeps coming back for more.
The Evol was designed and tested in the UK – in every season. We’ve chosen custom butted 6061 aluminium tubing for a perfect mix of weight, stiffness and durability. With long (but not ultra-long), low and slack geometry, Evol inspires confidence when descending at high speeds while the low bottom bracket means you can throw it hard into every corner. It pedals well too as the geometry gives a comfortable neutral riding position, keeping your weight central so you won’t waste energy on the uphill slogs (save it for the descent!).
We’ve been obsessive when it comes to the little details that matter too. There’s internal cable and stealth dropper routing, clearance for 29 x 2.6 tyres and proper space for a bottle.
Simply put, the Evol is our dream built into a custom-butted alloy reality. An enthusiastic and capable Enduro-lite trail bike designed for enhanced fun-factor as you’re ragging it round the trail. You could take the Evol to an Enduro race, but it’s equally at home on a long day at the local trails.
Long, slack and low geometry for a confidence inspiring and forgiving ride. Pedals well too, with more neutral geometry keeping your weight central on the climbs.
Designed around metric shock sizing standard, with lengthened shocks and shorter strokes that increase bushing overlap for more smooth, supple, sensitive and reactive suspension action.
The tried and tested Horst link suspension design allows the suspension to stay active when braking.
Clearance for up to 29 x 2.6in tyres.
Internal routing in the front triangle for clean lines; threaded bottom bracket shell.
|Frame:||Evol Frame | 6061 aluminium|
|Fork:||RockShox 35 Silver R | 150mm (travel)|
|Shock:||RockShox Deluxe Select+ RT | 210 x 55|
|Headset:||FSA Orbit C-40-ACB|
|Shifters:||SRAM SX Eagle Trigger | 1x | 12-speed|
|Brakes:||SRAM Guide T | Hydraulic | Direct mount|
|Rotors:||Avid Centreline | 200mm (front), 180mm (rear) | 6-bolt|
|Rear derailleur:||SRAM SX Eagle | Long cage | 12-speed|
|Chainset:||SRAM SX Eagle | 170mm | 32t|
|Cassette:||SRAM PG1210 | 11-50t | 12-speed|
|Chain:||SRAM NX Eagle | 12-speed|
|Bottom bracket:||SRAM PowerSpline | 73mm | 118mm|
|Wheels:||Sonder Nova 29"|
|Front tyre:||WTB Vigilante | Light High Grip | 29 x 2.5"|
|Rear tyre:||WTB Trail Boss | Comp | 29 x 2.4"|
|Tubes:||WTB | 29 x 2.2-2.4"|
|Handlebars:||Sonder Aspect Riser | 78cm|
|Stem:||Sonder Piskie | 35mm|
|Seatpost:||Sonder Seatpost | 31.6mm|
|Saddle:||Sonder Abode | 158mm | Black|
|Grips:||Sonder Clutch | Black|
|Frame:||S: 1.97kg; M: 2.0kg; L: 2.1kg; XL: 2.14kg|
|Build:||S: 12.4kg; M: 12.65kg; L: 13.8kg; XL: 13.9kg|
|Pedals not included with full builds|
It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
Generally we recommend: Small: Riders between 5ft 2in and 5ft 7in Medium: Riders between 5ft 6in and 5ft 10in Large: Riders between 5ft 9in and 6ft 2in X-Large: Riders of 6ft 2in +
|ST - Seat tube||400||425||445||470|
|ETT - Effective Top Tube||586||606||634||661|
|HT - Head tube||95||95||105||110|
|HA - Head angle||65||65||65||65|
|SA - Seat tube angle||75.5||75.5||75.5||75.5|
|CS - Chainstay||445||445||445||445|
|BB - BB drop||30||30||30||30|
|FO - Fork offset||42||42||42||42|
|WB - Wheelbase||1193||1213||1242||1270|
|SO - Standover||809||812||822||833|
|RE - Reach||435||455||480||505|
|SK - Stack||604||605||614||618|
|Weight (inc rear shock): S: 3.3kg; M: 3.4kg; L: 3.5kg; XL: 3.6kg|
|Hydroformed and custom butted alloy frame tubing|
|Internal cable routing|
|Rear Shock: Rockshox Deluxe Select+ RT, 210x55mm|
|Horst link suspension layout|
|140mm rear travel; 150mm fork travel|
|Clearance for up to 29 x 2.6" wide tyres|
|73mm BSA threaded bracket shell|
|148 x 12mm rear thru-axle|
|31.6mm seat tube, 34.9mm clamp|
|IS42/28.6 | IS52/40 headset (frame and rear shock does not come with headset)|
