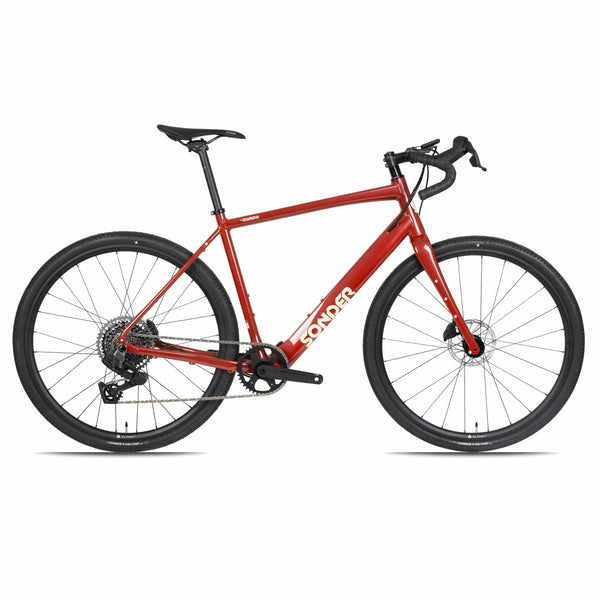

  • El Camino Gen 2 Rival1 in Red
  • El camino Gen 2 Electric Gravel Bike in action
  • El Camino Gen 2 Rival1 in Black

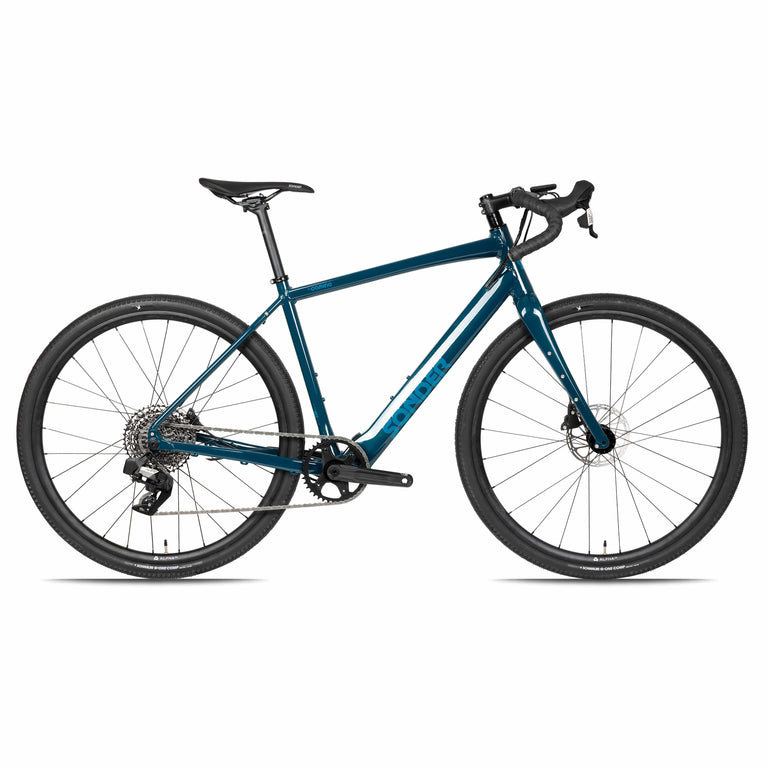

  • El Camino Gen 2 Apex1 in Blue
  • El Camino Gen 2 Electric Gravel Bike Charging Port
  • El Camino Gen 2 Electric Gravel Bike Hub Motor
    • Special Offer

    Sonder El Camino

    El Camino Rival AXS XPLR

    £3,099 £3,399

    The electric version of our award-winning Camino gravel bike. The latest Kynamic eVO250 hub-drive system gives a smooth whole-bike riding experience, flowing in assistance to match your efforts for a natural ride feel. Ideal for mixed terrain, multi-day adventures. More miles, more climbs, more fun.
    Built to Order. Be Riding Next Week

    1

    Select Options

    • Size
      Please select an available size
    • Colour
      • El Camino Gen 2 Apex1 in Blue
      • El Camino Gen 2 Apex1 in Red
      • El Camino Gen 2 Apex1 in Black
      Please select an available colour
    • Size:

    • Colour:

    • Customise and buy now. Deliveries from 1st June

    Need help choosing a bike or technical advice?

    • Open a Live Chat
    • Pop into a store 7 days a week
    • Call a Sonder Customer Hero on +44 (0)1773 417006 7 days a week
    • Email us at support@alpkit.com
    • Find out how much you can save on the cycle to work scheme visit cyclescheme.co.uk

    Explore more. El Camino is the electric version of our award-winning Camino gravel bike.


    Progressive geometry

    With the same long-distance capabilities as its non-electric counterpart, El Camino doesn't compromise agility, speed or comfort. It's confidence-inspiring over the rough stuff and handles well whether loaded or unloaded.


    Born for Britain's B-roads and bridleways, it's ideal for the mixed terrain of multi-day adventures - think the 350km long King Alfred or 230km West Kernow Way.




    More miles, more climbs, more fun.

    El Camino is to explore more. More miles, more climbs, more fun.

    The stand-out feature is its smooth whole-bike riding experience thanks to the latest Kynamic eVO250 system. El Camino has a torque sensor in the bottom bracket gauging pedal power and flowing in assistance to match your efforts for a natural ride feel.




    Lightweight

    Weighing just 3kg more than the non-electric Camino, it's lightweight enough to lift over a locked gate, load on a roof rack, or carry to your hotel room at your chosen overnight stop.




    Powerful driving force

    El Camino is powerful. Its integrated control panel comes with 3 power settings. Choose your heart rate as you ride: low power for all-day continual assistance, middle power for a sweat-free ride to work, or max power for a 20-mile blast around a local loop.

    We balance weight, ride feel and performance with a 250Wh battery housed in the downtube and a 250W rear hub motor to give 38Nm of driving force and a real-life range of up to 70km of assisted riding. Enough for long day rides without significant weight penalty.

    The battery complies with all US and EU regulations and does not contain minerals from conflict zones.

    On a mixed terrain ride we've achieved 70km from the built in battery using the lowest power assist setting, based on this, with the addition of the 175Wh range extender that fits to a standard bottle cage mount a range of 120km is entirely possible.

    Using the higher power settings will drastically affect range, under constant use in the highest power setting we expect to get a range of around 20km, ideal for that quick commute or blast after work. Various factors can affect range, including temperature, terrain and rider/luggage weight, the figures stated above are guidelines.




    Smooth ride feel

    El Camino is easy to ride unpowered. The lightweight hub drive motor uses Hall sensor technology which eliminates drag and lets the motor spin freely above the assistance limit, giving the feel of a normal gravel bike when riding unassisted at faster speeds. No need to hover at the assistance threshold for the whole ride, saving battery and making for a smoother, more natural ride feel.

    El Camino is designed to invoke a joy-filled ride with power on and off, unlike other e-bikes. UK and EU law states that electric power can only assist up to 15.5mph, so we've obsessed over the details to create a bike that doesn't hold you back on speed.




    Destined for adventure

    El Camino has ample tyre clearance of up to 50mm and comes with Alpha i25 wheelsets with 12mm bolt-through axles. We build the wheels ourselves to our exacting standards, with strong Sapim e-bike rated spokes - 28 front and rear on eyeleted rims. A UDH mount means you can choose from a wide range of groupsets, including SRAM's latest range of full-mount drivetrains.

    El Camino boasts multiple bottle cage and rack mounts for unlimited bikepacking configurations, and internal cable routing completes the signature aesthetic of our Camino family.








    Features

    Award winning Camino progressive geometry

    El Camino shares the same progressive geometry as our award-winning Camino. Long and low; it is agile, quick and comfortable and made with 6061 heat treated aluminium. El Camino is adventure ready with 50mm tyre clearance and internal cable routing, plus multiple bottle cage and rack mounts for unlimited bikepacking options.

    Hub drive: made for road and gravel

    Kynamic TA250S hub drive technology is designed for gravel and road. Reliable and serviceable, it pushes you along without the wear to the chain, derailleurs or cassettes that can be a feature of some mid-drive systems. Hall sensor technology lets the motor spin freely above the assistance limit, giving the feel of a normal gravel bike when riding unassisted at faster speeds. No need to hover at the assistance threshold for the whole ride, saving battery and making for a smoother, more natural ride feel.

    Kynamic eVO250 system

    Kynamic is a billion-dollar bike business with warehousing in Europe that can provide spares and replacement parts across Europe within 48 hours should it be necessary. The system is serviceable by Sonder and most, if not all, local bike shops. The 250Wh battery housed in the downtube and a 250W rear hub motor give 38Nm of driving force and a real-life range of up to 70km of assisted riding. Enough for long day rides while still being light enough to lift over a gate or into your van. The battery complies with all US and EU regulations and does not contain minerals from conflict zones. A range of over 120km is realistic with the 175Wh range extender which mounts in place of your down tube bottle cage.

    Bar mounted control panel

    The bar mounted control panel has a 2.0" OLED display with separately mounted control buttons. This shows your current speed, average speed, max speed, ride time, ride distance, odometer. A simple menu lets you toggle display options, change units between mph/kmph, and shows battery level while on the move. Large 'blip' controls are easy to use with cold hands or gloves and can be positioned where you want them on the bars; letting you navigate the menus safely as you ride.

    Please note: Flat bar builds use a 1.3" all-in-one console with integrated controls allowing one-handed use.

    Alpha i25 rear hub drive wheel system

    El Camino comes with Alpha i25 wheelsets as standard. We build the wheels ourselves in the UK to our exacting standards; with Sapim strong e-bike rated spokes - 28 front and rear on eyeleted rims. Compatible with Shimano HG L, Microspline and SRAM XDR freehubs - and now with a UDH mount - means you can choose from a wider range of groupsets, including SRAM's latest range of full-mount drivetrains. For those running a regular drivetrain, UDH hangers are widely available so you can get rolling again sooner after any mid-ride mishaps!

    Build Spec
    Frameset
    Frame:El Camino Frame
    Fork:El Camino Carbon | Monocoque
    Headset:FSA Orbit C-40-ACB
    Groupset
    Shifters:SRAM Rival E1 | Hydraulic
    Brakes:SRAM Rival E1
    Rotors:SRAM Centerline | 160mm (front), 160mm (rear) | 6-bolt
    Rear Derailleur:SRAM Rival AXS XPLR | 13-speed
    Crank Arms:FSA CK-762 | 170mm
    Chainring:Narrow Wide 40t Chainring
    Cassette:SRAM XG1351 | 10-46t | 13-speed
    Chain:SRAM Rival | 13-speed
    Bottom Bracket:Kynamic E-Bike Torque Sensor Gen 2 / Dual Side / T47 / ISIS
    Wheelset
    Wheels:Sonder Alpha I25 Gravel UK Made
    Tyres:Schwalbe G-One K-Guard Comp | 700-45 | Black [Tubeless Upgrade: Schwalbe G-One Performance TLE | 700-45 | Bronze]
    Tubes:WTB | 700c x 38-45mm
    Finishing kit
    Handlebars:Sonder Bomber | 56cm
    Stem:Sonder Storc
    Seatpost:Sonder Seatpost | 27.2mm
    Saddle:Sonder Abode
    Tape:Sonder Reels | Black
    Drive System
    Motor:Kynamic Hub Drive | 38Nm | 36V/250W
    Battery:Kynamic E-Bike Battery Gen 2 / InTube / 248Wh
    Controller:Kynamic E-Bike Controller Gen 2 | With Handlebar Remotes
    Weight:
    Build:S: TBC M: TBC L: TBC XL: TBC
    Pedals not included with full builds
    Specifications are subject to change without notice
    Geometry and Sizing

    Sizing

    Generally we recommend:

    X-Small: Riders between 4ft 10in and 5ft 3in (147-160cm)
    Small: Riders between 5ft 2in and 5ft 7in (158-173cm)
    Medium: Riders between 5ft 6in and 5ft 10in (170-177cm)
    Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
    X-Large: Riders 6ft 2in and over (187cm +)


    You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

    SizeX-SmallSmallMediumLargeX-Large
    Rider height

    4ft 10in - 5ft 3in

    (147-160cm)

    5ft 2in - 5ft 7in

    (158-173cm)

    5ft 6in - 5ft 10in

    (170-177cm)

    5ft 9in - 6ft 2in

    (175-187cm)

    6ft 2in +

    (187cm +)

    ST - Seat tube430460490520550
    ETT - Estimated top tube521.2536.4562.1592.4625.3
    HT - Head tube130150170190210
    HA - Head angle6969696969
    AC - Axle to crown395395395395395
    SA - Seat angle74.574.5747473
    CS - Chainstay440440440440440
    BB - BB drop7373737373
    FO - Fork offset
    WB - Wheelbase1033.71056.71078.811111138.2
    SO - Stand over 765.9773.9812.4834.7
    RE - Reach370380395420440
    SK - Stack545.2563.9582.6601.2616.9
    Frame Spec

    Lightweight, durable and strong aluminium gravel bike frame.

    Weight: S: TBC kg; M: TBC kg; L: TBC kg; XL: TBC kg; (Plus fork: 0.5kg)
    6061 Aluminium
    One piece carbon monocoque fork (Cage mounts on carbon fork designed for 2kg maximum load)
    Seatpost diameter: 27.2mm
    Seat tube OD 31.9mm
    Headset: IS42/28.6 | IS52/40
    Bottom Bracket: T47
    Disc brake only
    Mudguard, bottle and pannier rack mounts
    700 x 50mm or 650b x 2.2” tyre clearance
    Front and Rear: 12mm bolt through axles

    Your actual build date will depend on additional components you specify and from receipt of full payment. For any queries contact our Sonder team on 01773 417006.
